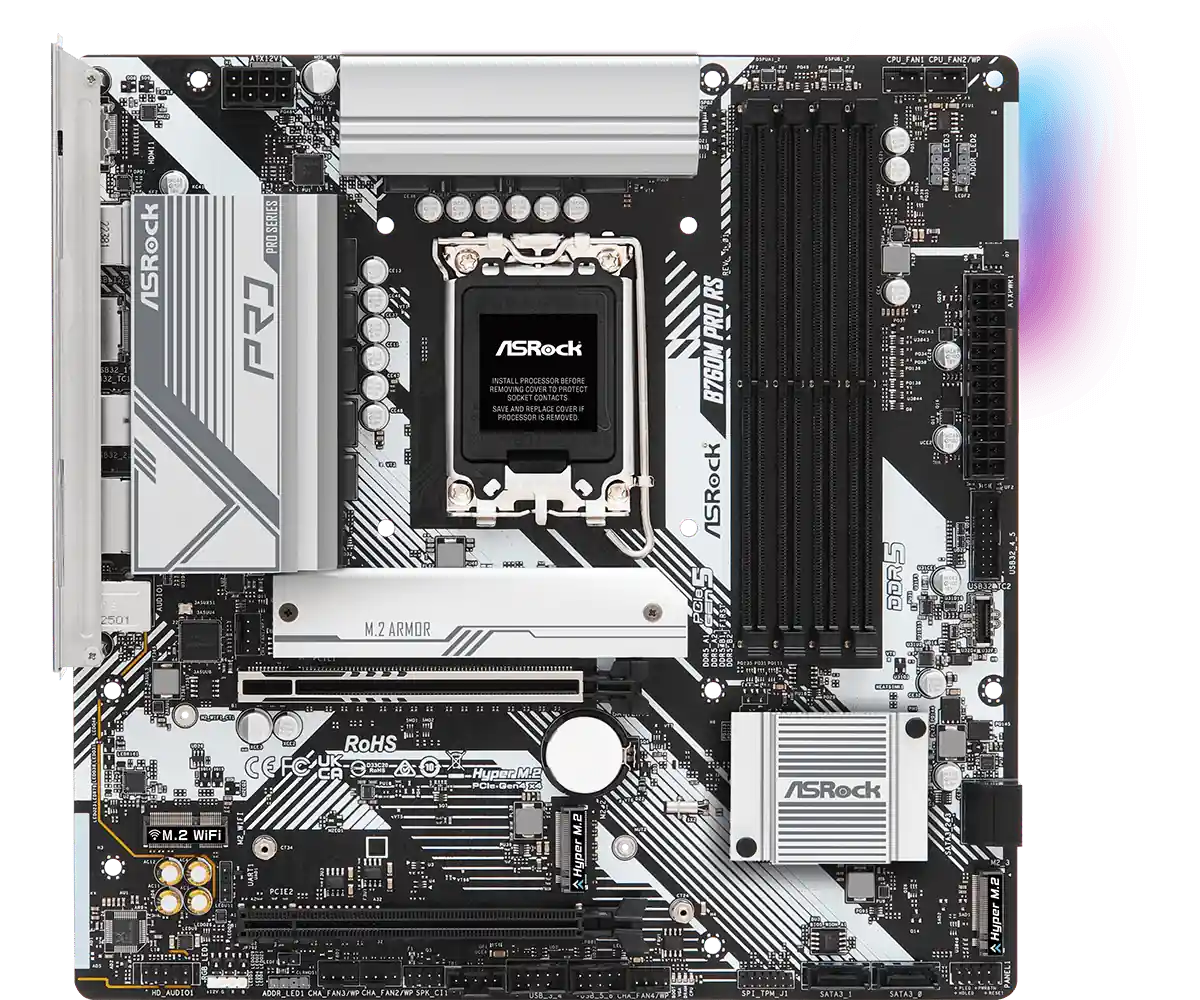

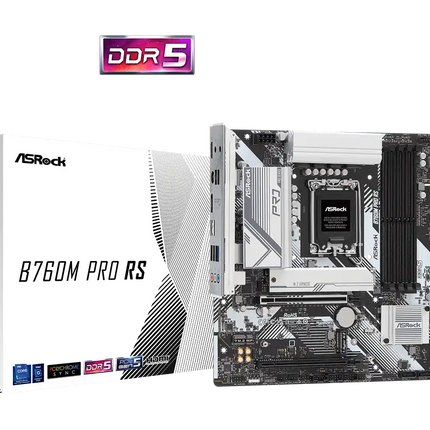

| Model |

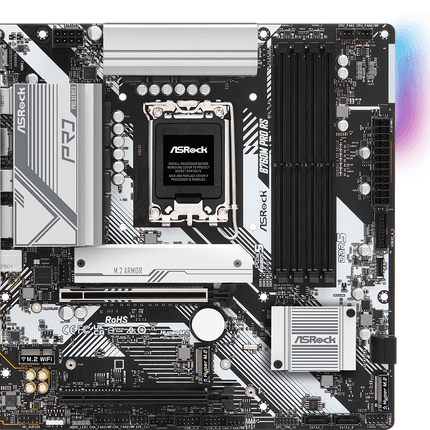

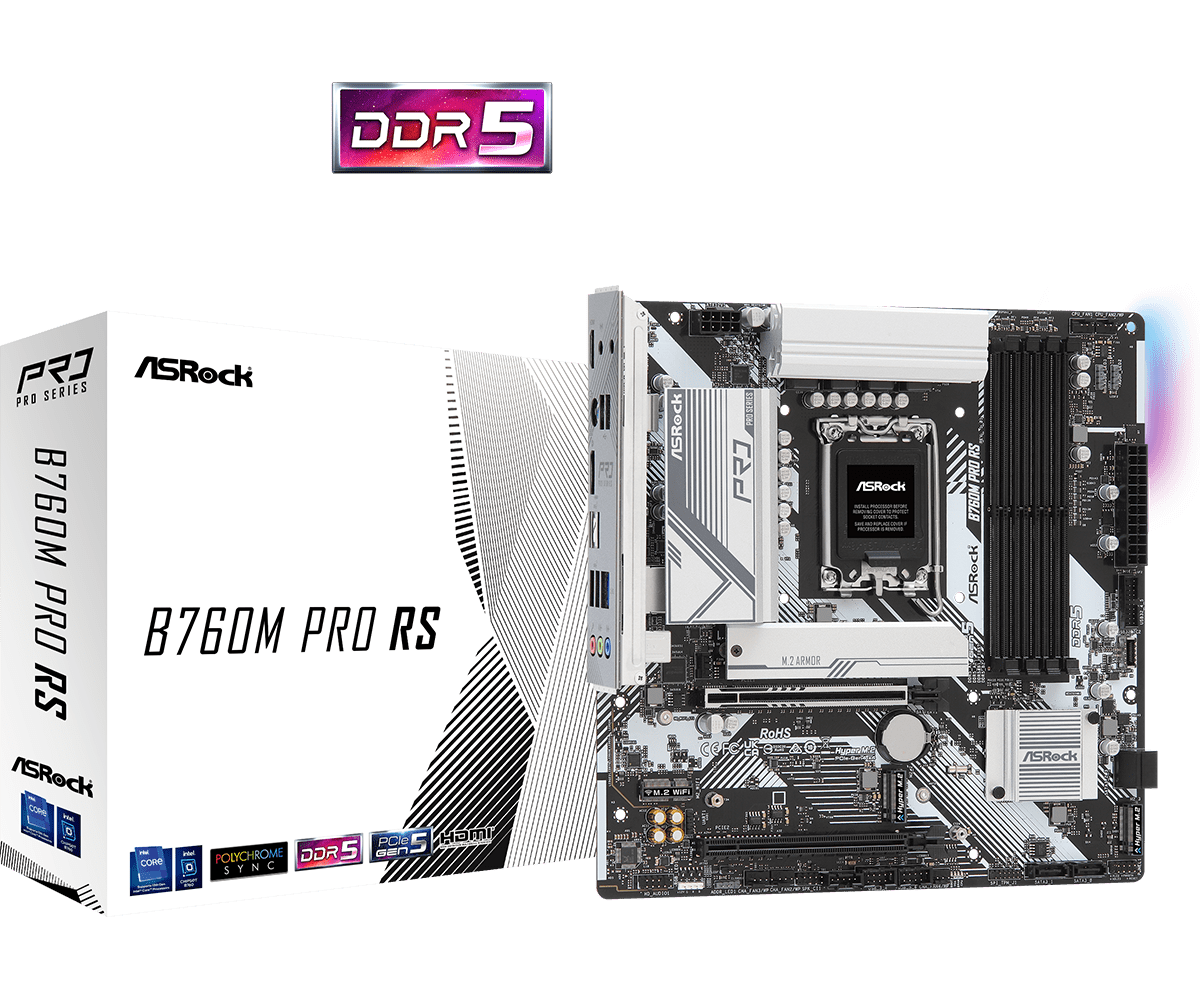

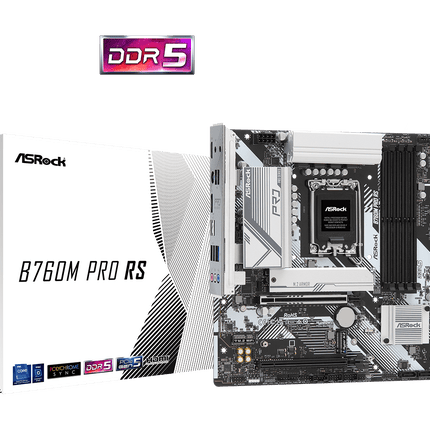

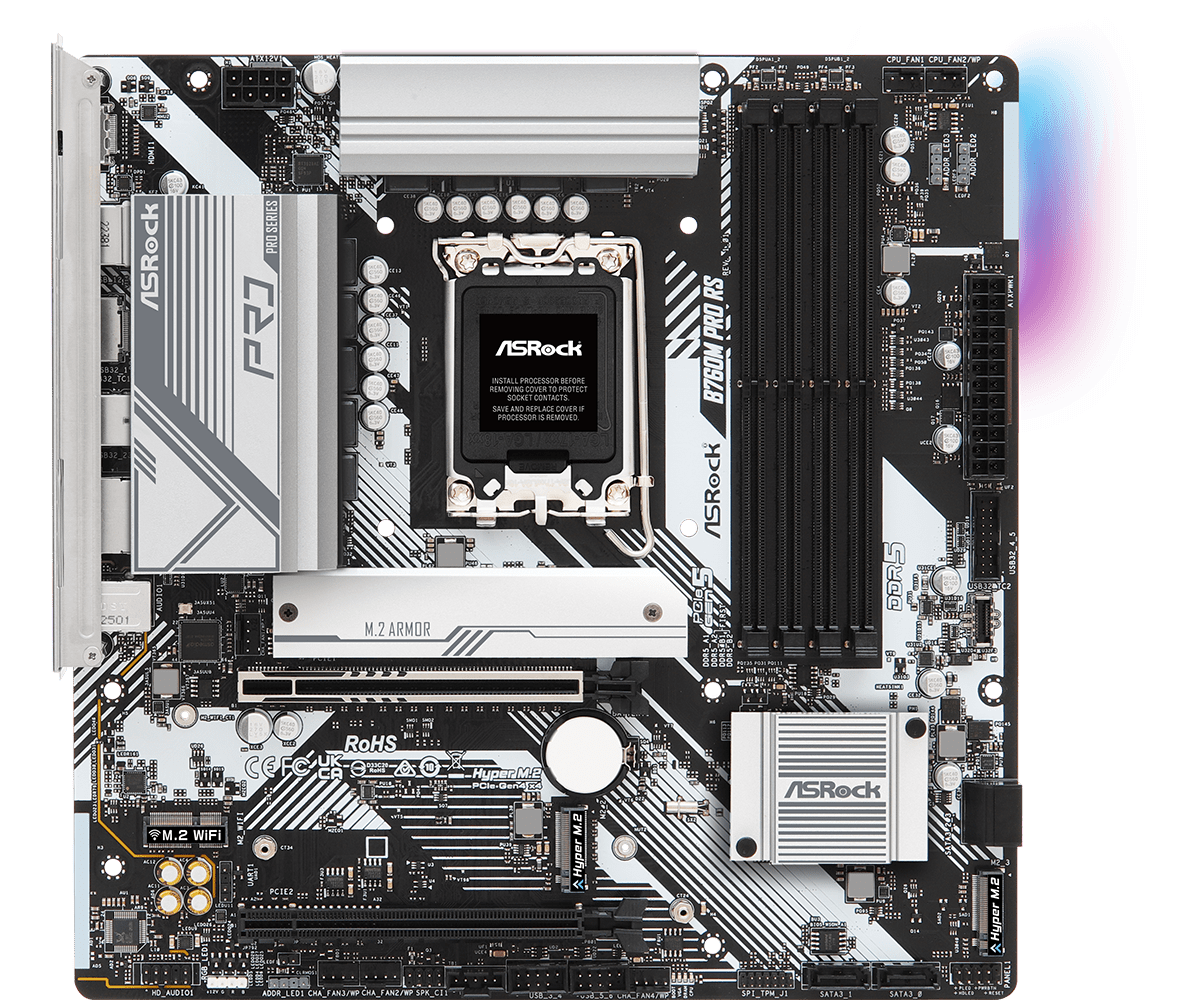

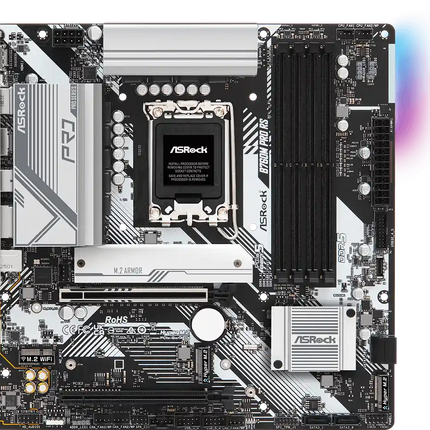

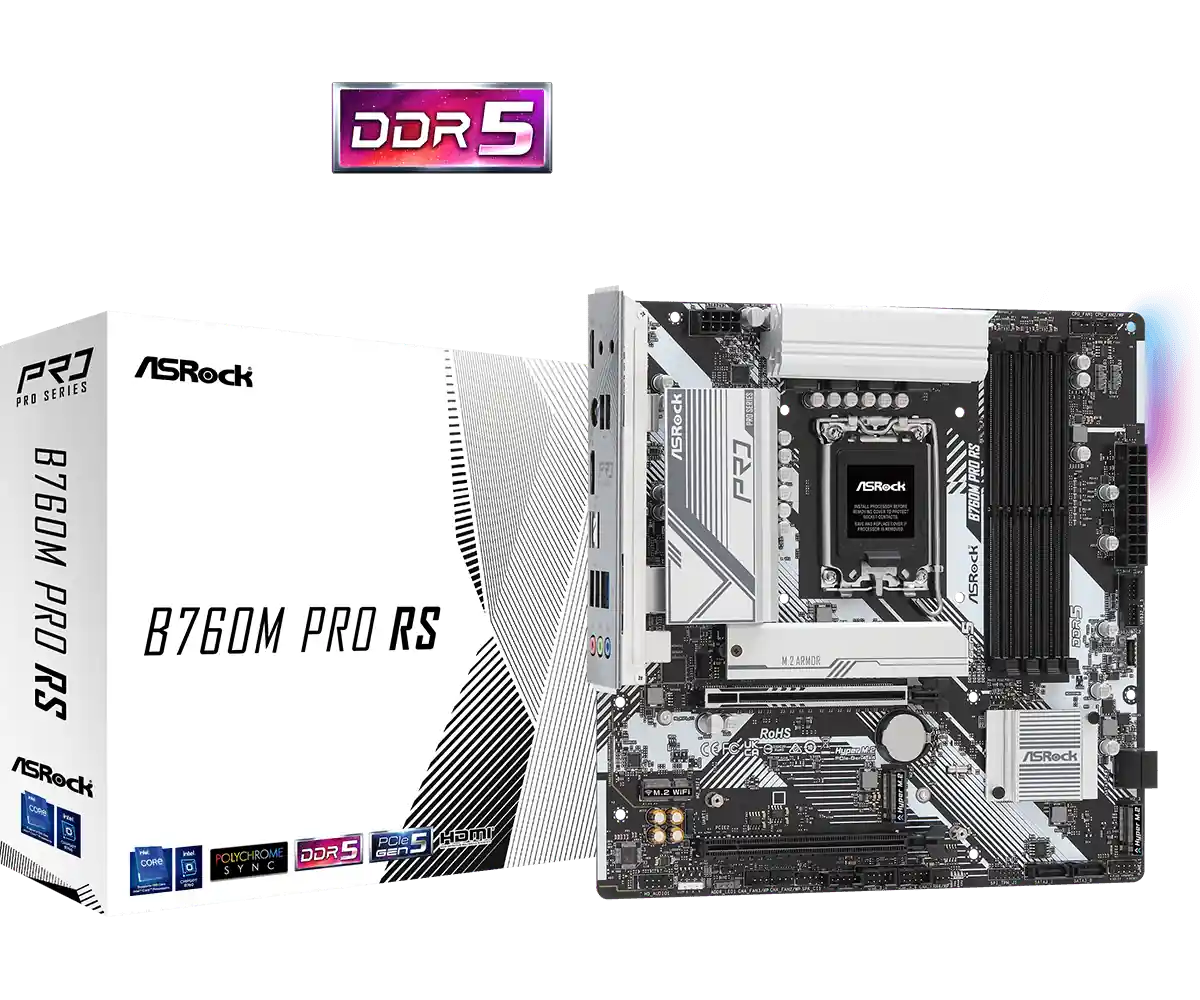

ASRock B760M Pro RS |
| Form Factor |
Micro ATX (24.4cm × 24.4cm) |
| Socket |
Intel LGA1700 |
| Chipset |
Intel B760 |
| CPU Support |
Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron |
| Power Phases |
7+1+1 Dr.MOS 50A (VCore + GT) |
| Memory |
4× DDR5 DIMM, Up to 256GB, Dual Channel, Non-ECC |
| Memory Speed |
Up to DDR5 7200+ (O.C.), Intel XMP 3.0 |
| PCIe Slots |
1× PCIe 5.0 x16 (CPU), 1× PCIe 3.0 x4 (Chipset) |
| M.2 Slots |
3× Hyper M.2 PCIe Gen4 x4 (1× CPU + 2× Chipset, up to 64 Gb/s) |
| M.2 Key-E |
1× for Wi-Fi/BT Module (Intel CNVi/CNVio2) |
| SATA |
4× SATA 6Gb/s, RAID 0/1/5/10 |
| Onboard Graphics |
1× HDMI 2.1 (4K@60Hz) + 1× DisplayPort 1.4 (8K@60Hz) |
| Audio |
Realtek ALC897, 7.1 CH HD Audio, Nahimic Audio |
| LAN |
Dragon RTL8125BG 2.5GbE |
| Wireless |
M.2 Key-E slot (module not included) |

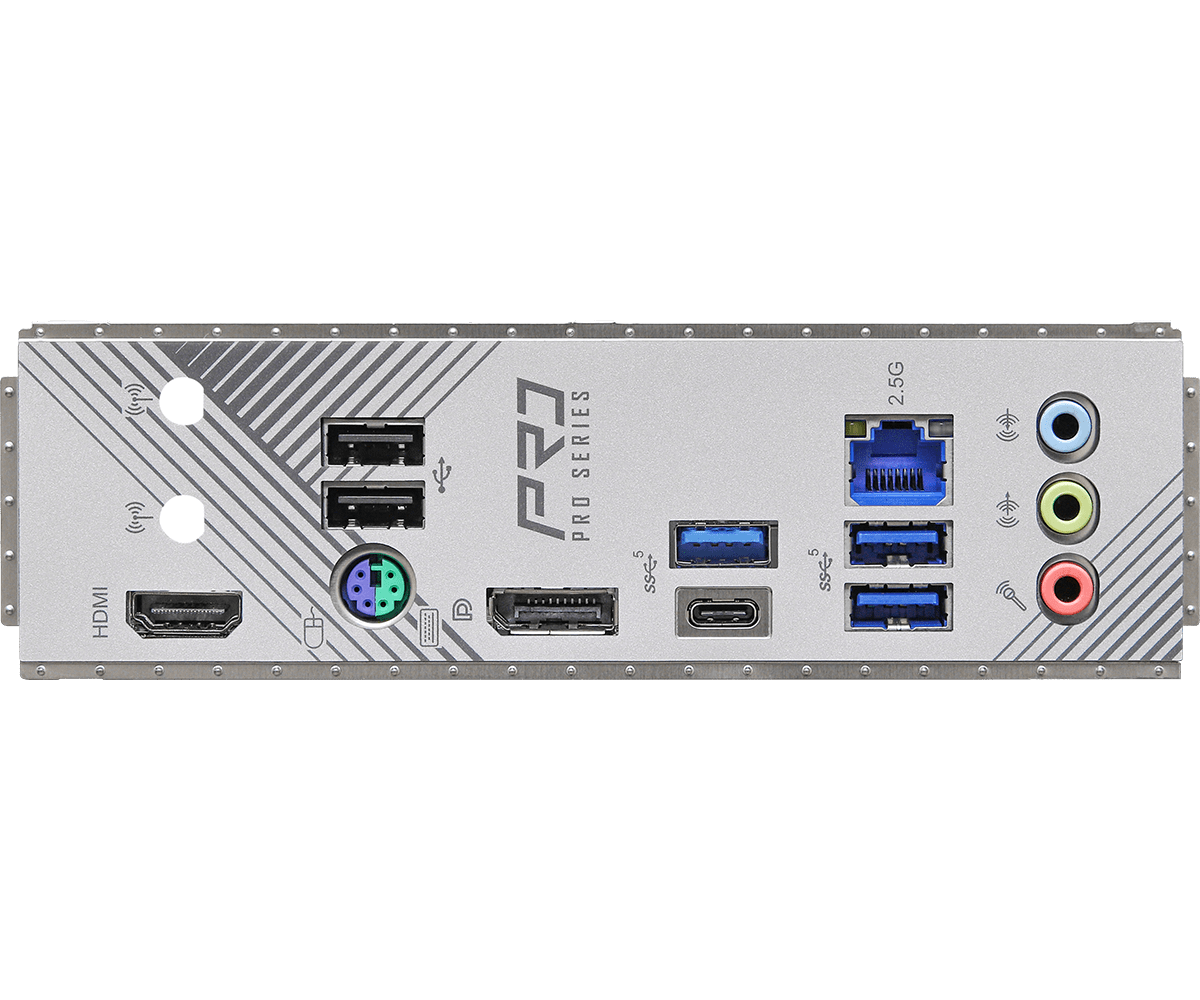

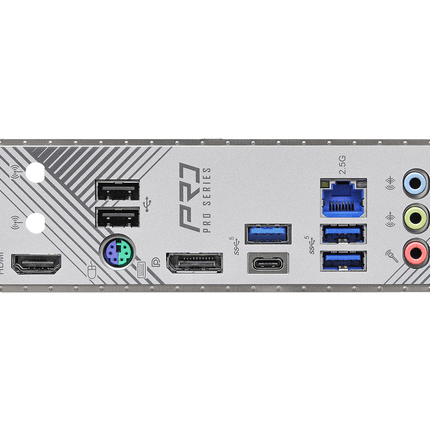

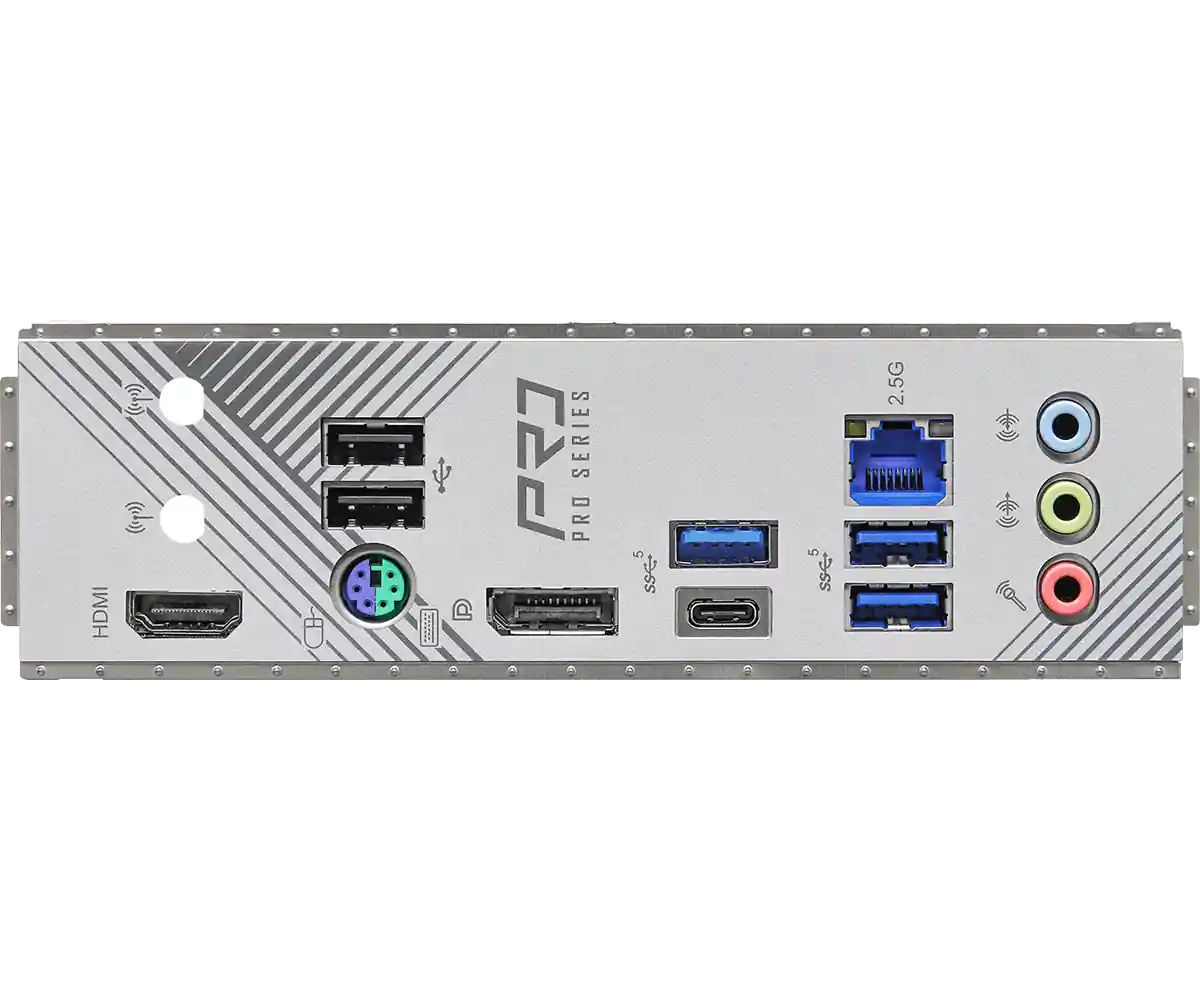

| USB (Rear) |
1× USB 3.2 Gen 1 Type-C, 3× USB 3.2 Gen 1 Type-A, 2× USB 2.0 |
| USB (Internal) |
1× USB 3.2 Gen 1 Type-C, 1× USB 3.2 Gen 1, 2× USB 2.0 Headers |
| RGB Headers |
3× ARGB (5V) + 1× RGB (12V) |
| Fan Headers |
1× CPU Fan, 1× CPU Pump, 4× Chassis/Pump Fan |
| Thunderbolt |
1× Thunderbolt AIC Connector |
| BIOS |
128Mb AMI UEFI, EZ Mode, Instant Flash, Easy RAID Installer |
| Included |
User Manual, 2× SATA Cables, 4× M.2 Screws, 1× M.2 Standoff |
| Operating System |
Windows 11 / Windows 10 64-bit |
