Max. Capacity Used  100% Output power capacity 900 Watts / 1.6kVA Output Connections (6) IEC 60320 C13 (Battery Backup) Nominal Output Voltage 230V Nominal Input Voltage 230V Input Connections IEC 60320 C14 Cord Length 1.2meters APC Back-UPS 1600VA, 230V, AVR, IEC Sockets Battery Backup & Surge Protector for Electronics and Computers Includes: User manual Automatic Voltage Regulation (AVR) Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. LED Indicators Provide easy-to-read status of the unit and utility power conditions. PowerChute Personal Edition OS Compatibility This software supports numerous operating systems and processors. For further information, please bra href="https://www.apc.com/wp/?um=300"click here./a USB connection Use your PC to access additional power protection and management features for your UPS via a USB Port.

Read more less

Output Output power capacity 2.4kWatts / 3.0kVA Max Configurable Power (Watts) 2.4kWatts / 3.0kVA Nominal Output Voltage 230V Output Frequency (sync to mains) 50/60Hz +/- 3 Hz Other Output Voltages 220, 240 Load Crest Factor 3 : 1 Topology Double Conversion Online Waveform type Sine wave Output Connections (6) IEC 320 C13 (Battery Backup) (1) IEC 320 C19 (Battery Backup) Input Nominal Input Voltage 230V Input frequency 40 - 70 Hz Input Connections IEC-320 C14 Input voltage range for main operations 160 - 280V Number of Power Cords 1 Other Input Voltages 220, 240 Batteries & Runtime Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Typical recharge time 4hour(s) Battery Volt-Amp-Hour Capacity 473 Runtime View Runtime Graph View Runtime Chart Efficiency View Efficiency Graph Communications & Management Control panel Multi-function LCD status and control console Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Surge Protection and Filtering Surge energy rating 600Joules Physical Maximum Height 336MM, 33.6CM Maximum Width 190MM, 19.0CM Maximum Depth 425MM, 42.5CM Net Weight 26.8KG Shipping weight 29.0KG Shipping Height 465MM, 46.5CM Shipping Width 325MM, 32.5CM Shipping Depth 565MM, 56.5CM Environmental Operating Temperature 0 - 40 °C Operating Relative Humidity 0 - 95 (non-condensing) % Operating Elevation 0-3000meters Storage Temperature -20 - 50 °C Storage Relative Humidity 0 - 95 (non-condensing) % Storage Elevation 0-14763.6meters Conformance Approvals CE, IEC 62040-1-1, IEC 62040-1-2 Standard warranty 2 years repair or replace Sustainable Offer Status RoHS Compliant REACH REACH: Contains No SVHCs

Read more less

utput power capacity 1.6kWatts / 2.0kVA Output Connections (4) IEC 320 C13 (Battery Backup) (4) IEC 60320 C13 (Battery Backup) Nominal Output Voltage 230V Nominal Input Voltage 230V Input Connections IEC 60320 C14 Cord Length 1.5meters APC Easy UPS On-Line SRV 2000VA 230V High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. Automatic internal bypass Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load. Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power. ECO Mode Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection Input power factor correction Minimizes installation costs by enabling the use of smaller generators and cabling. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Intelligent Card Slot Customize UPS capabilities with management card

Read more less

Output power capacity 410 Watts / 750VA Output Connections (4) IEC 60320 C13 (Battery Backup) Nominal Output Voltage 230V Nominal Input Voltage 230V Input Connections IEC 60320 C14 Cord Length 1.2meters APC Back-UPS 750VA, 230V, AVR, IEC Sockets Battery Backup & Surge Protector for Electronics and Computers Includes: User manual Automatic Voltage Regulation (AVR) Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Dataline surge protection Provides protection of connected equipment from power surges on the data lines. LED Indicators Provide easy-to-read status of the unit and utility power conditions. PowerChute Personal Edition OS Compatibility This software supports numerous operating systems and processors. For further information, please bra href="https://www.apc.com/wp/?um=300"click here./a Back-UPS Features & Benefits Safety Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Manageability LED status display Quickly understand unit and power status with visual indicators. Audible alarms Provides notification of changing utility power and UPS power conditions Availability Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Protection Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes . Surge only outlets Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage. Marketing features Battery-protected and surge-only outlets Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Read more less

cable length 1.22 m colour Black depth 39 cm height 19 cm mounting preference No preference net weight 7.6 kg mounting mode Not rack-mountable two post mountable 0 USB compatible No width 14 cm Input network frequency 50/60 Hz +/- 5 Hz auto-sensing plug standard IEC 60320 C14 input voltage limits 140...300 V number of cables 1 input voltage 230 V cos phi 0.54 Output rated power in W 650 W Maximum configurable power in W 650 W output frequency 50/60 Hz +/- 1 Hz sync to mains UPS type Line interactive Wave type Stepped approximation to a sinewave nb of power socket outlets 6 IEC 60320 C13 curve equation Efficiency curve fixed loss 0.0247 curve load maximum 100 % curve load minimum 3 % curve proportional loss 0 curve square loss 0.0026 curve X-axis maximum

Read more less

  Output power capacity 700Watts / 1.0kVA Max Configurable Power (Watts) 700Watts / 1.0kVA Nominal Output Voltage 230V Output Frequency (not synced) 50/60 Hz +/-1 Hz Load Crest Factor 3 : 1 Topology Line Interactive Waveform type Sine wave Transfer Time 2ms typical Input Nominal Input Voltage 230V Input frequency 45 - 65 Hz (auto sensing) Input Connections IEC-320 C14 Input voltage range for main operations 160 - 295V Number of Power Cords 1 Other Input Voltages 220, 240 Batteries & Runtime Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Typical recharge time 4hour(s) Expected Battery Life (years) 3 - 5 Battery Volt-Amp-Hour Capacity 150 Runtime View Runtime Graph View Runtime Chart Efficiency View Efficiency Graph Communications & Management Interface Port(s) USB Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Physical Maximum Height 220MM, 22.0CM Maximum Width 160MM, 16.0CM Maximum Depth 410MM, 41.0CM Net Weight 13.6KG Shipping weight 16.6KG Shipping Height 339MM, 33.9CM Shipping Width 272MM, 27.2CM Shipping Depth 508MM, 50.8CM Environmental Operating Temperature 0 - 40 °C Operating Relative Humidity 0 - 90 % Operating Elevation 0-999.9meters Storage Temperature -10 - 40 °C Storage Relative Humidity 0 - 95 % Storage Elevation 0-3000meters Audible noise at 1 meter from surface of unit 45.0dBA Conformance Approvals CE Standard warranty 2 years repair or replace

Read more less

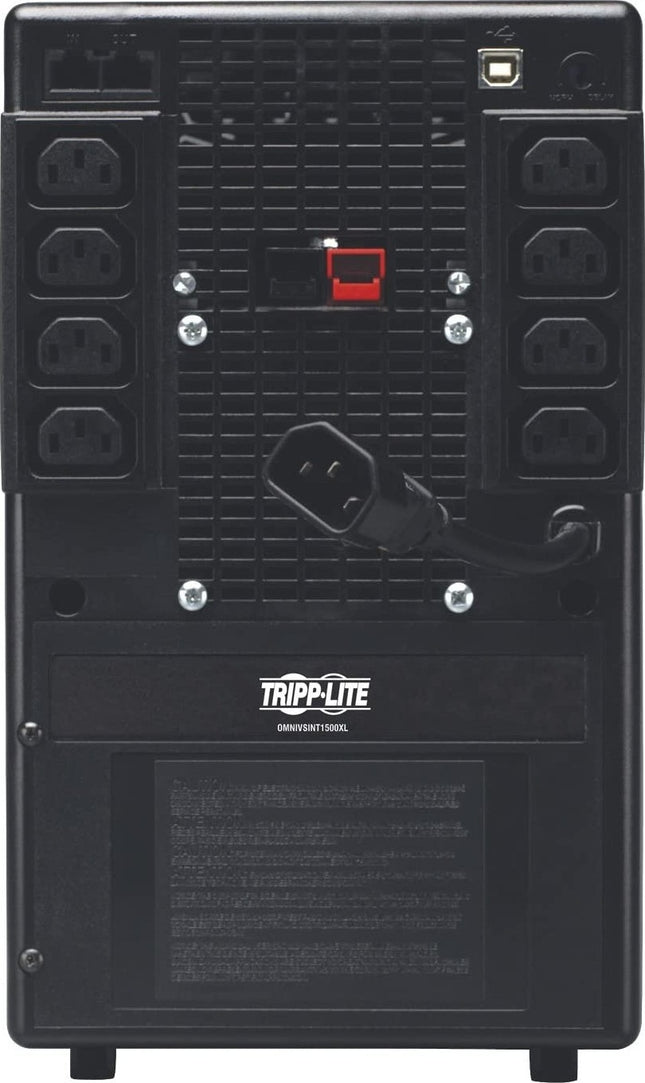

UPC Code 037332119780 UPS Type Line-Interactive OUTPUT Output Volt Amp Capacity (VA) 1500 Output kVA Capacity (kVA) 1.5 Output Watt Capacity (Watts) 940 Nominal Voltage Details 230V nominal output in battery mode Frequency Compatibility 50 / 60 Hz Frequency Compatibility Details Automatic frequency selection Output Voltage Regulation (Line Mode) -18%, +8% Output Voltage Regulation (Battery Mode) +/- 5% Included Output Power Cables Includes 2 C13 to C14 output power cables Hot-Swap PDU options PDUBHV10 (2U / 8 C13 outlets) Output AC Waveform (AC Mode) Sine wave Output AC Waveform (Battery Mode) PWM sine wave Nominal Output Voltage(s) Supported 220V; 230V; 240V Output Receptacles (8) C13 Individually Controllable Load Banks   No INPUT Rated input current (Maximum Load) 5A Nominal Input Voltage(s) Supported 230V AC UPS Input Connection Type C14 inlet UPS Input Connection Description Attached 15cm line cord with C14 inlet. The C14 inlet accepts user-supplied AC power cord with country-specific plug. UPS Input Cord Length (ft.) 0.5 UPS Input Cord Length (m) 0.2 Input Phase Single-Phase BATTERY Full Load Runtime (min.)   4.5 min. (940w) Half Load Runtime (min.)   13 min. (470w) Expandable Battery Runtime Extended runtime supported via optional external battery packs External Battery Pack Compatibility    BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible) DC System Voltage (VDC) 24 Battery Recharge Rate (Included Batteries) Less than 4.5 hours from 10% to 90% Internal UPS Replacement Battery Cartridge  RBC51 (quantity 2) Battery Access Battery access door Battery Replacement Description Hot-swappable, user replaceable batteries Expandable Runtime Yes VOLTAGE REGULATION Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151 to 282 Overvoltage Correction   Input voltages between 245 and 282 are reduced by 12% Undervoltage Correction   Input voltages between 177 and 199 are boosted by 14% Severe Undervoltage Correction Input voltages between 151 and 176 are boosted by 30% USER INTERFACE, ALERTS & CONTROLS Switches 2 Switches control off/on power status and alarm-cancel/self-test operation Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status Audible Alarm Audible alarm indicates power-failure and low-battery conditions LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status SURGE / NOISE SUPPRESSION UPS AC Suppression Joule Rating 340 UPS AC Suppression Response Time Instantaneous UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet EMI / RFI AC Noise Suppression   Yes PHYSICAL Installation Form Factors Supported with Included Accessories Tower Installation Form Factors Supported with Optional Accessories Wallmount (UPSWM - tower mounting kit) Primary Form Factor Tower Primary UPS Depth (mm) 191 Primary UPS Height (mm) 300 Primary UPS Width (mm) 183 Shipping Dimensions (hwd / cm) 39.62 x 26.42 x 27.43 Shipping Weight (kg) 14.74 UPS Housing Material Polycarbonate UPS Power Module Dimensions (hwd, cm) 29.97 x 18.29 x 19.05 UPS Power Module Weight (kg) 14.51 ENVIRONMENTAL Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius Relative Humidity 0 to 95%, non-condensing AC Mode BTU / Hr. (Full Load)   99 Battery Mode BTU / Hr. (Full Load)   657 AC Mode Efficiency Rating (100% Load) 97% COMMUNICATIONS Communications Interface USB PowerAlert Software For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert Communications Cable USB interface cable included WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications LINE / BATTERY TRANSFER Transfer Time   2-4 milliseconds Low Voltage Transfer to Battery Power (Setpoint) 151 High Voltage Transfer to Battery Power (Setpoint) 282 SPECIAL FEATURES Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported High Availability UPS Features Hot swappable batteries Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS CERTIFICATIONS UPS Certifications Tested to UL1778 (USA); CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Tested to IRAM (Argentina) UPS Certification Details CE 62040 WARRANTY Product Warranty Period (International) 2-year limited warranty

Read more less

OUTPUT Output Volt Amp Capacity (VA) 3000 Output kVA Capacity (kVA) 3 Output Watt Capacity (Watts) 2700 Output kW Capacity (kW) 2.7 Output Capacity Details DE-RATING INFORMATION: Max output in Frequency Conversion mode is reduced to 1890 watts for 208/220/230/240V output voltages; Max output is reduced to 2160W at 200V output voltage in all operating modes OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for 30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits). Power Factor 0.9 Crest Factor 3:1 Nominal Output Voltage(s) Supported 200V; 208V; 220V; 230V; 240V Nominal Voltage Details Nominal output voltage is user configured on first power-on Frequency Compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion Frequency Compatibility Details Output frequency matches input nominal on startup; Output capacity de-rates by 30% during frequency conversion operation Output Voltage Regulation (Line Mode) +/- 2% Output Voltage Regulation (Economy Line Mode) +/- 10% Output Voltage Regulation (Battery Mode) +/- 2% Output Receptacles (8) C13; (2) C19 Included Output Power Cables Includes 2 C13 to C14 and 1 C19 to C20 power cables Load Management Receptacles Two switchable 4 outlet load banks (3 C13 and 1 C19 per bank) Output AC Waveform (AC Mode) Pure Sine wave Output AC Waveform (Battery Mode) Pure Sine wave INPUT Rated input current (Maximum Load) 14.97A Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC UPS Input Connection Type C20 inlet Input Phase Single-Phase BATTERY Full Load Runtime (min.) 5 min. (2700w) Half Load Runtime (min.) 13.5 min. (1350w) Expandable Battery Runtime Supports extended runtime with optional external battery packs External Battery Pack Compatibility  BP72V15-2U (limit 1);  BP72V28RT-3U (multi-pack compatible);  BP72V18-2US (multi-pack compatible) DC System Voltage (VDC) 72 Battery Recharge Rate (Included Batteries) 3.0 hours from 10% to 90% (typical, full load discharge) Internal UPS Replacement Battery Cartridge  RBC72S  Battery Access Front panel battery access door Battery Replacement Description Hot-swappable, replaceable batteries Expandable Runtime Yes

Read more less

3kVA / 3000VA / 2700W line interactive 2U rack/tower UPS, Sine Wave Extended runtime options up to 2700W, 0.9 Power Factor, Interactive LCD interface 98% line-mode efficiency, 2 switched load banks, 4 post mounting kit USB, RS232, EPO and slot for network management card options230V C20 inlet, 8 C13 & 1 C19 outlets Add optional WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature 2-year limited warranty

Read more less

OUTPUT Output Volt Amp Capacity (VA) 3000 Output kVA Capacity (kVA) 3 Output Watt Capacity (Watts) 2700 Output kW Capacity (kW) 2.7 Output Capacity Details OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 1 minute; 150% load for 30 seconds; Loads greater than 150% trigger immediate switchover to BYPASS (when input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when input voltage and frequency are OUTSIDE bypass limits) Power Factor 0.9 Crest Factor 3:1 Nominal Output Voltage(s) Supported 220V; 230V; 240V Nominal Voltage Details 230V default Frequency Compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion Frequency Compatibility Details ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. FREQUENCY CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency when input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz of selected nominal. Output Voltage Regulation (Line Mode) +/- 2% Output Voltage Regulation (Economy Line Mode) +/- 10% Output Voltage Regulation (Battery Mode) +/- 3% Output Receptacles (6) C13; (1) C19 Included Output Power Cables Includes three C13 to C14 power cables Output AC Waveform (AC Mode) Pure Sine wave Output AC Waveform (Battery Mode) Pure Sine wave INPUT Rated input current (Maximum Load) 14.6A 220V; 14.0A 230V; 13.4A 240V Nominal Input Voltage(s) Supported 220V AC; 230V AC; 240V AC Nominal Input Voltage Description 230V factory default UPS Input Connection Type C20 inlet Input Circuit Breakers 20A UPS Input Cord Length (ft.) 10 UPS Input Cord Length (m) 3.1 Recommended Electrical Service 230V Input Phase Single-Phase BATTERY Full Load Runtime (min.) 4.4 min. (2700w) Half Load Runtime (min.) 11.2 min. (1350w) Expandable Battery Runtime Extended runtime supported via optional external battery packs External Battery Pack Compatibility  BP72V15-2U (limit 1);  BP72V18-2US (multi-pack compatible);  BP72V28RT-3U (multi-pack compatible) Expandable Runtime Description External battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details DC System Voltage (VDC) 72 Battery Recharge Rate (Included Batteries) Less than 6 hours from 10% to 90% (typical, full load discharge) Expandable Runtime Yes VOLTAGE REGULATION Voltage Regulation Description Online, double-conversion power conditioning Overvoltage Correction 2% output voltage regulation during overvoltages to 280 Undervoltage Correction 2% output voltage regulation during undervoltages to 80V (50% load), 175V (100% load)

Read more less

OUTPUT Output Volt Amp Capacity (VA) 3000 Output kVA Capacity (kVA) 3 Output Watt Capacity (Watts) 2250 Output kW Capacity (kW) 2.25 Output Capacity Details 2250W maximum with up to 1 external battery pack; 1500W maximum with 2 or more external battery packs Power Factor 0.75 Nominal Output Voltage(s) Supported 220V; 230V; 240V Nominal Voltage Details 230v nominal inverter output voltage Frequency Compatibility 50 / 60 Hz Frequency Compatibility Details Automatic frequency selection Output Voltage Regulation (Line Mode) -19% +8% Output Voltage Regulation (Battery Mode) +/- 5% Output Receptacles (8) C13; (1) C19 Included Output Power Cables Includes 3 C13 to C14 output power cables Load Management Receptacles Three switchable two-outlet C13 load banks Output Circuit Breakers 10A (x2) - each breaker protects 4 C13 outlets each, C19 is unbreakered Output AC Waveform (AC Mode) Sine wave Output AC Waveform (Battery Mode) PWM sine wave INPUT Rated input current (Maximum Load) 15.4A Nominal Input Voltage(s) Supported 230V AC UPS Input Connection Type C20 inlet UPS Input Connection Description User supplies input cabling with C19 output connection Input Phase Single-Phase BATTERY Full Load Runtime (min.) 4 min. (2250w) Half Load Runtime (min.) 14 min. (1125w) Expandable Battery Runtime Extended runtime supported via optional external battery packs External Battery Pack Compatibility  BP48V24-2U (limit 1);  BP48V60RT-3U (multi-pack compatible);  BP48V27-2US (multi-pack compatible) DC System Voltage (VDC) 48 Battery Recharge Rate (Included Batteries) Less than 4 hours from 10% to 90% (typical, full load discharge) Internal UPS Replacement Battery Cartridge  RBC54  Battery Access Battery access door Battery Replacement Description Hot-swappable, user replaceable batteries Expandable Runtime Yes VOLTAGE REGULATION Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151V to 282V Overvoltage Correction Input voltages between 245 and 282 are reduced by 12% Undervoltage Correction Input voltages between 177 and 199 are boosted by 14% Severe Undervoltage Correction Input voltages between 151 and 176 are boosted by 30% USER INTERFACE, ALERTS & CONTROLS Switches 2 Switches control off/on power status and alarm-cancel/self-test operation Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status Audible Alarm Audible alarm indicates power-failure, overload and low-battery conditions LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status SURGE / NOISE SUPPRESSION UPS AC Suppression Joule Rating 480 UPS AC Suppression Response Time Instantaneous EMI / RFI AC Noise Suppression Yes PHYSICAL Primary Form Factor Tower UPS Power Module Dimensions (hwd, cm) 36.07 x 23.37 x 30.48 UPS Power Module Weight (kg) 27.67 Shipping Dimensions (hwd / cm) 50.55 x 38.35 x 40.89 Shipping Weight (kg) 30.75 Cooling Method Fan UPS Housing Material Polycarbonate Primary UPS Height (mm) 361 Primary UPS Width (mm) 234 Primary UPS Depth (mm) 305 ENVIRONMENTAL Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius Relative Humidity 0 to 95%, non-condensing AC Mode Efficiency Rating (100% Load) 94% Audible Noise Audible Noise < 47dBA At Front Side 1 Meter COMMUNICATIONS Communications Interface USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface Network Management Cards SNMPWEBCARD; TLNETCARD;  WEBCARDLX  Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert Communications Cable 2 USB and 2 DB9 cables included WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications LINE / BATTERY TRANSFER Transfer Time 2-4 milliseconds Low Voltage Transfer to Battery Power (Setpoint) 151 High Voltage Transfer to Battery Power (Setpoint) 282 SPECIAL FEATURES Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported High Availability UPS Features Hot swappable batteries CERTIFICATIONS UPS Certifications CE UPS Certification Details CE 62040 WARRANTY Product Warranty Period (International) 2-year limited warranty

Read more less

  OVERVIEW UPC Code 037332177445 UPS Type Line-Interactive OUTPUT Output Volt Amp Capacity (VA) 1500 Output kVA Capacity (kVA) 1.5 Output Watt Capacity (Watts) 900 Nominal Voltage Details 230V nominal output in battery mode Frequency Compatibility 50 / 60 Hz Frequency Compatibility Details Automatic frequency selection Output Voltage Regulation (Battery Mode) +/- 5% UPS Output Receptacles (Surge Suppression Only) 6 UPS outlets, 2 surge-only outlets Hot-Swap PDU options PDUBHV10 (2U / 8 C13 outlets) Output AC Waveform (AC Mode) Sine wave Output AC Waveform (Battery Mode) PWM sine wave Nominal Output Voltage(s) Supported 220V; 230V; 240V Output Receptacles (8) C13 Individually Controllable Load Banks   No INPUT Rated input current (Maximum Load) 9A Nominal Input Voltage(s) Supported 230V AC UPS Input Connection Type C14 inlet Input Circuit Breakers 10A fuse UPS Input Cord Length (ft.) 6 UPS Input Cord Length (m) 1.8 Input Phase Single-Phase BATTERY Half Load Runtime (min.)   10 minutes (450 watts) DC System Voltage (VDC) 24 Battery Recharge Rate (Included Batteries) Less than 8 hours from 10% to 90% Internal UPS Replacement Battery Cartridge  RBC51 (requires 2) Expandable Runtime No VOLTAGE REGULATION Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with a correction range from 170V to 280V Overvoltage Correction   Input voltages between 247 and 280 are reduced by 15% Undervoltage Correction   Input voltages between 170 and 207 are boosted by 18% USER INTERFACE, ALERTS & CONTROLS Front Panel LCD Display LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Output load in watts, Battery voltage and Estimated runtime in minutes Switches Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch Audible Alarm Audible alarm indicates power-failure and low-battery conditions SURGE / NOISE SUPPRESSION UPS AC Suppression Joule Rating 455 UPS AC Suppression Response Time Instantaneous UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet EMI / RFI AC Noise Suppression   Yes PHYSICAL Cooling Method Fan Installation Form Factors Supported with Included Accessories Tower Primary Form Factor Tower Primary UPS Depth (mm) 394 Primary UPS Height (mm) 203 Primary UPS Width (mm) 146 Shipping Dimensions (hwd / cm) 28.70 x 23.11 x 49.02 Shipping Weight (kg) 12.34 UPS Power Module Dimensions (hwd, cm) 20.32 x 14.60 x 39.37 UPS Power Module Weight (kg) 11.20 ENVIRONMENTAL Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius Relative Humidity 0 to 95%, non-condensing AC Mode BTU / Hr. (Full Load)   79 Battery Mode BTU / Hr. (Full Load)   918 AC Mode Efficiency Rating (100% Load) 95% COMMUNICATIONS Communications Interface USB (HID enabled) Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert Communications Cable USB cabling included WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications LINE / BATTERY TRANSFER Transfer Time   6 milliseconds Low Voltage Transfer to Battery Power (Setpoint) 170V (factory setting), 175V (medium setting), 180V (narrow setting) High Voltage Transfer to Battery Power (Setpoint) 280V (factory setting), 275V (medium setting), 270V (narrow setting) SPECIAL FEATURES Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported High Availability UPS Features Hot swappable batteries Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS CERTIFICATIONS UPS Certifications CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia) UPS Certification Details EN62040-1, EN62040-2 Class A WARRANTY Product Warranty Period (International) 2-year limited warranty

Read more less
