Tripp-Lite AVR Series 230V 750VA
- Tripp-Lite
SKU: AVRX750UD
130,000 IQD
OUTPUT
| Output Volt Amp Capacity (VA) | 750 |
| Output Watt Capacity (Watts) | 450 |
| Nominal Output Voltage(s) Supported | 220V; 230V; 240V |
| Nominal Voltage Details | 230V nominal output in battery mode |
| Frequency Compatibility | 50 / 60 Hz |
| Frequency Compatibility Details | Automatic frequency selection |
| Output Voltage Regulation (Line Mode) | +8%, -21% |
| Output Voltage Regulation (Battery Mode) | +/- 5% |

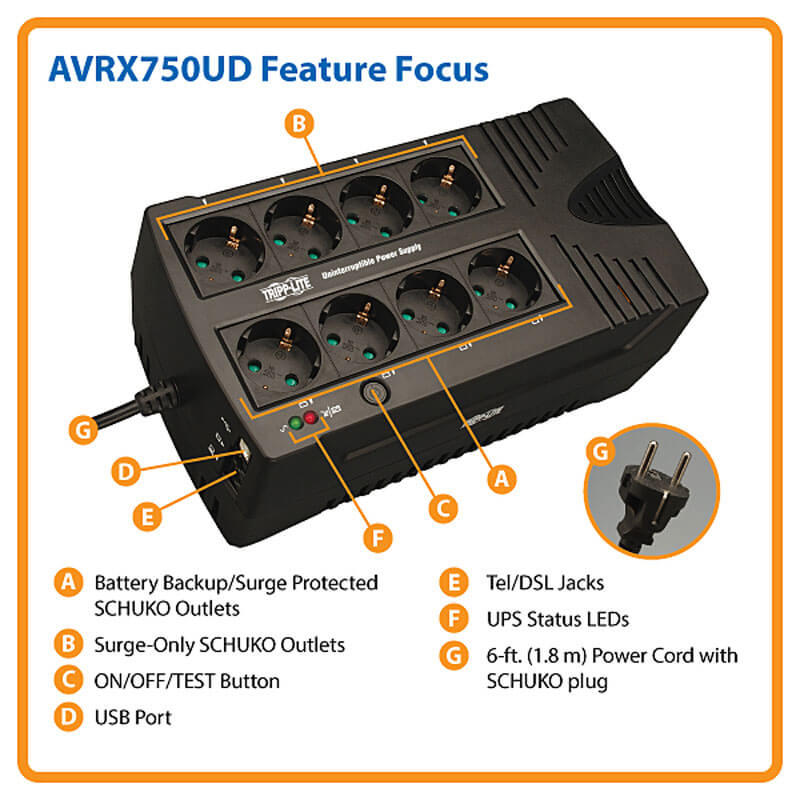

| Output Receptacles | (8) CEE7/7 |
| UPS Output Receptacles (Surge Suppression Only) | 4 UPS outlets, 4 surge-only outlets |
| Output AC Waveform (AC Mode) | Sine wave |
| Output AC Waveform (Battery Mode) | PWM sine wave |
INPUT
| Rated input current (Maximum Load) | 10A |
| Nominal Input Voltage(s) Supported | 230V AC |
| UPS Input Connection Type | CEE 7/7 Schuko |
| UPS Input Cord Length (ft.) | 6 |
| UPS Input Cord Length (m) | 1.8 |
| Input Phase | Single-Phase |
BATTERY
| Full Load Runtime (min.) | 2.6 min. (450w) |
| Half Load Runtime (min.) | 8.6 min. (225w) |
| DC System Voltage (VDC) | 12 |
| Battery Recharge Rate (Included Batteries) | Less than 16 hours from 10% to 90% |
| Internal UPS Replacement Battery Cartridge | RBC51 (QTY 1) |
| Battery Access | Battery access door |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Expandable Runtime | No |
VOLTAGE REGULATION
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 159 to 282VAC |
| Overvoltage Correction | Input voltages between 245 and 282 are reduced by 12% |
| Undervoltage Correction | Input voltages between 159 and 205 are boosted by 14% |
USER INTERFACE, ALERTS & CONTROLS
| Switches | Combination switch controls on/off power status and self-test operation |
| Audible Alarm | Audible alarm indicates power-failure, overload and low-battert status |
| LED Indicators | 2 LEDs indicate off/on power status and overload/low-battery status |
SURGE / NOISE SUPPRESSION
| UPS AC Suppression Joule Rating | 575 |
| UPS AC Suppression Response Time | Instantaneous |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out) |
| EMI / RFI AC Noise Suppression | Yes |
PHYSICAL
| Installation Form Factors Supported with Included Accessories | Ultra-compact desktop; Wallmount |
| Primary Form Factor | Desktop |
| UPS Power Module Dimensions (hwd, cm) | 12.01 x 27.94 x 15.24 |
| UPS Power Module Weight (kg) | 5.99 |
| Shipping Dimensions (hwd / cm) | 23.37 x 36.50 x 23.37 |
| Shipping Weight (kg) | 6.53 |
| UPS Housing Material | ABS |
| Primary UPS Height (mm) | 120 |
| Primary UPS Width (mm) | 279 |
| Primary UPS Depth (mm) | 152 |
ENVIRONMENTAL
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius. |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius. |
| Relative Humidity | 0 to 95%, non-condensing |
| AC Mode BTU / Hr. (Full Load) | 16 |
| Battery Mode BTU / Hr. (Full Load) | 408 |
| AC Mode Efficiency Rating (100% Load) | 99% |
COMMUNICATIONS
| Communications Interface | USB |
| PowerAlert Software | For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Communications Cable | USB interface cable included |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Network UPS Tools Compatibility | NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite |
LINE / BATTERY TRANSFER
| Transfer Time | 4 milliseconds (line to battery mode) / 1 millisecond (battery to line mode) |
| Low Voltage Transfer to Battery Power (Setpoint) | 159 |
| High Voltage Transfer to Battery Power (Setpoint) | 282 |
SPECIAL FEATURES
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| High Availability UPS Features | Hot swappable batteries |
| Green Energy-Saving Features | Greater than 95% efficiency - GREEN UPS |
CERTIFICATIONS
| UPS Certifications | CE; Meets FCC Part 15 Category B (EMI); ROHS (Restriction of Hazardous Substances) |
| UPS Certification Details | IEC 62040, IEC 60950, EN 62040 |
WARRANTY
| Product Warranty Period (International) | 2-year limited warranty |
