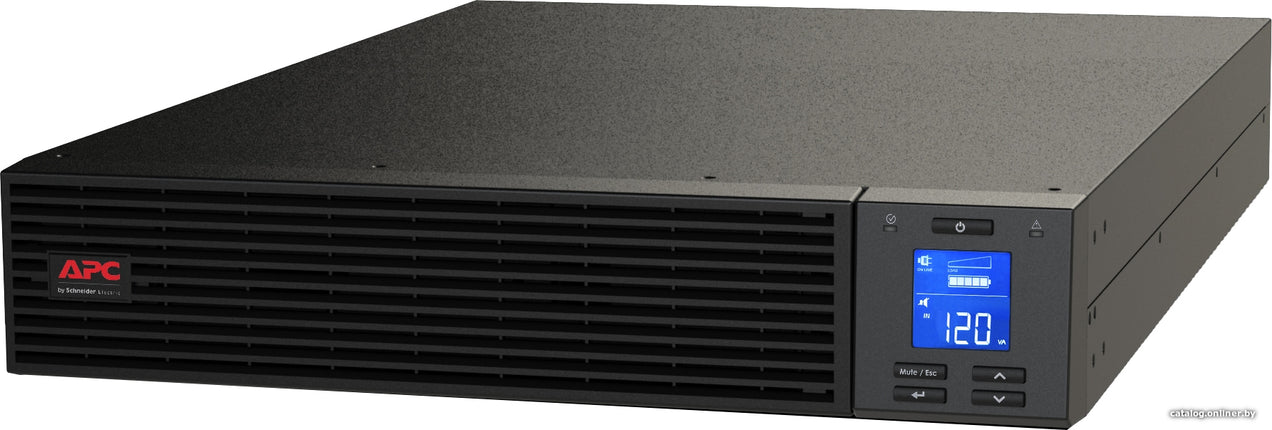

APC Easy UPS On-Line SRV 3000VA RM 230V

Description

Output

Output power capacity
2.4kWatts / 3.0kVA
Max Configurable Power (Watts)
2.4kWatts / 3.0kVA
Nominal Output Voltage
230V
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(6) IEC 320 C13 (Battery Backup)
(1) IEC 320 C19 (Battery Backup)

Input

Nominal Input Voltage
230V
Input frequency
40 - 70 Hz
Input Connections
IEC-320 C14
Input voltage range for main operations
160 - 280V
Number of Power Cords
1
Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
4hour(s)
Battery Volt-Amp-Hour Capacity
473
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph

Communications & Management

Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating
600Joules

Physical

Maximum Height
336MM, 33.6CM
Maximum Width
190MM, 19.0CM
Maximum Depth
425MM, 42.5CM
Net Weight
26.8KG
Shipping weight
29.0KG
Shipping Height
465MM, 46.5CM
Shipping Width
325MM, 32.5CM
Shipping Depth
565MM, 56.5CM

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (non-condensing) %
Operating Elevation
0-3000meters
Storage Temperature
-20 - 50 °C
Storage Relative Humidity
0 - 95 (non-condensing) %
Storage Elevation
0-14763.6meters

Conformance

Approvals
CE, IEC 62040-1-1, IEC 62040-1-2
Standard warranty
2 years repair or replace

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
Product form

Output Output power capacity 2.4kWatts / 3.0kVA Max Configurable Power (Watts) 2.4kWatts / 3.0kVA Nominal Output Voltage 230V Output Frequency (sync to... Read more

Free pickup in our shop(s)

SKU: SRV3KRI

1,300,000 IQD

      Description

      Output

      Output power capacity
      2.4kWatts / 3.0kVA
      Max Configurable Power (Watts)
      2.4kWatts / 3.0kVA
      Nominal Output Voltage
      230V
      Output Frequency (sync to mains)
      50/60Hz +/- 3 Hz
      Other Output Voltages
      220, 240
      Load Crest Factor
      3 : 1
      Topology
      Double Conversion Online
      Waveform type
      Sine wave
      Output Connections
      (6) IEC 320 C13 (Battery Backup)
      (1) IEC 320 C19 (Battery Backup)

      Input

      Nominal Input Voltage
      230V
      Input frequency
      40 - 70 Hz
      Input Connections
      IEC-320 C14
      Input voltage range for main operations
      160 - 280V
      Number of Power Cords
      1
      Other Input Voltages
      220, 240

      Batteries & Runtime

      Battery type
      Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
      Typical recharge time
      4hour(s)
      Battery Volt-Amp-Hour Capacity
      473
      Runtime
      View Runtime Graph
      View Runtime Chart
      Efficiency
      View Efficiency Graph

      Communications & Management

      Control panel
      Multi-function LCD status and control console
      Audible Alarm
      Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

      Surge Protection and Filtering

      Surge energy rating
      600Joules

      Physical

      Maximum Height
      336MM, 33.6CM
      Maximum Width
      190MM, 19.0CM
      Maximum Depth
      425MM, 42.5CM
      Net Weight
      26.8KG
      Shipping weight
      29.0KG
      Shipping Height
      465MM, 46.5CM
      Shipping Width
      325MM, 32.5CM
      Shipping Depth
      565MM, 56.5CM

      Environmental

      Operating Temperature
      0 - 40 °C
      Operating Relative Humidity
      0 - 95 (non-condensing) %
      Operating Elevation
      0-3000meters
      Storage Temperature
      -20 - 50 °C
      Storage Relative Humidity
      0 - 95 (non-condensing) %
      Storage Elevation
      0-14763.6meters

      Conformance

      Approvals
      CE, IEC 62040-1-1, IEC 62040-1-2
      Standard warranty
      2 years repair or replace

      Sustainable Offer Status

      RoHS
      Compliant
      REACH
      REACH: Contains No SVHCs
