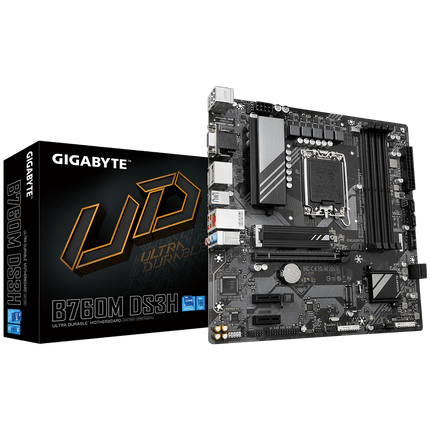

GIGABYTE B760M DS3H D5

Description

CPU & Chipset

  • Socket: LGA1700

  • CPU Support: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

  • Chipset: Intel® B760 Express Chipset

  • L3 Cache: Varies by CPU

  • (See CPU support list for compatibility details)

Memory

  • Supported Memory: DDR5 (Dual Channel Architecture)

  • Max Capacity: Up to 256GB (4x DDR5 DIMMs, 64GB per DIMM)

  • Speeds Supported:

    • Up to DDR5-7600(O.C.) with i9/i7 CPUs

    • Up to DDR5-4800 with i5/i3 and 12th Gen CPUs

  • Features:

    • ECC and Non-ECC unbuffered DIMM support (ECC in non-ECC mode)

    • Intel® XMP (Extreme Memory Profile) support

Graphics & Display Outputs

  • Integrated Graphics: Intel® HD Graphics (based on CPU)

  • Display Outputs:

    • 1 x HDMI 2.1 (Max resolution: 4096x2160 @ 60Hz)

    • 1 x D-Sub (Max resolution: 1920x1200 @ 60Hz)

    • 2 x DisplayPort 1.2 (Max resolution: 4096x2304 @ 60Hz)

  • Multi-Display Support: Up to 4 monitors simultaneously

  • HDCP 2.3 Support

Audio

  • Audio Codec: Realtek® High Definition Audio

  • Channel Support: 2/4/5.1/7.1-channel

  • S/PDIF Out: Yes

Networking

  • LAN: Realtek® 2.5GbE LAN (2.5G / 1G / 100Mbps)

Expansion Slots

  • 1 x PCIe x16 Slot (PCIe 4.0, from CPU)

  • 2 x PCIe x1 Slots (PCIe 3.0, from chipset)

Storage

  • M.2 Slots:

    • 1 x PCIe 4.0 x4/x2 (M2A_CPU)

    • 1 x PCIe 4.0 x4/x2 (M2P_SB)

  • SATA Ports: 4 x SATA 6Gb/s

  • RAID Support: RAID 0, 1, 5, 10 (SATA)

USB Ports

  • Rear I/O:

    • 1 x USB 3.2 Gen 2 Type-C®

    • 3 x USB 3.2 Gen 1

    • 2 x USB 2.0

  • Internal Headers:

    • 2 x USB 2.0 headers (4 ports)

    • 1 x USB 3.2 Gen 1 header (2 ports)

Internal Connectors

  • 1 x 24-pin ATX main power

  • 1 x 8-pin ATX 12V power

  • 3 x System fan headers

  • 1 x CPU fan header

  • RGB & ARGB headers

  • Front panel audio & USB headers

  • TPM, Q-Flash Plus, Clear CMOS, Reset jumper

  • S/PDIF Out, serial, and parallel port headers

Back Panel I/O

  • 2 x USB 2.0

  • 3 x USB 3.2 Gen 1

  • 1 x USB 3.2 Gen 2 Type-C®

  • 1 x HDMI, 1 x D-Sub, 2 x DisplayPort

  • 1 x PS/2 keyboard/mouse combo

  • 1 x RJ-45 LAN

  • 3 x Audio jacks

Other Features

  • Audio Software: Configurable for 7.1-channel via software

  • Cooling Monitoring:

    • Fan speed, voltage, temp detection

    • Water cooling flow detection

  • BIOS: AMI UEFI BIOS with Q-Flash & Q-Flash Plus

  • Software: Norton® Security OEM, LAN bandwidth management

  • OS Support: Windows 11 / 10 (64-bit)

  • Form Factor: Micro-ATX (24.4 x 24.4 cm)

available In Iraq

Product form

CPU & Chipset Socket: LGA1700 CPU Support: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors Chipset:... Read more

Free pickup in our shop(s)

SKU: B760M-DS3H

210,000 IQD 195,000 IQD

      Description

      CPU & Chipset

      • Socket: LGA1700

      • CPU Support: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

      • Chipset: Intel® B760 Express Chipset

      • L3 Cache: Varies by CPU

      • (See CPU support list for compatibility details)

      Memory

      • Supported Memory: DDR5 (Dual Channel Architecture)

      • Max Capacity: Up to 256GB (4x DDR5 DIMMs, 64GB per DIMM)

      • Speeds Supported:

        • Up to DDR5-7600(O.C.) with i9/i7 CPUs

        • Up to DDR5-4800 with i5/i3 and 12th Gen CPUs

      • Features:

        • ECC and Non-ECC unbuffered DIMM support (ECC in non-ECC mode)

        • Intel® XMP (Extreme Memory Profile) support

      Graphics & Display Outputs

      • Integrated Graphics: Intel® HD Graphics (based on CPU)

      • Display Outputs:

        • 1 x HDMI 2.1 (Max resolution: 4096x2160 @ 60Hz)

        • 1 x D-Sub (Max resolution: 1920x1200 @ 60Hz)

        • 2 x DisplayPort 1.2 (Max resolution: 4096x2304 @ 60Hz)

      • Multi-Display Support: Up to 4 monitors simultaneously

      • HDCP 2.3 Support

      Audio

      • Audio Codec: Realtek® High Definition Audio

      • Channel Support: 2/4/5.1/7.1-channel

      • S/PDIF Out: Yes

      Networking

      • LAN: Realtek® 2.5GbE LAN (2.5G / 1G / 100Mbps)

      Expansion Slots

      • 1 x PCIe x16 Slot (PCIe 4.0, from CPU)

      • 2 x PCIe x1 Slots (PCIe 3.0, from chipset)

      Storage

      • M.2 Slots:

        • 1 x PCIe 4.0 x4/x2 (M2A_CPU)

        • 1 x PCIe 4.0 x4/x2 (M2P_SB)

      • SATA Ports: 4 x SATA 6Gb/s

      • RAID Support: RAID 0, 1, 5, 10 (SATA)

      USB Ports

      • Rear I/O:

        • 1 x USB 3.2 Gen 2 Type-C®

        • 3 x USB 3.2 Gen 1

        • 2 x USB 2.0

      • Internal Headers:

        • 2 x USB 2.0 headers (4 ports)

        • 1 x USB 3.2 Gen 1 header (2 ports)

      Internal Connectors

      • 1 x 24-pin ATX main power

      • 1 x 8-pin ATX 12V power

      • 3 x System fan headers

      • 1 x CPU fan header

      • RGB & ARGB headers

      • Front panel audio & USB headers

      • TPM, Q-Flash Plus, Clear CMOS, Reset jumper

      • S/PDIF Out, serial, and parallel port headers

      Back Panel I/O

      • 2 x USB 2.0

      • 3 x USB 3.2 Gen 1

      • 1 x USB 3.2 Gen 2 Type-C®

      • 1 x HDMI, 1 x D-Sub, 2 x DisplayPort

      • 1 x PS/2 keyboard/mouse combo

      • 1 x RJ-45 LAN

      • 3 x Audio jacks

      Other Features

      • Audio Software: Configurable for 7.1-channel via software

      • Cooling Monitoring:

        • Fan speed, voltage, temp detection

        • Water cooling flow detection

      • BIOS: AMI UEFI BIOS with Q-Flash & Q-Flash Plus

      • Software: Norton® Security OEM, LAN bandwidth management

      • OS Support: Windows 11 / 10 (64-bit)

      • Form Factor: Micro-ATX (24.4 x 24.4 cm)

      available In Iraq
