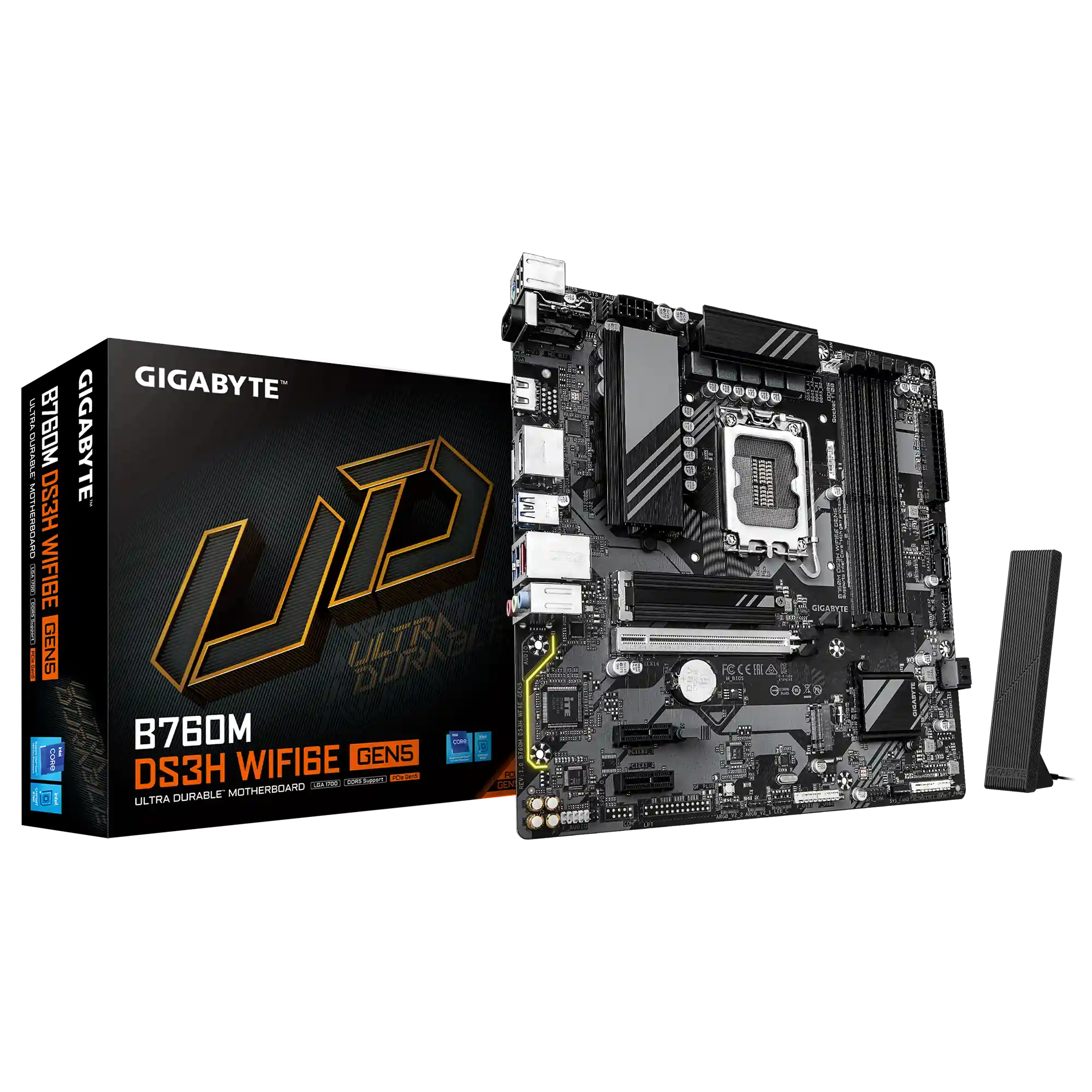

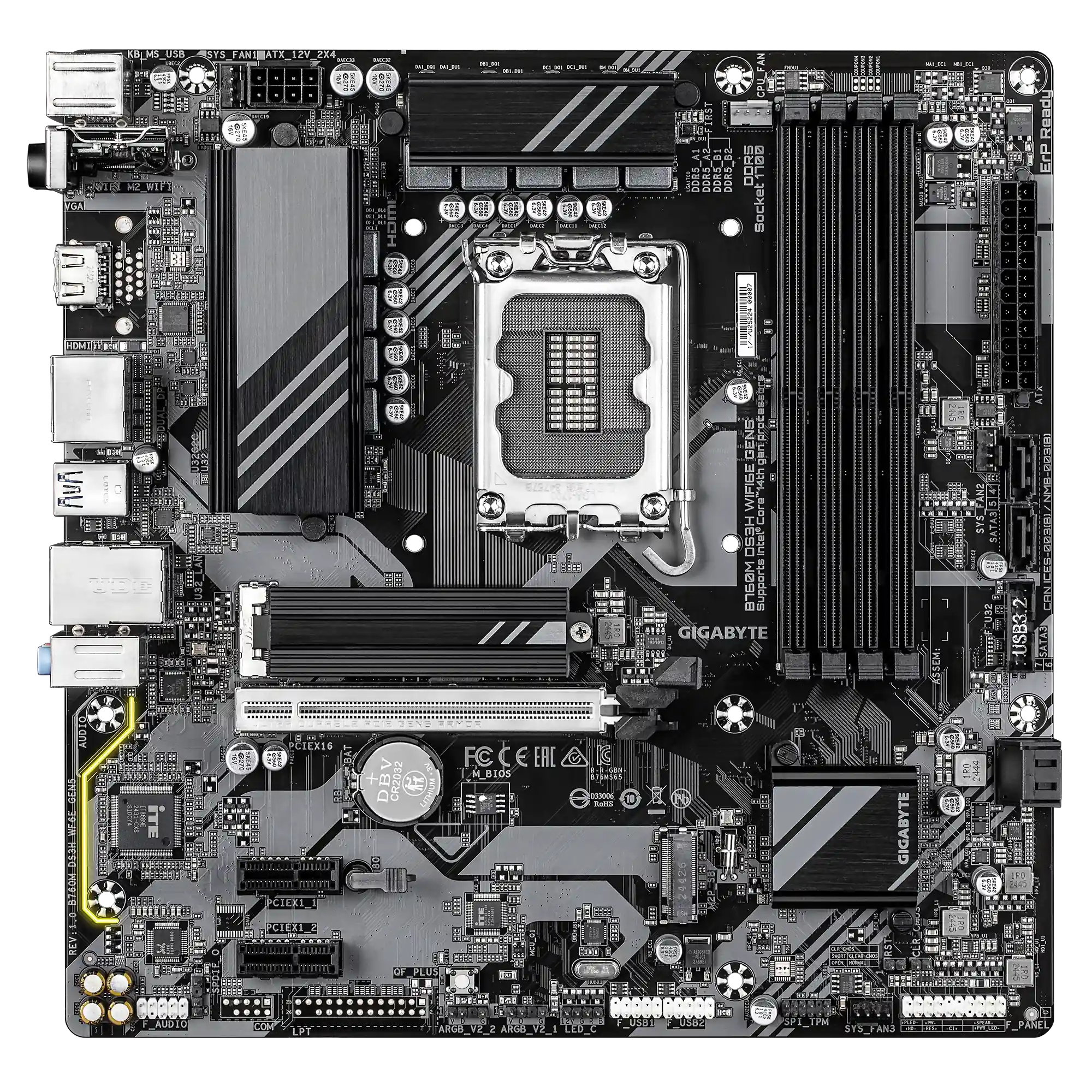

GIGABYTE B760M DS3H DDR5 WIFI6E GEN5
SKU: B760M-DS3H-WF6E-GEN5
- 1 Year Warranty
275,000 IQD 265,000 IQD
GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard – LGA1700, DDR5, PCIe 5.0, Wi-Fi 6E | Buy in Iraq | Alfarah Store
Available now in Iraq at Alfarah Store. This GIGABYTE B760M DS3H WIFI6E GEN5 motherboard is built for gamers, PC builders, and productivity users, delivering support for Intel Core 14th/13th/12th Gen processors on the Intel B760 chipset in a compact Micro-ATX form factor. With a 6+2+1 Phases Hybrid VRM Design on a PCIe 5.0-ready PCB, Dual Channel DDR5 memory across 4 DIMMs with OC support up to DDR5-7600, and dual PCIe 4.0 x4 M.2 slots, this board delivers strong next-gen storage performance and stable power delivery. Built-in Wi-Fi 6E with WIFI EZ-Plug and WIFI Compass (auto-detects the best antenna position), 2.5GbE LAN, and rear USB-C 10Gb/s provide excellent connectivity, while PCIe 5.0 x16 EZ-Latch, Hi-Fi 8-channel audio, and RGB Fusion round out a well-equipped build for Baghdad, Erbil, Basra, and across Iraq.
Specifications:
| Feature | Details |
|---|---|
| Brand / Model | GIGABYTE B760M DS3H WIFI6E GEN5 |
| Socket | LGA 1700 |
| Chipset | Intel B760 |
| CPU Support | Intel Core 14th/13th/12th Gen |
| Form Factor | Micro-ATX |
| Memory | 4x DDR5 DIMM slots, dual channel, up to 256GB, up to DDR5-7600 (OC) |
| Expansion Slots | 1x PCIe 5.0 x16 (PCIe UD Slot, EZ-Latch) |
| Storage | 2x PCIe 4.0 x4 M.2 connectors, 4x SATA 6Gb/s |
| Wireless | Wi-Fi 6E 802.11ax, WIFI EZ-Plug, WIFI Compass |
| Networking | Realtek 2.5GbE LAN |
| Audio | Realtek Audio CODEC, 8-channel HD Audio, High-End Audio Capacitor |

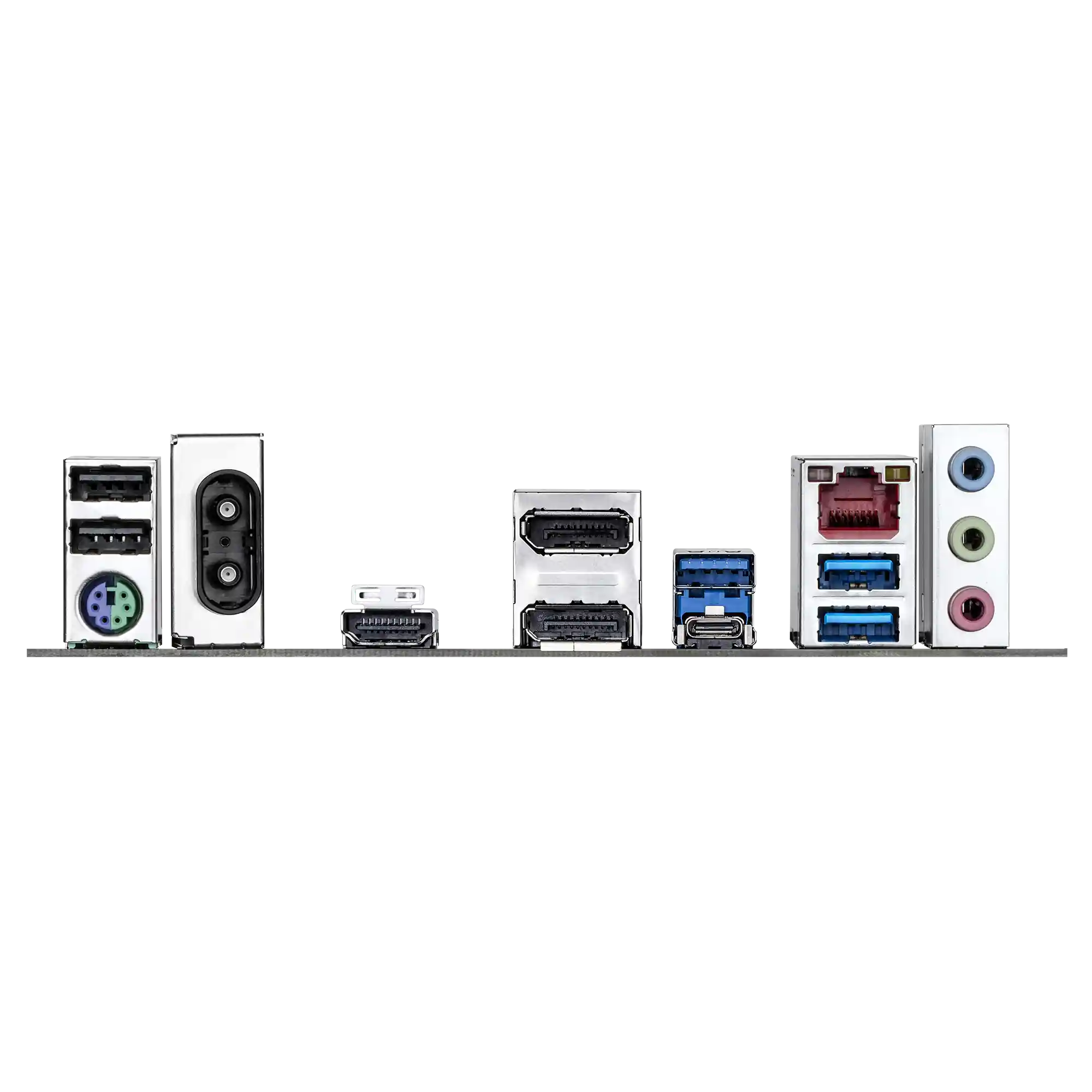

| USB | Rear USB-C 10Gb/s (USB 3.2 Gen 2), 3x USB 3.2 Gen 1, 2x USB 2.0 |
| Video Outputs | 1x HDMI, 2x DisplayPort |
| Fan Headers | CPU fan, multiple chassis fans, Smart Fan 6 with FAN STOP |
| RGB Headers | 2x Addressable LED strip headers, 1x RGB LED strip header |
| VRM | 6+2+1 Phases Hybrid VRM Design |
| Power Connectors | 24-pin ATX, 8-pin CPU (UD Solid Pin) |
| Special Features | Q-Flash Plus, PCIe EZ-Latch, WIFI EZ-Plug |
| OS Support | Windows 11/10 64-bit |
Warranty: 1 Year available at Alfarah Store – Iraq
