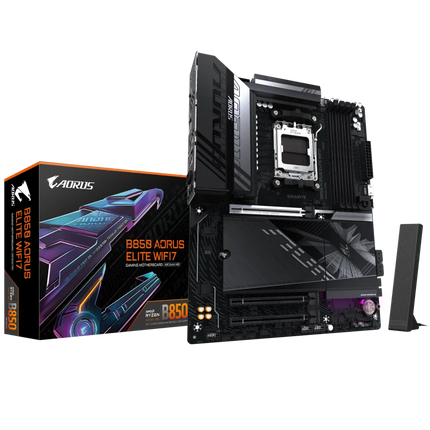

GIGABYTE B850 AORUS ELITE WIFI7 AM5

Description

CPU Support

  • Socket: AMD AM5

  • Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors

  • Visit GIGABYTE's website for the latest CPU support list

Chipset

  • AMD B850

Memory

  • 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM)

  • Dual channel architecture

  • Supported speeds: DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s

  • Supports AMD EXPO™ and Intel® XMP memory profiles

  • Supports non-ECC unbuffered DIMMs (1Rx8 / 2Rx8 / 1Rx16)

  • Note: Actual memory support depends on the installed CPU and configuration

Graphics

  • Integrated AMD Radeon™ Graphics (CPU dependent)

  • 1 x DisplayPort (3840x2160 @ 144 Hz, DisplayPort 1.4, HDR)

  • 1 x Front HDMI port (1920x1080 @ 30 Hz, HDMI 1.4)

  • Graphics support may vary depending on the CPU

Audio

  • Rev. 1.0: Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1 channels, supports S/PDIF Out

  • Rev. 1.1: Realtek® ALC1220 CODEC, supports DSD audio, High Definition Audio, 2/4/5.1/7.1 channels, supports S/PDIF Out

  • Audio jack functions configurable via software

Networking

  • Realtek® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)

  • Realtek® Wi-Fi 7 RTL8922AE

    • Wi-Fi: 802.11 a/b/g/n/ac/ax/be, 2.4 / 5 / 6 GHz

    • Bluetooth 5.4

    • Supports 11be 160 MHz standard

    • Note: Wi-Fi 7 requires Windows 11 SV3. Not supported on Windows 10

Expansion Slots

  • 1 x PCIe x16 (from CPU)

    • Ryzen 9000 / 7000: PCIe 5.0 x16

    • Ryzen 8000 Phoenix 1: PCIe 4.0 x8

    • Ryzen 8000 Phoenix 2: PCIe 4.0 x4

  • 2 x PCIe x1 (from chipset), PCIe 3.0

Storage

  • 1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2, supports 25110/22110/2580/2280 SSDs

  • 1 x M.2 (M2B_CPU): PCIe 4.0 x4/x2 (Phoenix 2: x2 only), supports 25110/22110/2580/2280 SSDs

  • 1 x M.2 (M2C_SB): PCIe 4.0 x4/x2, supports 25110/22110/2580/2280 SSDs

  • 4 x SATA 6Gb/s ports

  • RAID support:

    • NVMe: RAID 0, 1, 5 (Ryzen 9000 only), 10

    • SATA: RAID 0, 1, 10

USB Ports

CPU-controlled:

  • 1 x USB Type-C® (USB 3.2 Gen 2)

  • 2 x USB 3.2 Gen 2 Type-A (red)

  • 4 x USB 2.0/1.1

Chipset-controlled:

  • 1 x USB Type-C® (USB 3.2 Gen 2x2) via internal header

  • 3 x USB 3.2 Gen 1 (1 rear, 2 via internal header)

  • 4 x USB 2.0/1.1 (internal headers)

  • 4 x USB 3.2 Gen 1 via USB 3.2 Gen 1 hub (rear)

Internal I/O Headers

  • 1 x 24-pin ATX main power

  • 1 x 8-pin + 1 x 4-pin ATX 12V power

  • 1 x CPU fan

  • 1 x CPU pump/water cooling

  • 3 x System fan

  • 1 x System pump

  • 3 x ARGB Gen2 headers

  • 1 x RGB header

  • 3 x M.2 slots

  • 4 x SATA ports

  • 1 x USB Type-C® header (Gen 2x2)

  • 1 x USB 3.2 Gen 1 header

  • 2 x USB 2.0/1.1 headers

  • TPM header

  • HDMI port (internal)

  • Power and Reset buttons

  • Reset jumper, Clear CMOS jumper

Back Panel I/O

  • 1 x DisplayPort (CPU dependent)

  • 1 x Q-Flash Plus button

  • 4 x USB 2.0

  • 1 x USB Type-C® (USB 3.2 Gen 2)

  • 5 x USB 3.2 Gen 1

  • 2 x USB 3.2 Gen 2 Type-A (red)

  • 1 x RJ-45 LAN port

  • 2 x Antenna connectors (Wi-Fi)

  • 2 x Audio jacks

  • 1 x Optical S/PDIF Out

Monitoring & Management

  • Voltage, temperature, and fan speed monitoring

  • Water cooling flow detection

  • Fan fail warning and control

  • Hardware noise detection

  • Fan/pump speed control (based on hardware)

BIOS

  • 256 Mbit AMI UEFI BIOS

  • Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Software & Utilities

  • GIGABYTE Control Center (GCC)

  • Q-Flash and Q-Flash Plus

  • Smart Backup

  • Norton Internet Security (OEM)

  • LAN Bandwidth Control Utility

Operating System Support

  • Windows 11 64-bit only

Form Factor

  • ATX (30.5 cm x 24.4 cm)

Avaliable In Iraq

Product form

CPU Support Socket: AMD AM5 Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors Visit GIGABYTE's website for the latest... Read more

Free pickup in our shop(s)

SKU: B850-A-ELITE-WF7

390,000 IQD 350,000 IQD Incl. VAT

    • 1 Year Warranty
