GIGABYTE B850 EAGLE WIFI6E AM5

Description

CPU Support

  • AMD Socket AM5

  • Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series Processors

  • For the latest CPU compatibility, refer to GIGABYTE's official support list

Chipset

  • AMD B850

Memory

  • 4 x DDR5 DIMM slots, up to 256GB (64GB per DIMM)

  • Dual channel memory architecture

  • Supported memory speeds:
    DDR5 8200(O.C), 8000(O.C), 7950(O.C), 7900(O.C), 7800(O.C), 7600(O.C), 7400(O.C), 7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400(O.C), 6200(O.C), 6000(O.C), 5800(O.C), 5600(O.C), 5200, 4800, 4400 MT/s

  • Supports non-ECC unbuffered DIMM (1Rx8 / 2Rx8 / 1Rx16) modules

  • Supports AMD EXPO™ and Intel XMP profiles

  • Memory speed and compatibility depend on CPU and configuration

Onboard Graphics

  • Integrated AMD Radeon™ Graphics (dependent on CPU)

  • 1 x DisplayPort (max resolution: 3840x2160 @ 144Hz)

    • Supports DisplayPort 1.4 and HDR

  • 1 x HDMI Port (max resolution: 4096x2160 @ 60Hz)

    • Supports HDMI 2.1, HDCP 2.3, and HDR

  • Graphics output capabilities may vary by CPU

Audio

  • Realtek® Audio CODEC

  • Supports 2/4/5.1/7.1-channel HD audio

  • Jack functionality configurable via audio software

Networking

  • Realtek® 1GbE LAN

    • Supports 10/100/1000 Mbps

  • Wireless Communication (based on PCB revision):

    • Rev 1.0: Intel® Wi-Fi 6E AX210 + Bluetooth 5.3

    • Rev 1.1: Realtek® Wi-Fi 6E RTL8852CE + Bluetooth 5.3

    • Supports 2.4/5/6 GHz bands and 160MHz channel width

    • Actual speeds may vary by environment and hardware

Expansion Slots

  • 1 x PCIe x16 slot (from CPU)

    • Ryzen 9000 / 7000: PCIe 5.0 x16

    • Ryzen 8000 Phoenix 1: PCIe 4.0 x8

    • Ryzen 8000 Phoenix 2: PCIe 4.0 x4

  • 3 x PCIe x1 slots (from chipset, PCIe 3.0)

Storage Interfaces

  • 1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2, type 22110/2280

  • 1 x M.2 (M2B_CPU): PCIe 4.0 x4/x2, type 22110/2280

  • 1 x M.2 (M2C_SB): PCIe 4.0 x2, type 22110/2280

  • 4 x SATA 6Gb/s ports

  • NVMe RAID support: RAID 0, 1, 5 (Ryzen 9000 only), 10

  • SATA RAID support: RAID 0, 1, 10

USB Ports

CPU-controlled:

  • 1 x USB Type-C® (USB 3.2 Gen 1)

  • 2 x USB 3.2 Gen 2 Type-A (red)

Chipset-controlled:

  • 1 x USB Type-C® (USB 3.2 Gen 1, via internal header)

  • 4 x USB 3.2 Gen 1 ports (2 rear, 2 internal)

  • 4 x USB 2.0 ports (rear)

  • 4 x USB 2.0 ports (internal headers)

Internal I/O Connectors

  • 1 x 24-pin ATX main power connector

  • 1 x 8-pin + 1 x 4-pin ATX 12V power connectors

  • 1 x CPU fan header

  • 1 x CPU pump/water cooling header

  • 3 x System fan headers

  • 1 x System fan/water pump header

  • 3 x ARGB Gen2 LED headers

  • 1 x RGB LED header

  • 3 x M.2 slots

  • 4 x SATA ports

  • 1 x Front panel header

  • 1 x Front panel audio header

  • 1 x USB Type-C® (USB 3.2 Gen 1) internal header

  • 1 x USB 3.2 Gen 1 header

  • 2 x USB 2.0 headers

  • 1 x TPM header (GC-TPM2.0 SPI module support)

  • 1 x Reset button

  • 1 x Reset jumper

  • 1 x Clear CMOS jumper

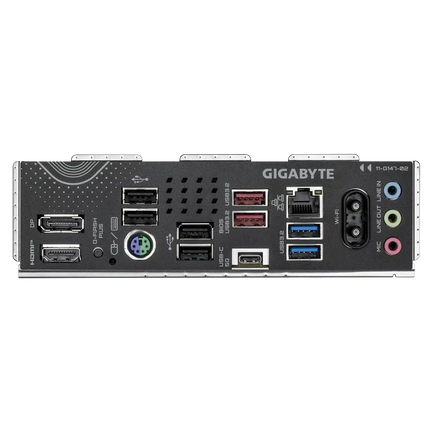

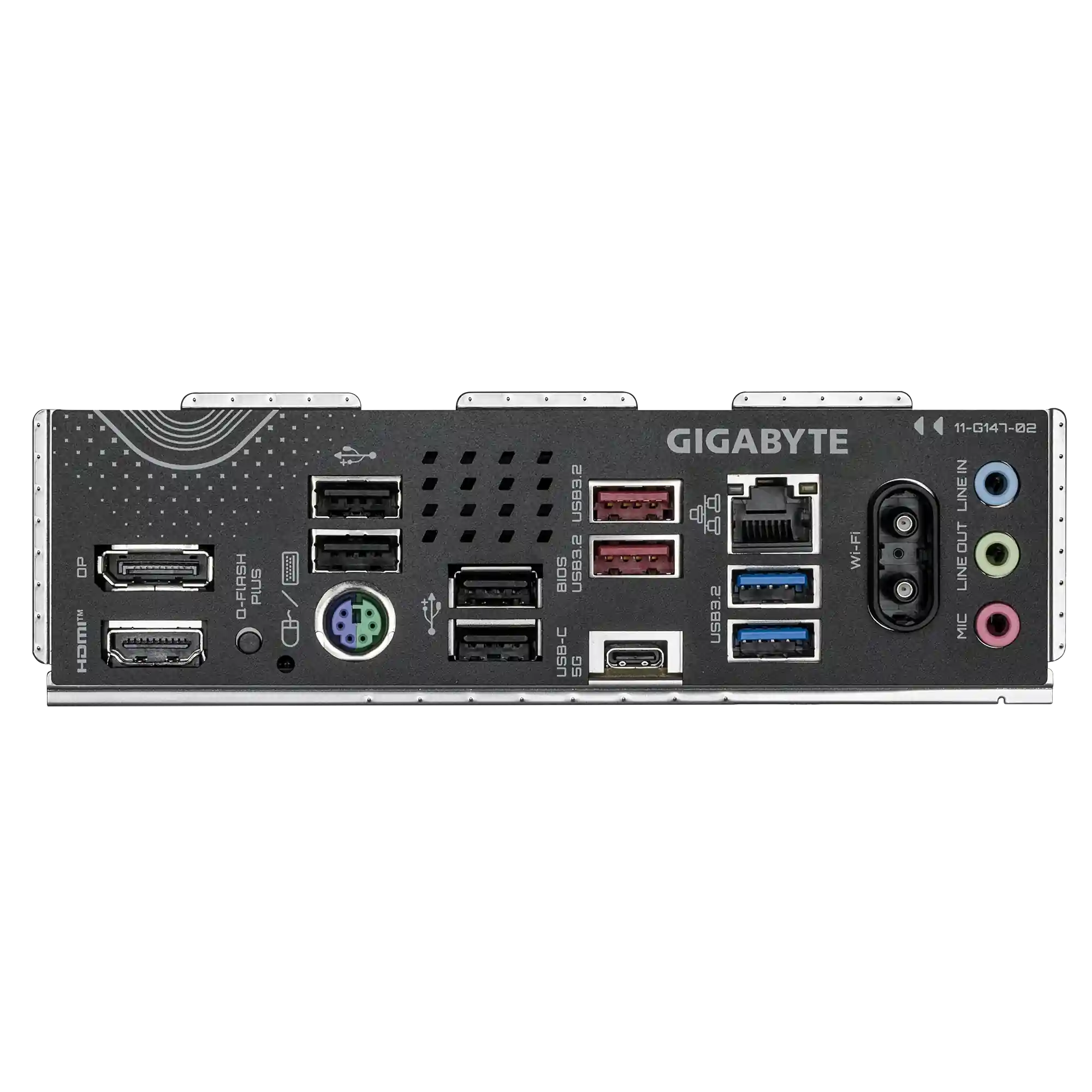

Back Panel I/O

  • 1 x DisplayPort (CPU dependent)

  • 1 x HDMI port (CPU dependent)

  • 1 x Q-Flash Plus button

  • 4 x USB 2.0 ports

  • 2 x USB 3.2 Gen 2 Type-A (red)

  • 2 x USB 3.2 Gen 1 ports

  • 1 x USB Type-C® (USB 3.2 Gen 1)

  • 1 x RJ-45 LAN port

  • 1 x PS/2 keyboard/mouse combo port

  • 2 x Antenna connectors

  • 3 x Audio jacks

I/O Controller

  • iTE® Controller for system monitoring and interface management

Hardware Monitoring

  • Voltage, temperature, and fan speed monitoring

  • Water cooling flow detection

  • Fan fail warning and speed control (based on fan/pump model)

BIOS

  • 1 x 256 Mbit AMI UEFI BIOS

  • Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Software & Features

  • GIGABYTE Control Center (GCC)

  • Q-Flash and Q-Flash Plus

  • Smart Backup utility

  • Norton® Internet Security (OEM version)

  • LAN bandwidth management tool

Operating System Support

  • Windows 11 64-bit

  • Windows 10 64-bit

Form Factor

  • ATX, 30.5 cm x 24.4 cm

Avaliable In Iraq

Product form

CPU Support AMD Socket AM5 Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series Processors For the latest CPU compatibility,... Read more

Free pickup in our shop(s)

SKU: B850-EAGLE-WIFI6E

2 in stock

325,000 IQD 285,000 IQD Incl. VAT

    • 1 Year Warranty
