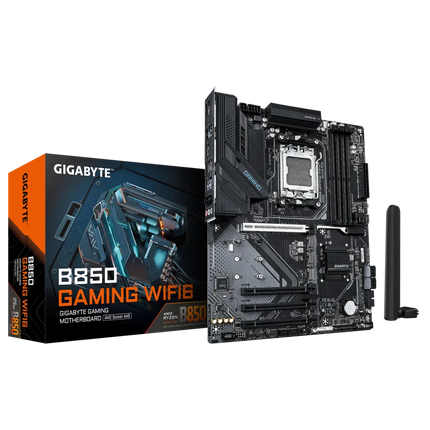

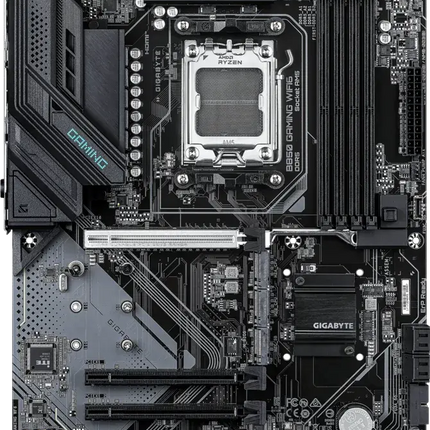

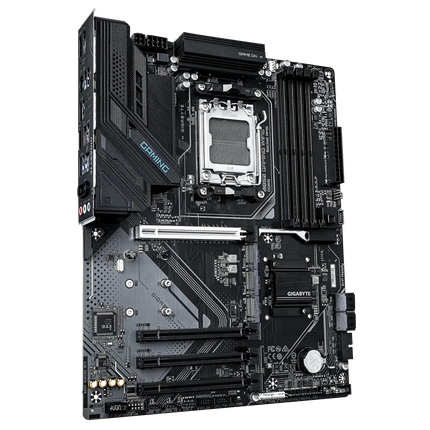

GIGABYTE B850 GAMING WIFI6 AM5

Description

CPU Support

  • Socket: AMD AM5

  • Compatible with:

    • AMD Ryzen™ 9000 Series

    • AMD Ryzen™ 8000 Series

    • AMD Ryzen™ 7000 Series

  • Visit GIGABYTE’s website for the latest CPU compatibility list

Chipset

  • AMD B850

Memory

  • 4 × DDR5 DIMM slots (Dual Channel)

  • Maximum Capacity: 256 GB (64 GB per DIMM)

  • Supported Speeds:
    DDR5 8200(O.C), 8000(O.C), 7950(O.C), 7900(O.C), 7800(O.C), 7600(O.C),
    7400(O.C), 7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400(O.C),
    6200(O.C), 6000(O.C), 5800(O.C), 5600(O.C), 5200, 4800, 4400 MT/s

  • Supports:

    • Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules

    • AMD EXPO™ and Intel® XMP profiles

  • Memory support depends on CPU and configuration

Onboard Graphics (requires supported Ryzen APU)

  • DisplayPort 1.4: Up to 3840 × 2160 @ 144Hz (HDR supported)

  • HDMI 2.1: Up to 4096 × 2160 @ 60Hz (HDR, HDCP 2.3, TMDS)

  • Graphics capabilities vary by processor

Audio

  • Realtek® Audio CODEC

  • High Definition Audio: 2/4/5.1/7.1 channels

  • S/PDIF Out supported

  • Jack functionality configurable via software

LAN & Wireless

  • LAN: Realtek® GbE (1 Gbps / 100 Mbps / 10 Mbps)

  • Wi-Fi: Realtek® Wi-Fi 6 RTL8851BE

    • Dual Band (2.4GHz / 5GHz), 802.11ax

    • Bluetooth® 5.3

    • 11ax 80MHz support

    • Actual performance depends on environment

Expansion Slots

  • 1 × PCIe x16 (CPU linked):

    • Ryzen 9000/7000: PCIe 5.0 x16

    • Ryzen 8000 Phoenix 1: PCIe 4.0 x8

    • Ryzen 8000 Phoenix 2: PCIe 4.0 x4

  • 3 × PCIe x16 (Chipset linked): PCIe 3.0 x1

Primary PCIe x16 slot supports GPU or NVMe SSD only

Storage Interfaces

  • M.2 Slots:

    • M2A_CPU: PCIe 5.0 x4/x2 (22110/2280)

    • M2B_CPU: PCIe 4.0 x4/x2 (22110/2280)

    • M2C_SB: PCIe 4.0 x2 (22110/2280)

  • SATA Ports:

    • 4 × SATA 6Gb/s

  • RAID Support:

    • NVMe SSDs: RAID 0, 1, 5*, 10 (*RAID 5 only with Ryzen 9000)

    • SATA Devices: RAID 0, 1, 10

USB Ports

  • Rear I/O (CPU):

    • 1 × USB 3.2 Gen 1 Type-C

    • 2 × USB 3.2 Gen 2 Type-A (Red)

  • Rear I/O (Chipset):

    • 2 × USB 3.2 Gen 1

    • 4 × USB 2.0/1.1

  • Internal Headers:

    • 1 × USB 3.2 Gen 1 Type-C

    • 2 × USB 3.2 Gen 1

    • 2 × USB 2.0 headers (4 ports)

Internal I/O Connectors

  • 1 × 24-pin ATX Main Power

  • 1 × 8-pin ATX 12V

  • 1 × 4-pin ATX 12V

  • 1 × CPU Fan Header

  • 1 × CPU/WP Fan Header

  • 3 × System Fan Headers

  • 1 × System/WP Fan Header

  • 3 × Addressable RGB Gen2 Headers

  • 1 × RGB LED Header

  • 3 × M.2 Sockets

  • 4 × SATA 6Gb/s Ports

  • 1 × Front Panel Header

  • 1 × Front Panel Audio Header

  • 1 × USB 3.2 Gen 1 Header

  • 2 × USB 2.0 Headers

  • 1 × USB 3.2 Gen 1 Type-C Header

  • 1 × TPM Header

  • 1 × Reset Jumper

  • 1 × Clear CMOS Jumper

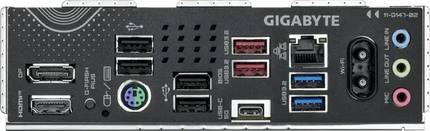

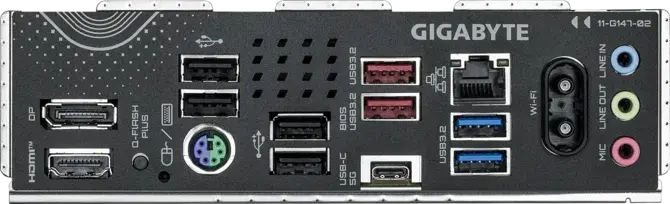

Back Panel I/O

  • 1 × DisplayPort

  • 1 × HDMI

  • 1 × Q-Flash Plus Button

  • 4 × USB 2.0

  • 1 × PS/2 Keyboard/Mouse Combo

  • 2 × USB 3.2 Gen 2 Type-A (Red)

  • 1 × USB 3.2 Gen 1 Type-C

  • 2 × USB 3.2 Gen 1

  • 1 × RJ-45 LAN Port

  • 2 × Wi-Fi Antenna Connectors

  • 3 × Audio Jacks

I/O Controller

  • iTE® I/O Controller Chip

Hardware Monitoring

  • Voltage / Temperature / Fan Speed / Water Flow Monitoring

  • Fan Fail Warning

  • Smart Fan Speed Control

  • Support depends on the fan/pump installed

BIOS

  • 1 × 256 Mbit AMI UEFI BIOS

  • Supports:

    • PnP 1.0a

    • DMI 2.7

    • WfM 2.0

    • SMBIOS 2.7

    • ACPI 5.0

Unique Features

  • GIGABYTE Control Center (GCC)

  • Q-Flash & Q-Flash Plus

  • Smart Backup

Bundled Software

  • Norton® Internet Security (OEM)

  • LAN Bandwidth Management Utility

Operating System Support

  • Windows 11 64-bit

  • Windows 10 64-bit

Form Factor

  • ATX (30.5 cm × 24.4 cm)

available In Iraq

Product form

CPU Support Socket: AMD AM5 Compatible with: AMD Ryzen™ 9000 Series AMD Ryzen™ 8000 Series AMD Ryzen™ 7000 Series Visit... Read more

Free pickup in our shop(s)

SKU: B850-GAMING-WF6

275,000 IQD 250,000 IQD

      Description

      CPU Support

      • Socket: AMD AM5

      • Compatible with:

        • AMD Ryzen™ 9000 Series

        • AMD Ryzen™ 8000 Series

        • AMD Ryzen™ 7000 Series

      • Visit GIGABYTE’s website for the latest CPU compatibility list

      Chipset

      • AMD B850

      Memory

      • 4 × DDR5 DIMM slots (Dual Channel)

      • Maximum Capacity: 256 GB (64 GB per DIMM)

      • Supported Speeds:
        DDR5 8200(O.C), 8000(O.C), 7950(O.C), 7900(O.C), 7800(O.C), 7600(O.C),
        7400(O.C), 7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400(O.C),
        6200(O.C), 6000(O.C), 5800(O.C), 5600(O.C), 5200, 4800, 4400 MT/s

      • Supports:

        • Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules

        • AMD EXPO™ and Intel® XMP profiles

      • Memory support depends on CPU and configuration

      Onboard Graphics (requires supported Ryzen APU)

      • DisplayPort 1.4: Up to 3840 × 2160 @ 144Hz (HDR supported)

      • HDMI 2.1: Up to 4096 × 2160 @ 60Hz (HDR, HDCP 2.3, TMDS)

      • Graphics capabilities vary by processor

      Audio

      • Realtek® Audio CODEC

      • High Definition Audio: 2/4/5.1/7.1 channels

      • S/PDIF Out supported

      • Jack functionality configurable via software

      LAN & Wireless

      • LAN: Realtek® GbE (1 Gbps / 100 Mbps / 10 Mbps)

      • Wi-Fi: Realtek® Wi-Fi 6 RTL8851BE

        • Dual Band (2.4GHz / 5GHz), 802.11ax

        • Bluetooth® 5.3

        • 11ax 80MHz support

        • Actual performance depends on environment

      Expansion Slots

      • 1 × PCIe x16 (CPU linked):

        • Ryzen 9000/7000: PCIe 5.0 x16

        • Ryzen 8000 Phoenix 1: PCIe 4.0 x8

        • Ryzen 8000 Phoenix 2: PCIe 4.0 x4

      • 3 × PCIe x16 (Chipset linked): PCIe 3.0 x1

      Primary PCIe x16 slot supports GPU or NVMe SSD only

      Storage Interfaces

      • M.2 Slots:

        • M2A_CPU: PCIe 5.0 x4/x2 (22110/2280)

        • M2B_CPU: PCIe 4.0 x4/x2 (22110/2280)

        • M2C_SB: PCIe 4.0 x2 (22110/2280)

      • SATA Ports:

        • 4 × SATA 6Gb/s

      • RAID Support:

        • NVMe SSDs: RAID 0, 1, 5*, 10 (*RAID 5 only with Ryzen 9000)

        • SATA Devices: RAID 0, 1, 10

      USB Ports

      • Rear I/O (CPU):

        • 1 × USB 3.2 Gen 1 Type-C

        • 2 × USB 3.2 Gen 2 Type-A (Red)

      • Rear I/O (Chipset):

        • 2 × USB 3.2 Gen 1

        • 4 × USB 2.0/1.1

      • Internal Headers:

        • 1 × USB 3.2 Gen 1 Type-C

        • 2 × USB 3.2 Gen 1

        • 2 × USB 2.0 headers (4 ports)

      Internal I/O Connectors

      • 1 × 24-pin ATX Main Power

      • 1 × 8-pin ATX 12V

      • 1 × 4-pin ATX 12V

      • 1 × CPU Fan Header

      • 1 × CPU/WP Fan Header

      • 3 × System Fan Headers

      • 1 × System/WP Fan Header

      • 3 × Addressable RGB Gen2 Headers

      • 1 × RGB LED Header

      • 3 × M.2 Sockets

      • 4 × SATA 6Gb/s Ports

      • 1 × Front Panel Header

      • 1 × Front Panel Audio Header

      • 1 × USB 3.2 Gen 1 Header

      • 2 × USB 2.0 Headers

      • 1 × USB 3.2 Gen 1 Type-C Header

      • 1 × TPM Header

      • 1 × Reset Jumper

      • 1 × Clear CMOS Jumper

      Back Panel I/O

      • 1 × DisplayPort

      • 1 × HDMI

      • 1 × Q-Flash Plus Button

      • 4 × USB 2.0

      • 1 × PS/2 Keyboard/Mouse Combo

      • 2 × USB 3.2 Gen 2 Type-A (Red)

      • 1 × USB 3.2 Gen 1 Type-C

      • 2 × USB 3.2 Gen 1

      • 1 × RJ-45 LAN Port

      • 2 × Wi-Fi Antenna Connectors

      • 3 × Audio Jacks

      I/O Controller

      • iTE® I/O Controller Chip

      Hardware Monitoring

      • Voltage / Temperature / Fan Speed / Water Flow Monitoring

      • Fan Fail Warning

      • Smart Fan Speed Control

      • Support depends on the fan/pump installed

      BIOS

      • 1 × 256 Mbit AMI UEFI BIOS

      • Supports:

        • PnP 1.0a

        • DMI 2.7

        • WfM 2.0

        • SMBIOS 2.7

        • ACPI 5.0

      Unique Features

      • GIGABYTE Control Center (GCC)

      • Q-Flash & Q-Flash Plus

      • Smart Backup

      Bundled Software

      • Norton® Internet Security (OEM)

      • LAN Bandwidth Management Utility

      Operating System Support

      • Windows 11 64-bit

      • Windows 10 64-bit

      Form Factor

      • ATX (30.5 cm × 24.4 cm)

      available In Iraq
