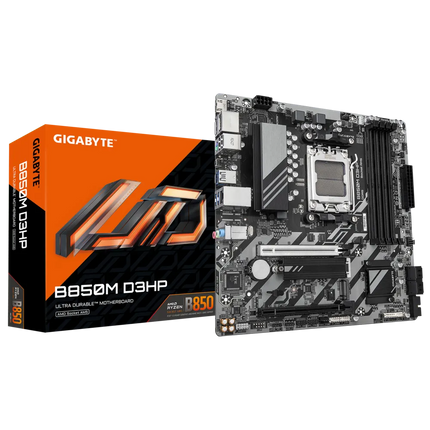

GIGABYTE B850M D3HP AM5

Description

CPU Support

  • AMD Socket AM5

  • Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series Processors

  • For up-to-date CPU compatibility, refer to GIGABYTE’s official support list

Chipset

  • AMD B850

Memory

  • 4 x DDR5 DIMM slots, up to 256GB (64GB per DIMM)

  • Dual channel memory architecture

  • Supported memory speeds:
    DDR5 8200(OC), 8000(OC), 7800(OC), 7600(OC), 7200(OC), 7000(OC), 6800(OC), 6666(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5600(OC), 5200, 4800, 4400 MT/s

  • Supports AMD EXPO™ and Intel® XMP memory profiles

  • Supports non-ECC unbuffered DIMM modules (1Rx8 / 2Rx8 / 1Rx16)

  • Note: Memory speed and support may vary based on CPU and configuration

Integrated Graphics

  • AMD Radeon™ Graphics (based on CPU)

  • 1 x HDMI 2.1 port (up to 4096x2160 @ 60Hz, HDCP 2.3, HDR)

  • 2 x DisplayPort 1.4 (up to 3840x2160 @ 144Hz)

  • Supports up to 3 displays simultaneously

  • Actual graphics support may vary by CPU

Audio

  • Realtek® Audio CODEC

  • High Definition Audio, 2/4/5.1/7.1-channel

  • Audio jack functions configurable via bundled software

LAN

  • Realtek® GbE LAN (1 Gbps / 100 Mbps / 10 Mbps)

Expansion Slots

  • 1 x PCIe x16 (from CPU)

    • Ryzen 9000 / 7000: PCIe 5.0 x16

    • Ryzen 8000 Phoenix 1: PCIe 4.0 x8

    • Ryzen 8000 Phoenix 2: PCIe 4.0 x4

    • Only supports graphics cards or NVMe SSDs

  • 1 x PCIe x16 (from chipset), PCIe 3.0 x4

Storage Interfaces

  • 1 x M.2 (M2A_CPU):

    • PCIe 5.0 x4/x2, supports type 2580 / 2280 SSDs

  • 1 x M.2 (M2B_CPU):

    • PCIe 4.0 x4/x2 (Phoenix 2: x2 only), supports type 22110 / 2280 SSDs

  • 4 x SATA 6Gb/s ports

  • NVMe RAID 0 / 1 / 5 (Ryzen 9000 only) / 10

  • SATA RAID 0 / 1 / 10

USB Ports

CPU-based:

  • 1 x USB Type-C® (USB 3.2 Gen 1) – rear

  • 1 x USB 3.2 Gen 1 – rear

  • 1 x USB 2.0 – rear

Chipset-based:

  • 1 x USB Type-C® (USB 3.2 Gen 1) – internal

  • 4 x USB 3.2 Gen 1 (2 rear, 2 internal)

  • 5 x USB 2.0/1.1 (1 rear, 4 internal)

Internal I/O Connectors

  • 1 x 24-pin ATX main power connector

  • 1 x 8-pin ATX 12V power connector

  • 1 x CPU fan header

  • 1 x CPU water pump header

  • 1 x system fan header

  • 1 x system fan/pump header

  • 2 x Addressable RGB Gen2 headers

  • 1 x RGB LED header

  • 2 x M.2 slots

  • 4 x SATA 6Gb/s ports

  • 1 x Front panel header

  • 1 x Front panel audio header

  • 1 x USB Type-C® internal header (USB 3.2 Gen 1)

  • 1 x USB 3.2 Gen 1 internal header

  • 2 x USB 2.0/1.1 internal headers

  • 1 x TPM header (for GC-TPM2.0 SPI modules)

  • 1 x Reset jumper

  • 1 x Clear CMOS jumper

Back Panel I/O

  • 1 x HDMI port (CPU dependent)

  • 2 x DisplayPorts (CPU dependent)

  • 1 x PS/2 keyboard/mouse combo port

  • 1 x Q-Flash Plus button

  • 1 x USB Type-C® (USB 3.2 Gen 1)

  • 3 x USB 3.2 Gen 1 ports

  • 2 x USB 2.0 ports

  • 1 x RJ-45 LAN port

  • 3 x Audio jacks

I/O Controller

  • iTE® Controller

Monitoring Features

  • Voltage, temperature, fan speed, and water cooling flow rate detection

  • Fan fail warning and smart fan/pump speed control

BIOS

  • 256 Mbit AMI UEFI BIOS

  • Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  • GIGABYTE Control Center (GCC) support

  • Q-Flash and Q-Flash Plus

  • Smart Backup

Bundled Software

  • Norton® Internet Security (OEM)

  • LAN Bandwidth Management Utility

Operating System Support

  • Windows 11 64-bit

  • Windows 10 64-bit

Form Factor

  • Micro ATX (24.4 cm x 24.4 cm)

available In Iraq

Product form

CPU Support AMD Socket AM5 Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series Processors For up-to-date CPU compatibility, refer... Read more

Free pickup in our shop(s)

SKU: B850M-D3HP

220,000 IQD 200,000 IQD

    • 1 Year Warranty
