GIGABYTE B850M DS3H
SKU: B850M-DS3H
- 1 Year Warranty
235,000 IQD
- Shipped today? Order within:

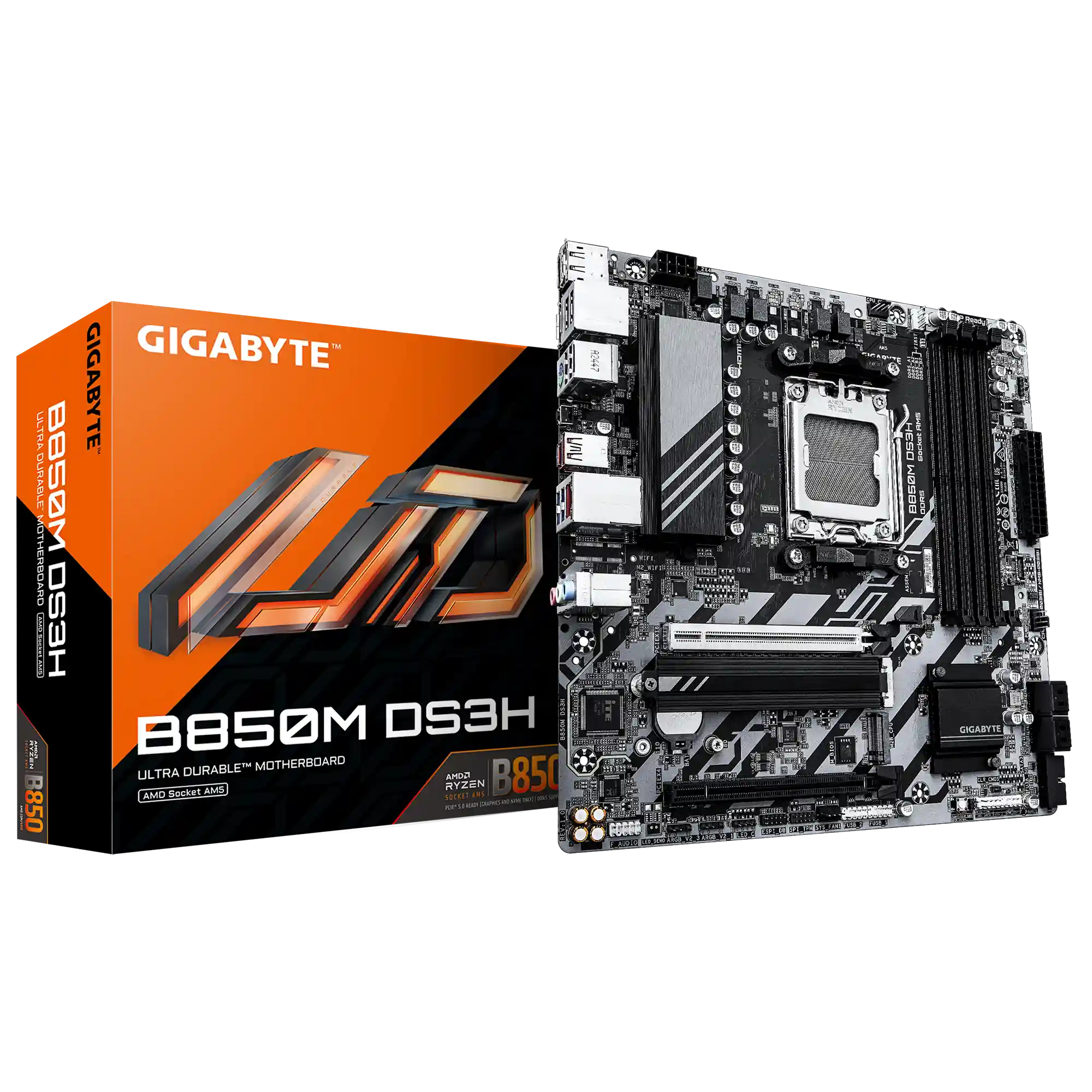

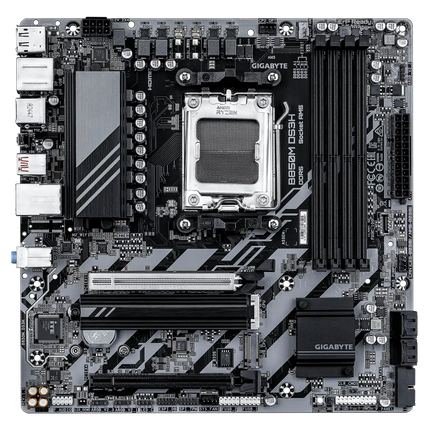

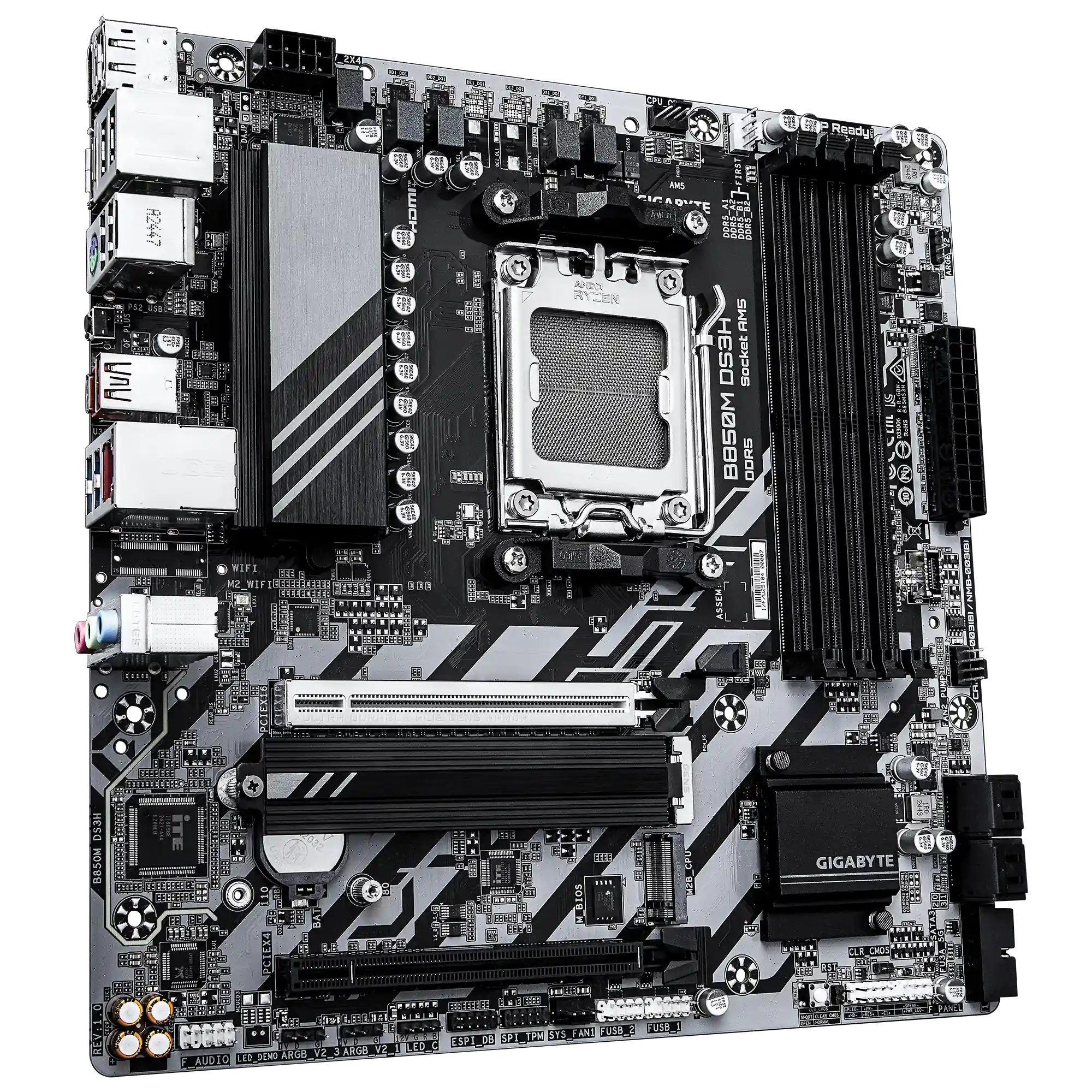

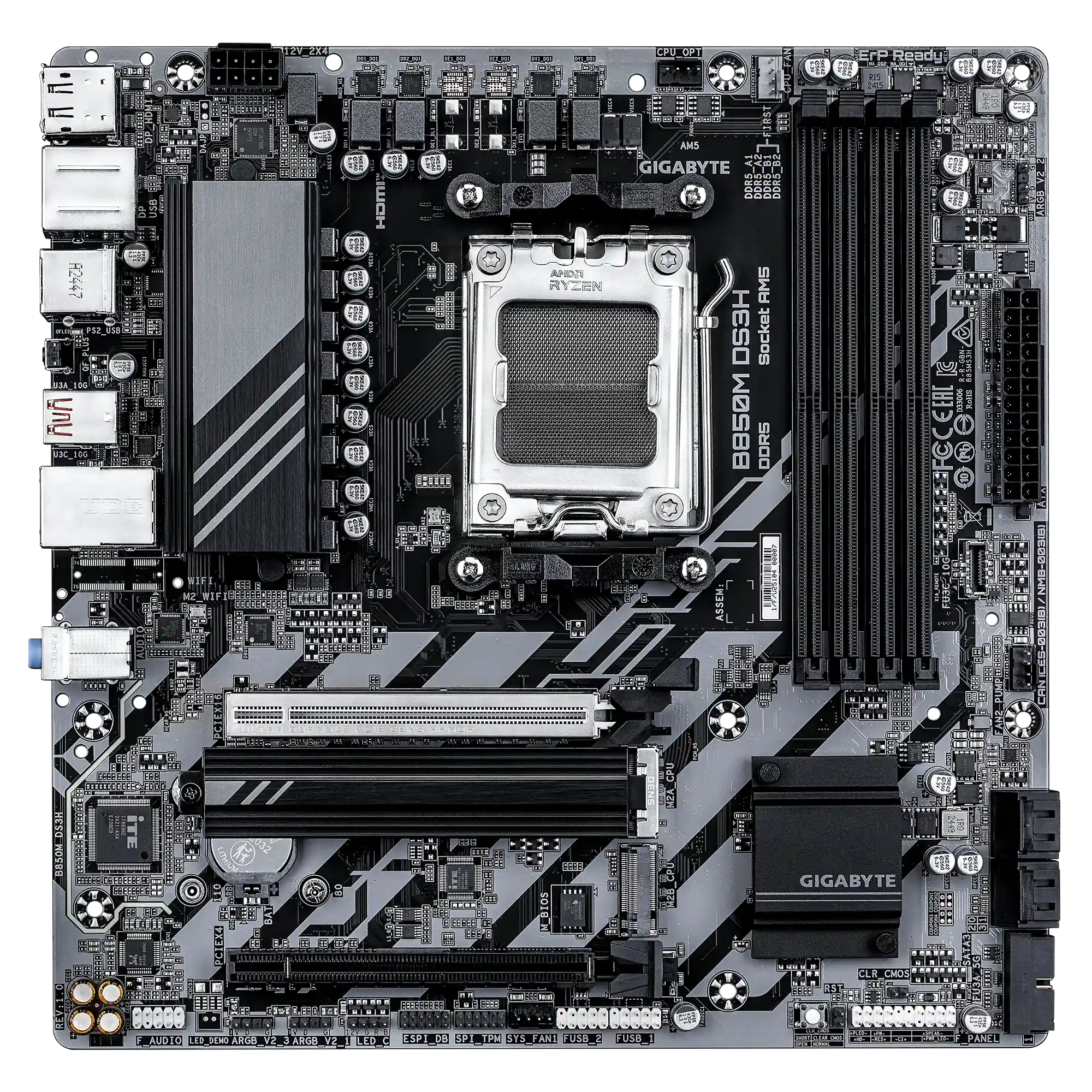

GIGABYTE B850M DS3H Motherboard – AM5, DDR5, PCIe 5.0, Dual M.2 | Buy in Iraq | Alfarah Store
Available now in Iraq at Alfarah Store. This GIGABYTE B850M DS3H motherboard is built for gamers looking to build a compact, high-performance PC, delivering support for AMD Ryzen 9000/8000/7000 Series processors on the AMD B850 chipset in a compact Micro-ATX form factor. With an 8+2+2 Twin Digital VRM Design (4+4 phases parallel power, 60A DrMOS) on a 6-layer 2X copper PCB, Dual Channel DDR5 memory across 4 DIMMs with AMD EXPO support up to DDR5-8200 (OC), and dual M.2 slots (1x PCIe 5.0, 1x PCIe 4.0) backed by M.2 Thermal Guard, this board delivers excellent next-gen storage performance. A PCIe 5.0 x16 slot with EZ-Latch, 2.5GbE LAN, and front USB-C 10Gb/s round out a well-connected, DIY-friendly build for Baghdad, Erbil, Basra, and across Iraq.
Specifications:
| Feature | Details |
|---|---|
| Brand / Model | GIGABYTE B850M DS3H (Rev. 1.0/1.1) |
| Socket | AM5 |
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen 9000/8000/7000 Series |
| Form Factor | Micro-ATX |
| Memory | 4x DDR5 DIMM slots, dual channel, up to 256GB (64GB/DIMM), AMD EXPO support, up to DDR5-8200 (OC) |
| Expansion Slots | 1x PCIe 5.0 x16 (PCIe UD Slot, EZ-Latch), 1x PCIe 3.0 x4 |
| Storage | 2x M.2 (1x PCIe 5.0, 1x PCIe 4.0, 2280/22110), 4x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 (NVMe) |
| Networking | Realtek 2.5GbE LAN |
| Audio | Realtek Audio CODEC, 7.1-channel HD Audio |

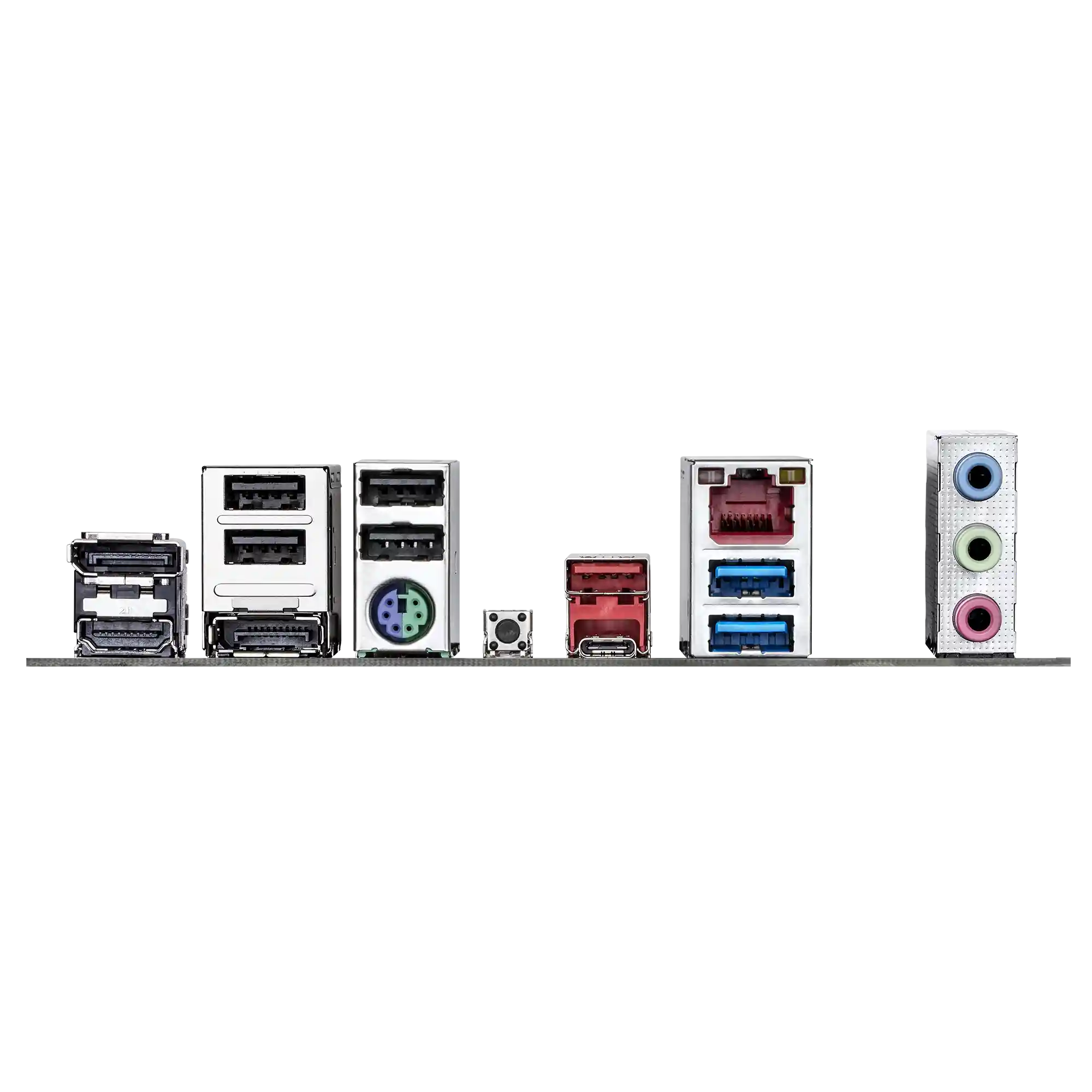

| USB (Rear) | 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 |
| USB (Front Header) | USB-C 10Gb/s |
| Video Outputs | 2x DisplayPort (3840x2160@144Hz), 1x HDMI |
| Fan Headers | 4x PWM/DC, Dual Fan Curve Mode (Smart Fan 6) |
| RGB Headers | 3x Addressable LED headers |
| VRM | 8+2+2 Twin Digital VRM, 4+4 phases parallel power design |
| Power Connectors | 24-pin ATX, 8-pin CPU (UD Solid Pin) |
| Special Features | Q-Flash Plus, PCIe EZ-Latch, M.2 EZ-Latch Plus, EZ-Debug Zone, X3D Turbo Mode |
| OS Support | Windows 11/10 64-bit |
Warranty: 1 Year available at Alfarah Store – Iraq
