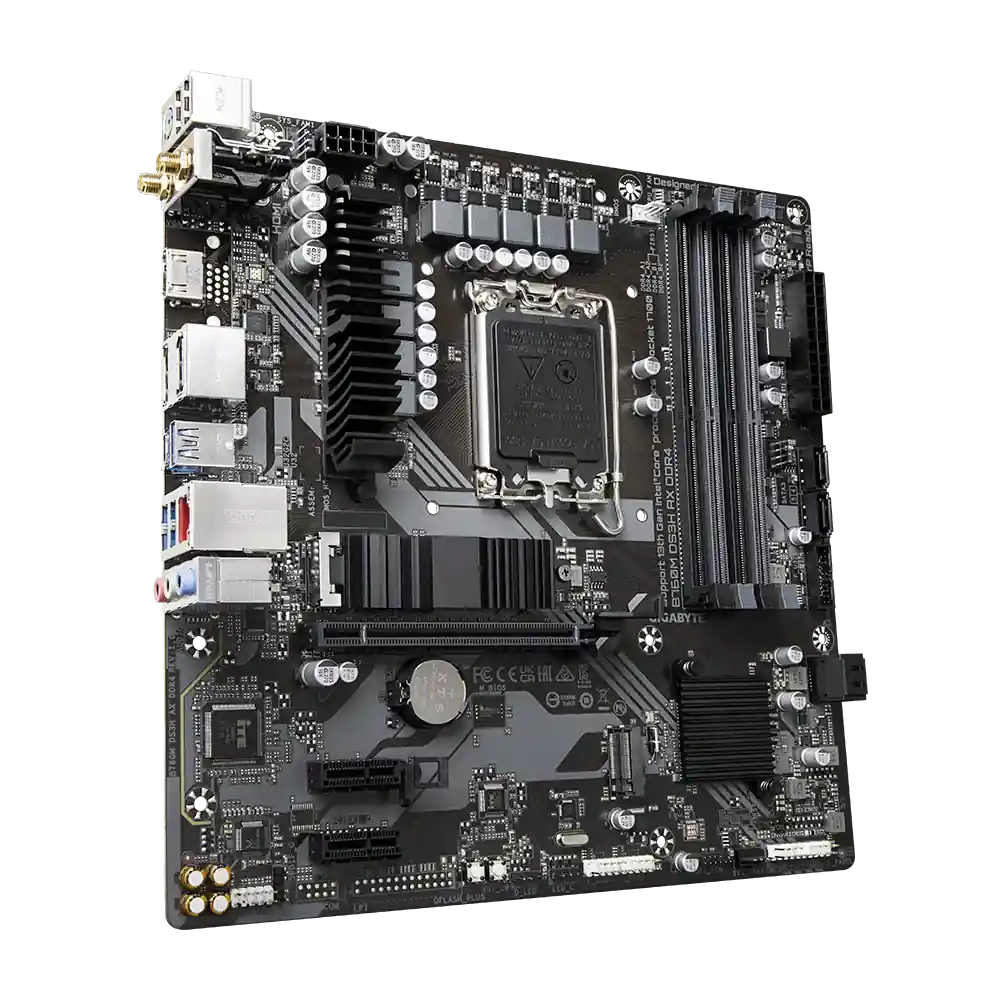

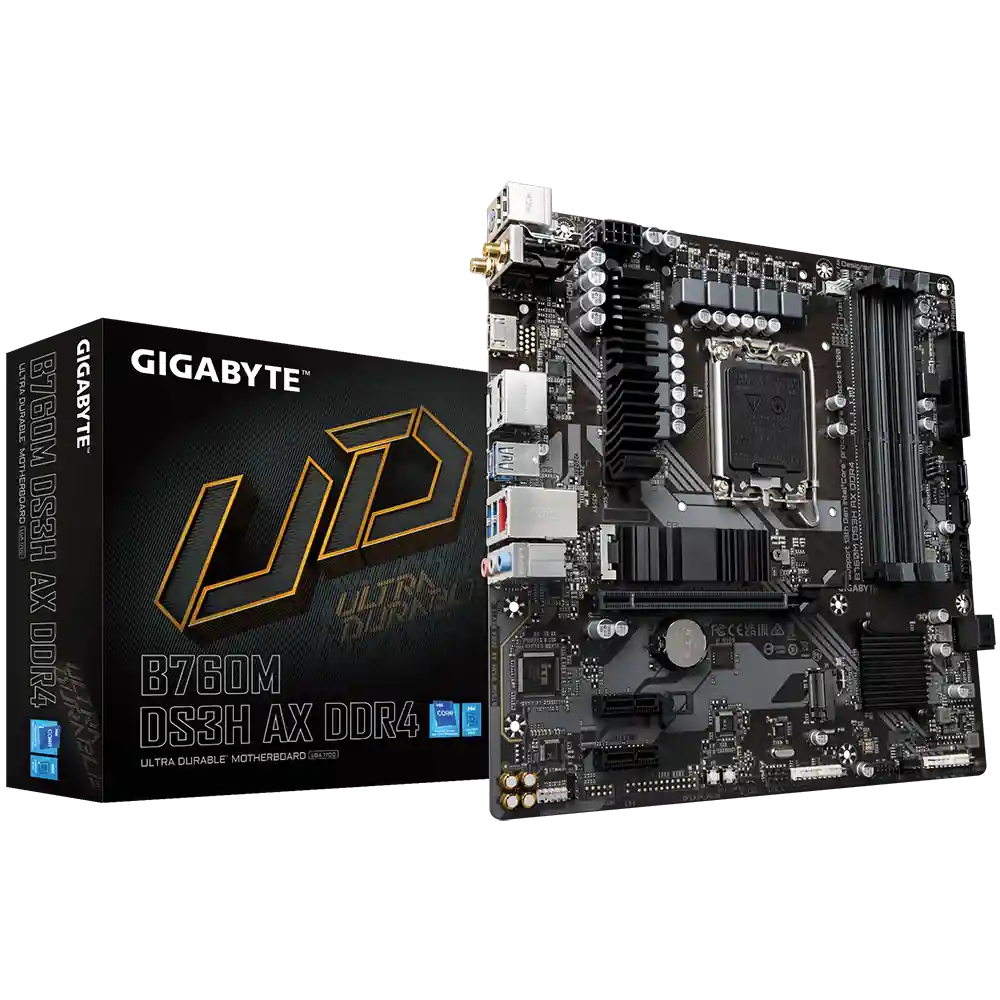

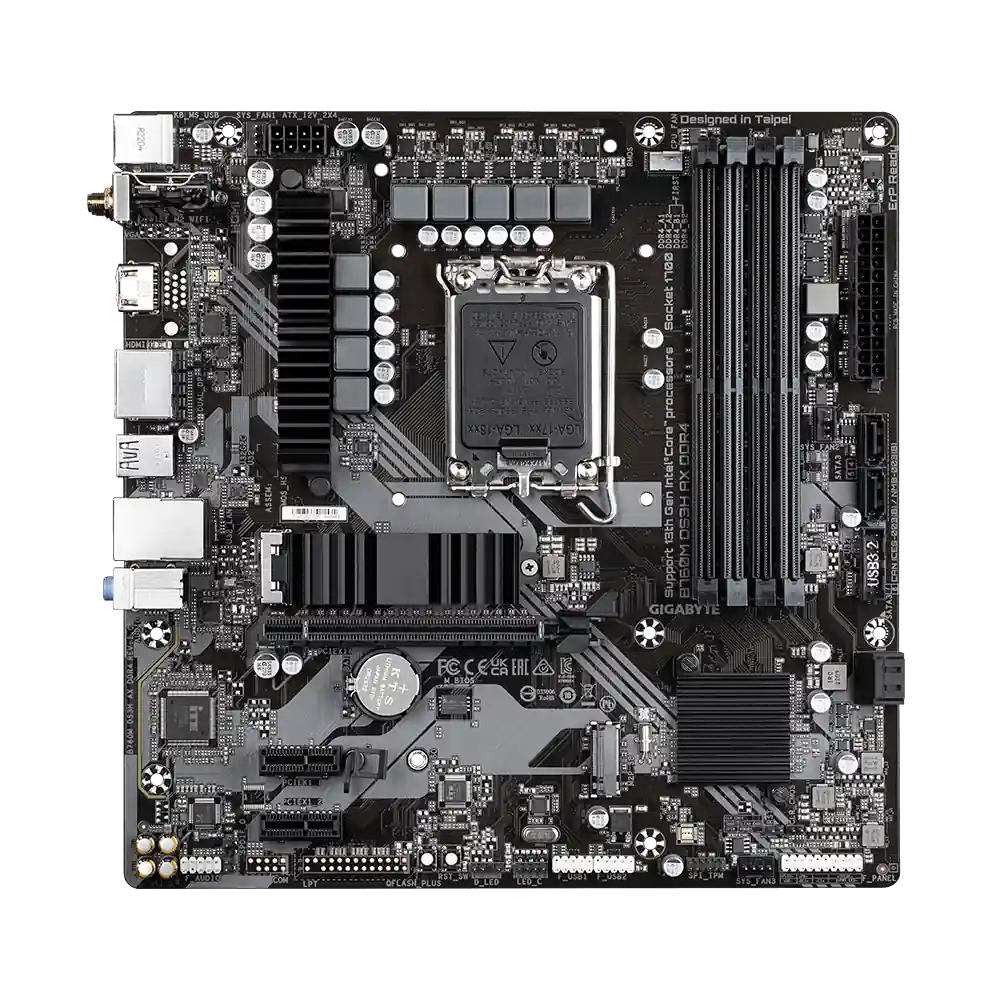

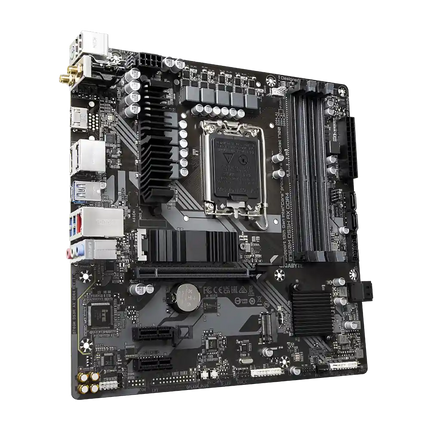

GIGABYTE M/B B760M DS3H AX DDR4
SKU: B760M-DS3H-AX-DDR4
245,000 IQD
GIGABYTE B760M DS3H AX DDR4 Motherboard – LGA1700, Wi-Fi 6E, PCIe 4.0, Dual M.2 | Buy in Iraq | Alfarah Store
Available now in Iraq at Alfarah Store. This GIGABYTE B760M DS3H AX DDR4 motherboard is built for gamers, PC builders, and productivity users, delivering support for Intel Core 14th/13th/12th Gen processors on the Intel B760 Express chipset in a compact Micro-ATX form factor. With a 6+2+1 Phases Hybrid Digital VRM Solution, Dual Channel DDR4 memory across 4 DIMMs with support up to DDR4-5333 (OC), and dual PCIe 4.0 x4 M.2 connectors backed by M.2 Thermal Guard, this board delivers strong next-gen storage performance and power stability. Built-in Wi-Fi 6E and Bluetooth 5.2, 2.5GbE LAN, and rear USB-C 10Gb/s provide excellent connectivity, while GIGABYTE Smart Fan 6 and Q-Flash Plus round out a well-equipped build for Baghdad, Erbil, Basra, and across Iraq.
Specifications:
| Feature | Details |
|---|---|
| Brand / Model | GIGABYTE B760M DS3H AX DDR4 (Rev. 1.x) |
| Socket | LGA 1700 |
| Chipset | Intel B760 Express |
| CPU Support | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron |
| Form Factor | Micro-ATX |
| Memory | 4x DDR4 DIMM slots, dual channel, up to 128GB (32GB/DIMM), up to DDR4-5333 (OC) |
| Expansion Slots | 1x PCIe 4.0 x16 (EZ-Latch), 2x PCIe 3.0 x1 |
| Storage | 2x PCIe 4.0 x4 M.2 connectors (2280), 4x SATA 6Gb/s |
| Wireless | AMD Wi-Fi 6E RZ608 (MT7921K), 802.11a/b/g/n/ac/ax, 2.4/5/6GHz, Bluetooth 5.2 |
| Networking | 2.5GbE LAN |
| Audio | Realtek Audio CODEC, 8-channel HD Audio, Audio Noise Guard, High-End Audio Capacitors |

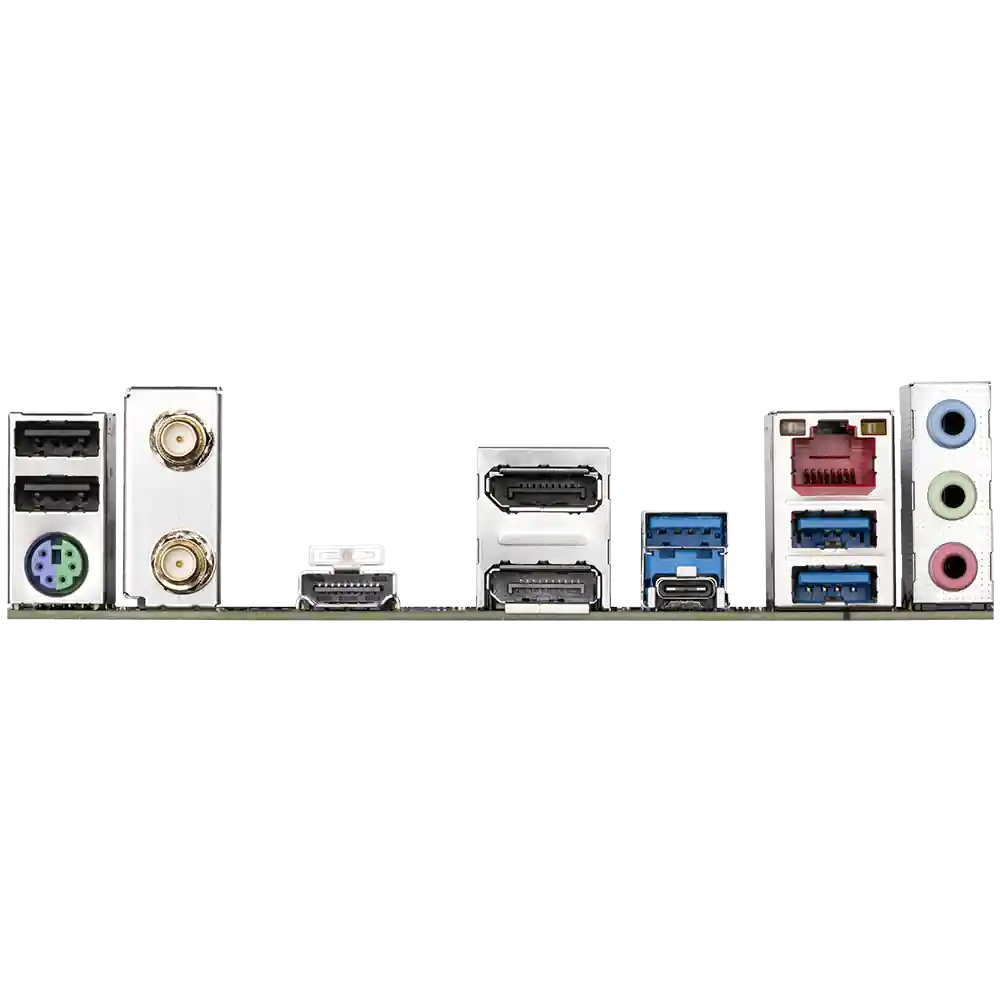

| USB | 3x USB 3.2 Gen 1, 1x USB-C (USB 3.2 Gen 2), 2x USB 2.0 |
| Video Outputs | 1x HDMI (4096x2160@60Hz), 2x DisplayPort |
| Fan Headers | Multiple, Smart Fan 6 with FAN STOP |
| VRM | 6+2+1 Hybrid Digital VRM Design |
| Power Connector | 8-pin solid pin CPU power |
| Special Features | Q-Flash Plus, PCIe EZ-Latch, M.2 Thermal Guard |
| OS Support | Windows 11/10 64-bit |
Warranty: 1 Year available at Alfarah Store – Iraq
