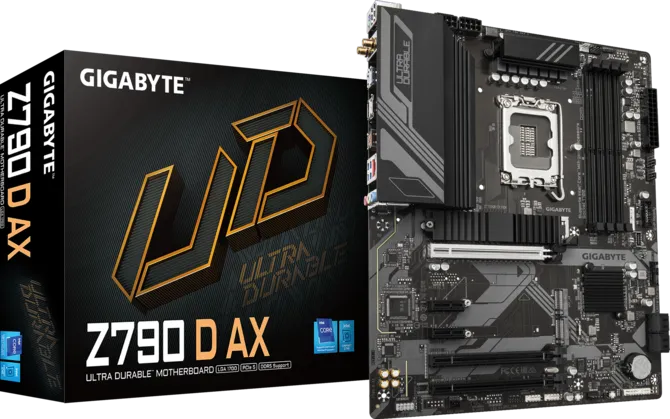

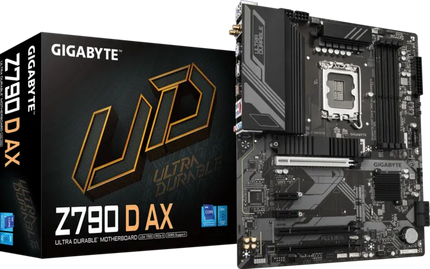

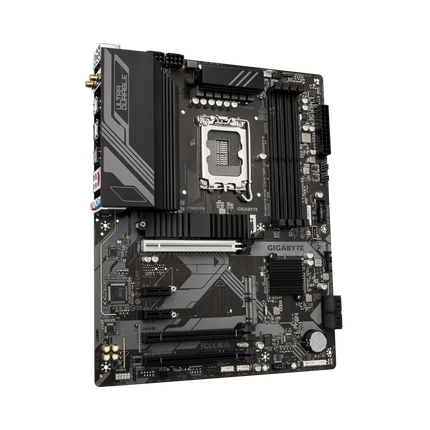

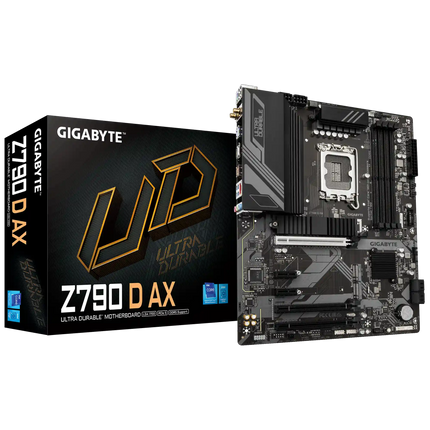

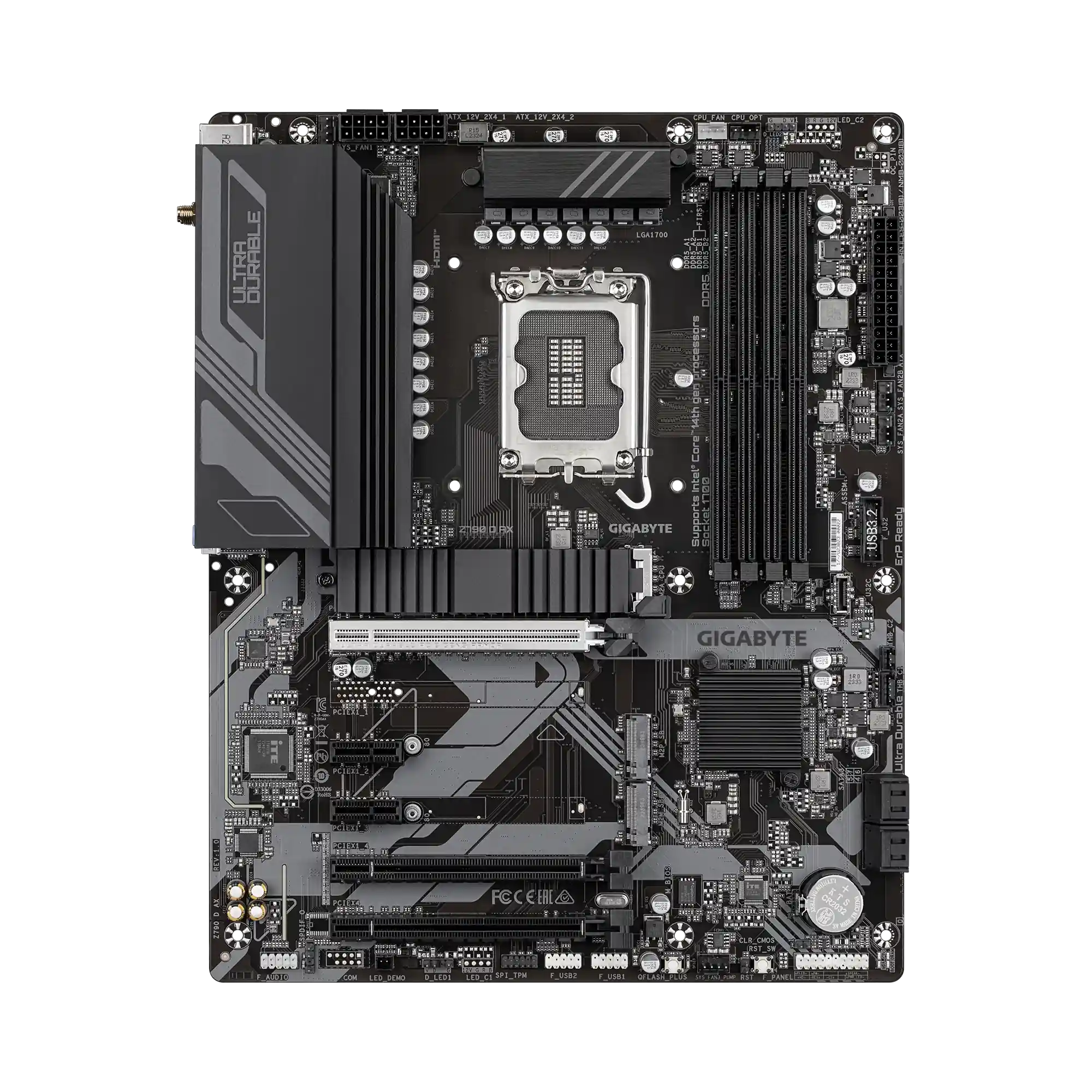

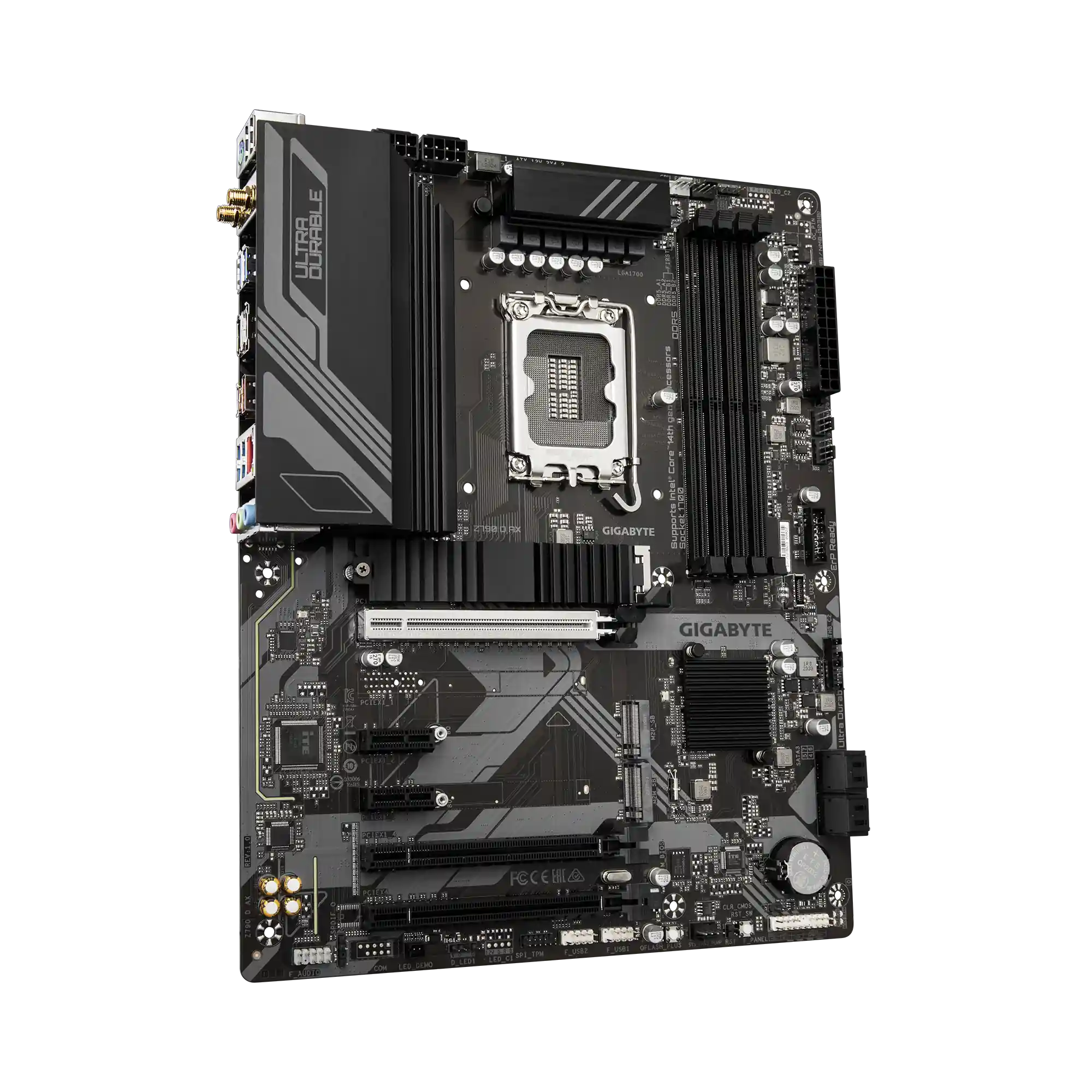

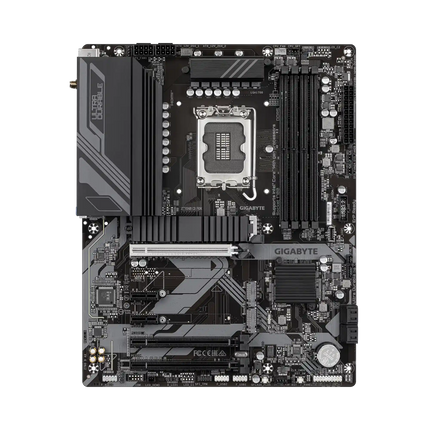

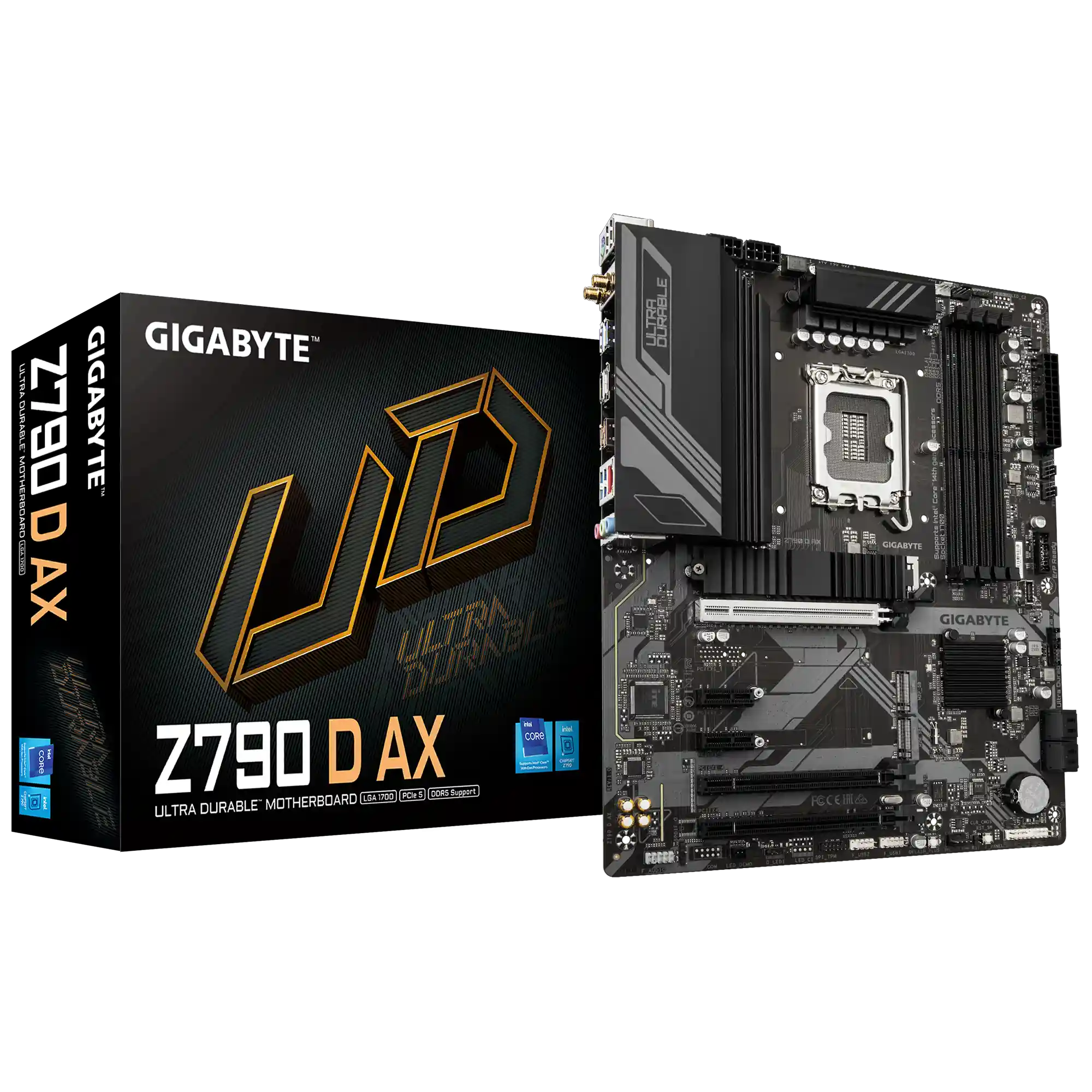

GIGABYTE M/B Z790 D AX
SKU: Z790-D-AX
355,000 IQD
GIGABYTE Z790 D AX Motherboard – LGA1700, DDR5, PCIe 5.0, Wi-Fi 6E | Buy in Iraq | Alfarah Store
Available now in Iraq at Alfarah Store. This GIGABYTE Z790 D AX motherboard is built for gamers, PC builders, and content creators, delivering support for Intel Core 14th/13th/12th Gen processors on the Intel Z790 Express chipset in a full ATX form factor. With a Twin 12+1+1 Phases Digital VRM Solution, Dual Channel DDR5 memory across 4 DIMMs with XMP 3.0 support, and triple PCIe 4.0 x4 M.2 connectors backed by M.2 Thermal Guard, this board delivers strong next-gen storage performance and stable power delivery. Built-in Wi-Fi 6E and Bluetooth 5.3, 2.5GbE LAN, and a PCIe 5.0 x16 slot with EZ-Latch provide excellent connectivity and future-proofing, while GIGABYTE Smart Fan 6 and Q-Flash Plus round out a well-equipped build for Baghdad, Erbil, Basra, and across Iraq.
Specifications:
| Feature | Details |
|---|---|
| Brand / Model | GIGABYTE Z790 D AX (Rev. 1.x) |
| Mfg Code | Z790 D AX |
| Socket | LGA 1700 |
| Chipset | Intel Z790 Express |
| CPU Support | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron |
| Form Factor | ATX |
| Memory | 4x DDR5 DIMM slots, dual channel, up to 192GB, XMP 3.0 |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (@x4), 1x PCIe 3.0 x16 (@x1), 2x PCIe 3.0 x1 |
| Storage | 3x PCIe 4.0 x4 M.2 connectors (22110/2280), 4x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| Wireless | Wi-Fi 6E 802.11ax, Bluetooth 5.3 |
| Networking | Realtek 2.5GbE LAN |
| Audio | Realtek Audio CODEC, 8-channel HD Audio, S/PDIF Out |

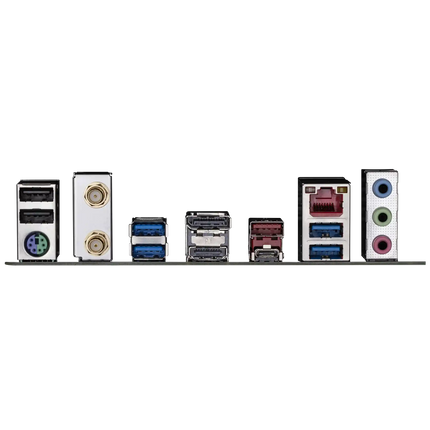

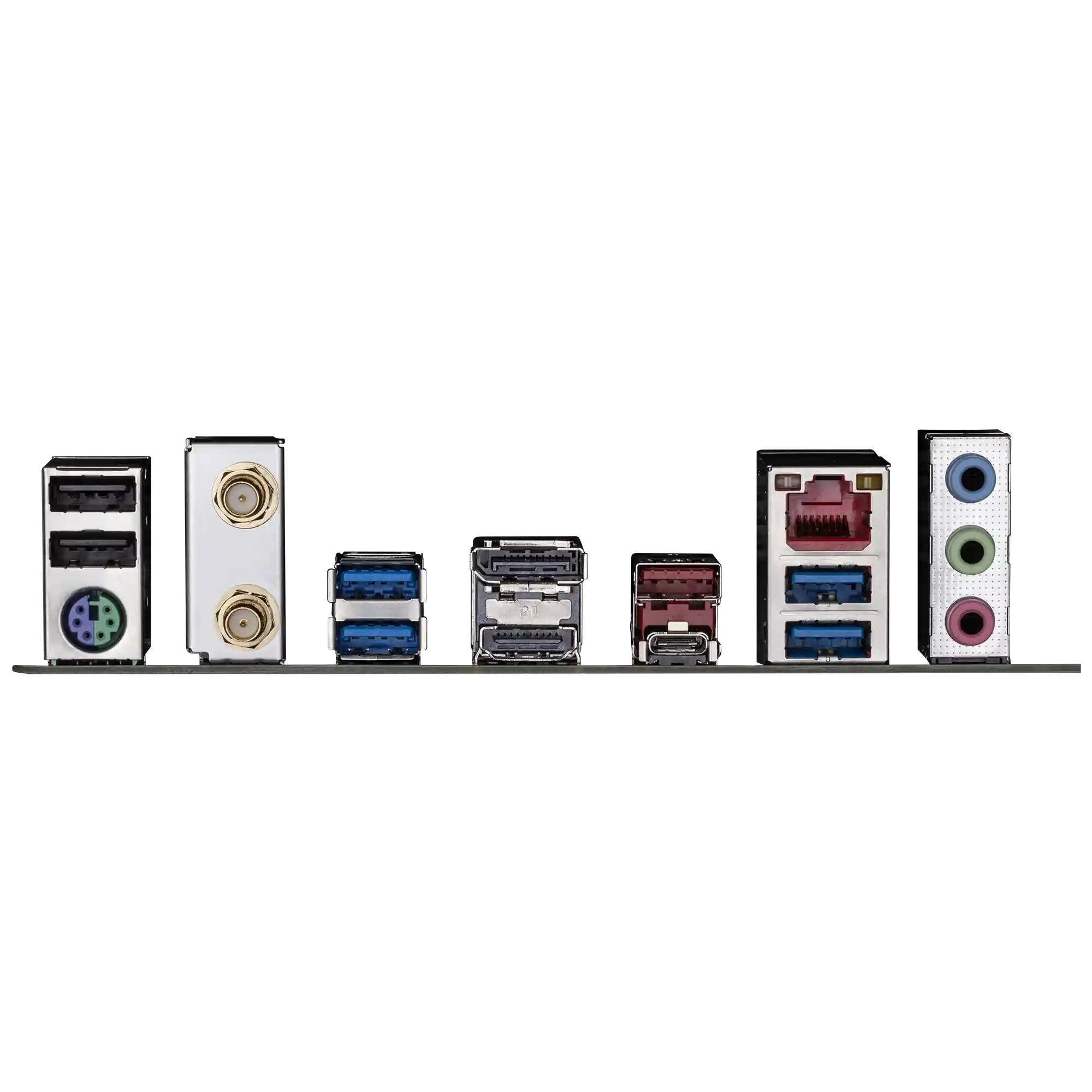

| USB | Rear USB-C 10Gb/s, multiple USB 3.2 Gen 1/2 ports |
| Video Outputs | 1x HDMI (4096x2160@60Hz), 1x DisplayPort (4096x2304@60Hz) |
| Fan Headers | CPU fan, CPU fan/pump header, 3x system fans, 1x system/pump header |
| RGB Headers | 2x Addressable LED strip headers |
| VRM | Twin 12+1+1 Phases Digital VRM, 6+6 phases parallel power design |
| Power Connectors | 24-pin ATX, 2x 8-pin ATX 12V |
| Special Features | Q-Flash Plus, PCIe EZ-Latch, 2x Thunderbolt add-in card connectors, TPM header |
| OS Support | Windows 11/10 64-bit |
Warranty: 1 Year available at Alfarah Store – Iraq
