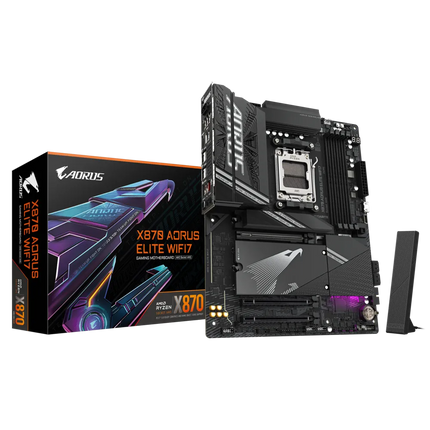

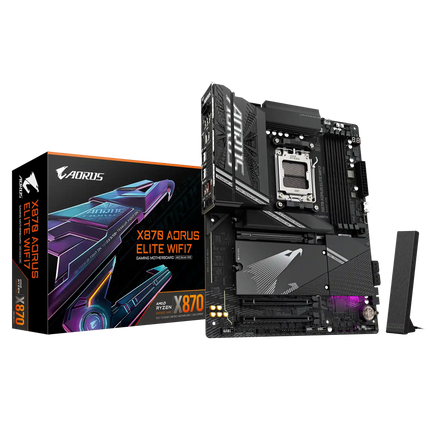

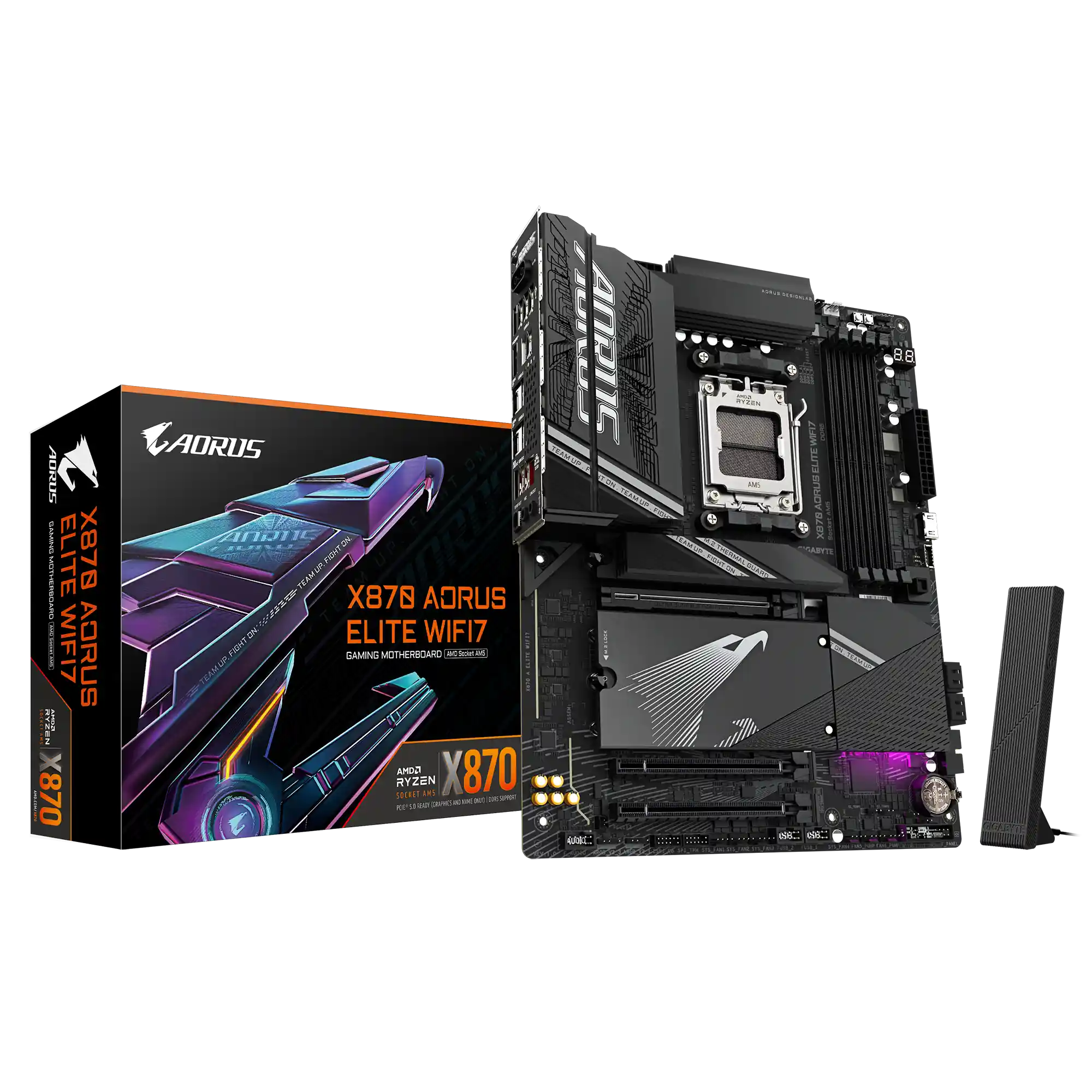

GIGABYTE X870 AORUS ELITE WIFI7 AM5

Description

CPU & Chipset

  • Socket: AMD AM5

  • CPU Compatibility:

    • AMD Ryzen™ 9000 / 8000 / 7000 Series

  • Chipset: AMD X870

Check GIGABYTE’s website for the latest CPU support list.

Memory Support

  • Type: DDR5

  • Max Capacity: 256GB (4 x DDR5 DIMMs, up to 64GB per DIMM)

  • Supported Speeds:
    Up to DDR5-8200(OC), with wide support including 8000 / 7800 / 7600 / 7200 / 7000 / 6800 / 6666 / 6600 / 6400 / 6200 / 6000 / 5600 / 5200 / 4800 / 4400 MT/s

  • Architecture: Dual Channel

  • Features:

    • Supports AMD EXPO™ & Intel® XMP Profiles

    • Non-ECC Unbuffered DIMMs supported

Graphics & Display Outputs

  • Integrated Graphics: AMD Radeon™ Graphics (based on CPU)

  • Display Ports:

    • 2 x USB4® Type-C® (DisplayPort 1.4, up to 3840x2160@240Hz with HDR)

    • 1 x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3, HDR)

    • 1 x Front HDMI 1.4 (1920x1080@30Hz)

  • Display Support: Up to 4 Displays Simultaneously

Audio

  • Codec: Realtek® ALC1220

  • Channels: 2/4/5.1/7.1 High Definition Audio

  • Special Features:

    • S/PDIF Optical Out

    • Back panel line-out jack supports DSD audio

    • Configurable via audio software

Networking

  • LAN: Realtek® 2.5GbE

  • Wi-Fi (Varies by PCB Revision):

    • MediaTek Wi-Fi 7 MT7925 (Rev 1.0)

    • Realtek Wi-Fi 7 RTL8922AE (Rev 1.1)

    • Dual-band 2.4/5/6GHz, Bluetooth® 5.4, 160MHz channels

Wi-Fi 7 requires Windows 11 SV3. Not supported on Windows 10.

Expansion Slots

  • From CPU:

    • 1 x PCIe 5.0 x16 (x16 with Ryzen 9000/7000, x8/x4 with Ryzen 8000)*

    • *Shared bandwidth with M2B_CPU and M2C_CPU

  • From Chipset:

    • 1 x PCIe 4.0 x4

    • 1 x PCIe 3.0 x2

Storage

  • M.2 Slots:

    • 1 x PCIe 5.0 x4/x2 (M2A_CPU)

    • 2 x PCIe 5.0 x4/x2 (M2B_CPU & M2C_CPU)*
      *Disabled with Ryzen 8000 Phoenix CPUs

    • 1 x PCIe 4.0 x4/x2 (M2D_SB)

  • SATA Ports: 4 x SATA 6Gb/s

  • RAID Support:

    • NVMe RAID 0/1/5/10 (RAID 5 requires Ryzen 9000)

    • SATA RAID 0/1/10

USB Connectivity

  • Rear Panel:

    • 2 x USB4® Type-C®

    • 2 x USB 3.2 Gen 2 Type-A (Red)

    • 4 x USB 3.2 Gen 1

    • 4 x USB 2.0

  • Internal Headers:

    • 1 x USB 3.2 Gen 2x2 Type-C®

    • 2 x USB 3.2 Gen 1

    • 4 x USB 2.0

Lighting & Cooling

  • Fan Headers:

    • 1 x CPU fan

    • 1 x CPU pump/water cooling

    • 4 x System fans

    • 2 x System fan/pump

  • RGB:

    • 3 x ARGB Gen2 headers

    • 1 x RGB LED header

  • Monitoring:

    • Voltage, Temp, Fan & Pump Speed, Water Flow, Noise Detection

Internal & Front Panel I/O

  • 1 x 24-pin ATX main power

  • 2 x 8-pin ATX 12V

  • 4 x M.2 Slots

  • 4 x SATA 6Gb/s

  • TPM header, Q-Flash, Clear CMOS, Temperature Sensors

  • Power & Reset buttons, Front HDMI

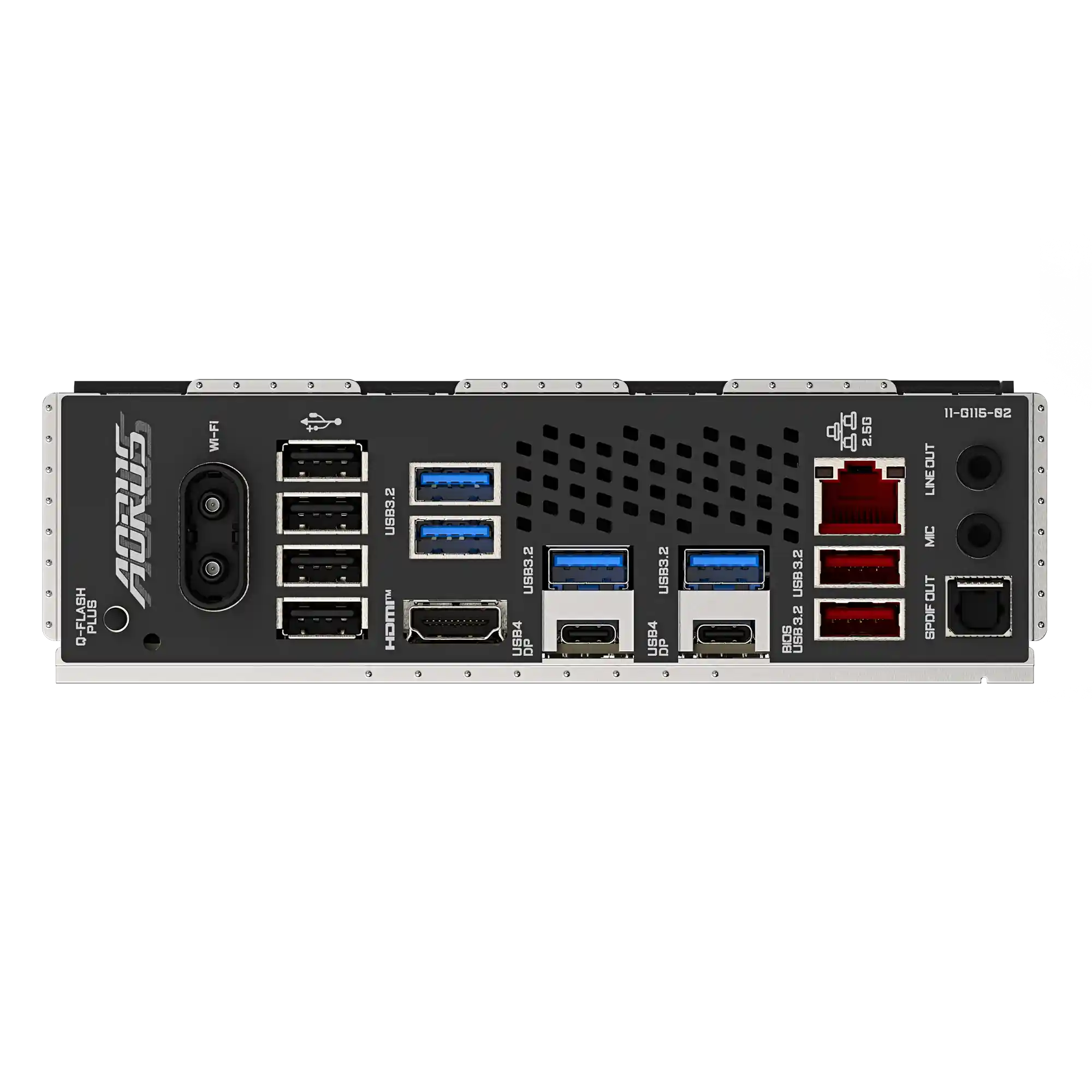

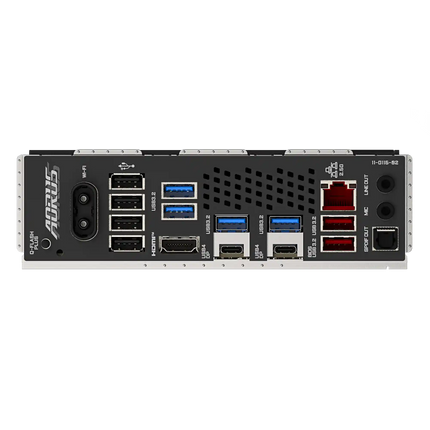

Rear I/O Panel

  • 1 x HDMI 2.1

  • 2 x Antenna Connectors

  • 2 x USB4® Type-C® (DisplayPort supported)

  • 2 x USB 3.2 Gen 2 Type-A (Red)

  • 4 x USB 3.2 Gen 1

  • 4 x USB 2.0

  • 1 x RJ-45 LAN

  • 1 x Optical S/PDIF Out

  • 2 x Audio Jacks

  • 1 x Q-Flash Plus Button

BIOS & Utilities

  • AMI UEFI BIOS (256 Mbit)

  • Q-Flash & Q-Flash Plus

  • GIGABYTE Control Center (GCC)

  • Smart Backup

Bundled Software

  • Norton® Internet Security (OEM)

  • LAN Bandwidth Management Utility

Operating System & Form Factor

  • OS Support: Windows 11 64-bit

  • Form Factor: ATX (30.5cm x 24.4cm)

available In Iraq

Product form

CPU & Chipset Socket: AMD AM5 CPU Compatibility: AMD Ryzen™ 9000 / 8000 / 7000 Series Chipset: AMD X870 Check... Read more

Free pickup in our shop(s)

SKU: X870-A-ELITE-WIFI7

490,000 IQD 460,000 IQD Incl. VAT

    • 1 Year Warranty
