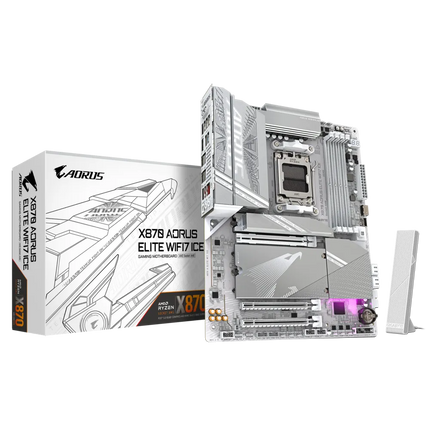

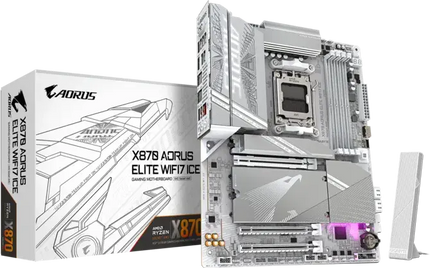

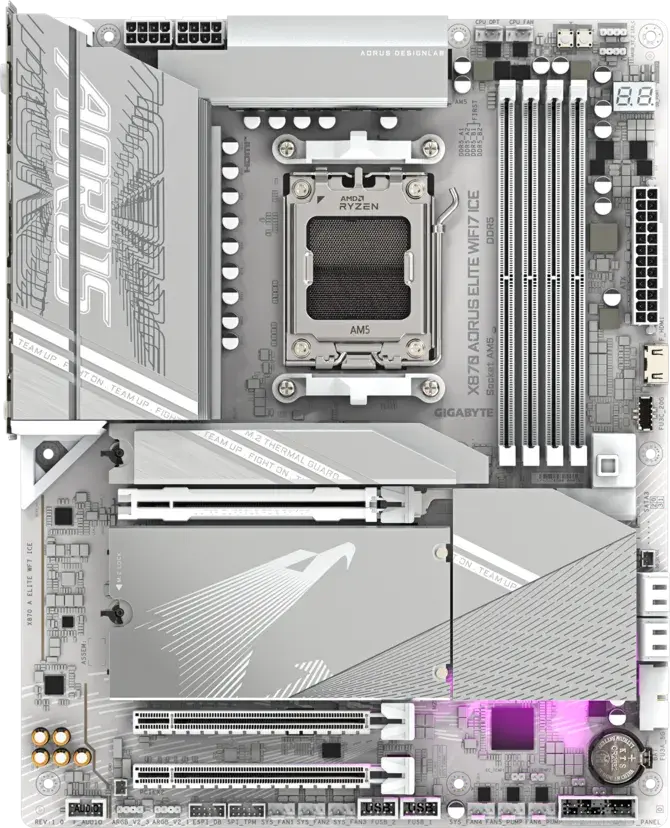

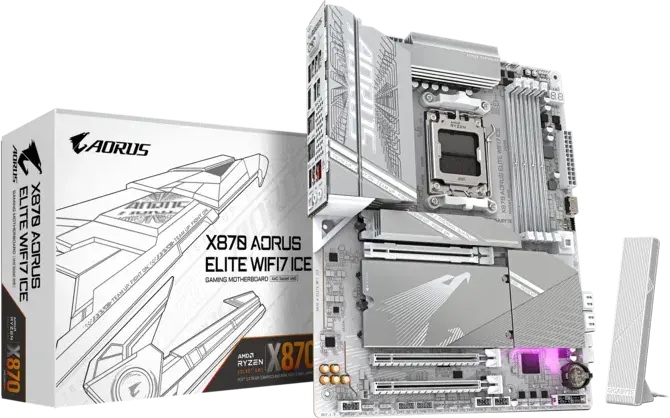

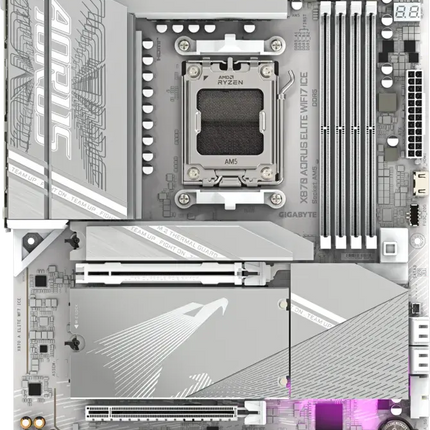

GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5

Description

CPU & Chipset

  • Socket: AMD AM5

  • Chipset: AMD X870

  • CPU Support:

    • AMD Ryzen™ 9000 / 8000 / 7000 Series
      (See GIGABYTE’s official CPU support list for details)

Memory

  • Memory Type: DDR5

  • Max Capacity: 256GB (4 x DDR5 DIMMs, up to 64GB each)

  • Supported Speeds:
    DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s

  • Features:

    • Dual-channel memory architecture

    • Supports AMD EXPO™ & Intel® XMP profiles

    • Non-ECC unbuffered DIMMs supported

Graphics & Display Outputs

  • Integrated Graphics: AMD Radeon™ Graphics (based on CPU)

  • Display Outputs:

    • 2 x USB4® Type-C® (DisplayPort 1.4, up to 3840x2160@240Hz)

    • 1 x HDMI 2.1 (up to 4096x2160@60Hz, HDCP 2.3, HDR)

    • 1 x Front HDMI 1.4 (up to 1920x1080@30Hz)

  • Multi-Display Support: Up to 4 displays

Audio

  • Audio Codec: Realtek® ALC1220

  • Audio Channels: 2/4/5.1/7.1 HD Audio

  • Features:

    • DSD audio support

    • S/PDIF Out (optical)

    • Configurable jack functionality via software

Networking & Wireless

  • LAN: Realtek® 2.5GbE LAN

  • Wi-Fi:

    • PCB Rev. 1.0: MediaTek Wi-Fi 7 (MT7925), Bluetooth 5.4

    • PCB Rev. 1.1: Realtek Wi-Fi 7 (RTL8922AE), Bluetooth 5.4

    • Dual-band 2.4/5/6 GHz, Wi-Fi 7 (11be 160MHz support)

    • Windows 11 SV3 required for full Wi-Fi 7 support

Expansion Slots

  • PCIe x16 (from CPU):

    • Ryzen 9000/7000: PCIe 5.0 x16

    • Ryzen 8000: PCIe 4.0 x8 / x4 depending on series

  • PCIe x16 (from chipset):

    • 1 x PCIe 4.0 x4

    • 1 x PCIe 3.0 x2

Note: Some slots share bandwidth with M.2 sockets; PCIe x16 may operate at x8 when M2B/M2C is populated.

Storage

  • M.2 Slots:

    • 3 x M.2 (CPU-controlled):

      • M2A: PCIe 5.0 x4/x2

      • M2B/M2C: PCIe 5.0 x4/x2 (not available with Ryzen 8000)

    • 1 x M.2 (Chipset-controlled): PCIe 4.0 x4/x2

  • SATA Ports: 4 x SATA 6Gb/s

  • RAID Support:

    • NVMe: RAID 0, 1, 5, 10 (RAID 5 requires Ryzen 9000)

    • SATA: RAID 0, 1, 10

USB Ports

  • Rear Panel:

    • 2 x USB4® Type-C®

    • 2 x USB 3.2 Gen 2 (Type-A, red)

    • 4 x USB 3.2 Gen 1

    • 4 x USB 2.0

  • Internal Headers:

    • 1 x USB 3.2 Gen 2x2 Type-C®

    • 2 x USB 3.2 Gen 1

    • 4 x USB 2.0

Cooling & Fan Headers

  • 1 x CPU fan

  • 1 x CPU fan/pump

  • 4 x system fans

  • 2 x system fan/pump

  • Monitoring:

    • Voltage, temperature, fan speed

    • Noise detection, water cooling flow

    • Fan fail warning & control

RGB & Internal Headers

  • 3 x ARGB Gen2 headers

  • 1 x RGB LED header

  • Front panel, audio, TPM, temp sensors, power/reset buttons

  • USB Type-C® header with Gen 2x2

  • Clear CMOS & Q-Flash Plus buttons

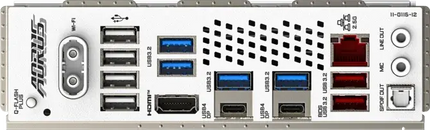

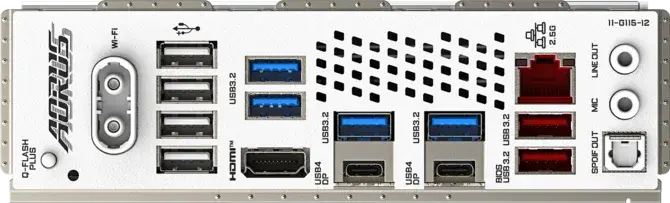

Rear I/O Panel

  • 1 x Q-Flash Plus button

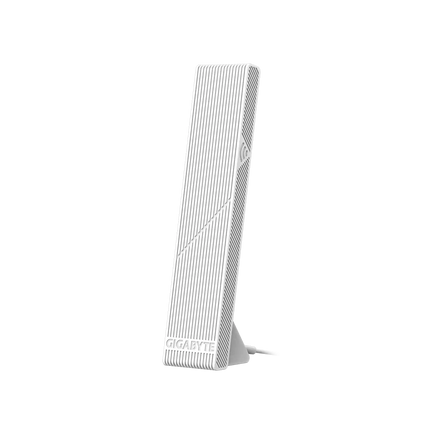

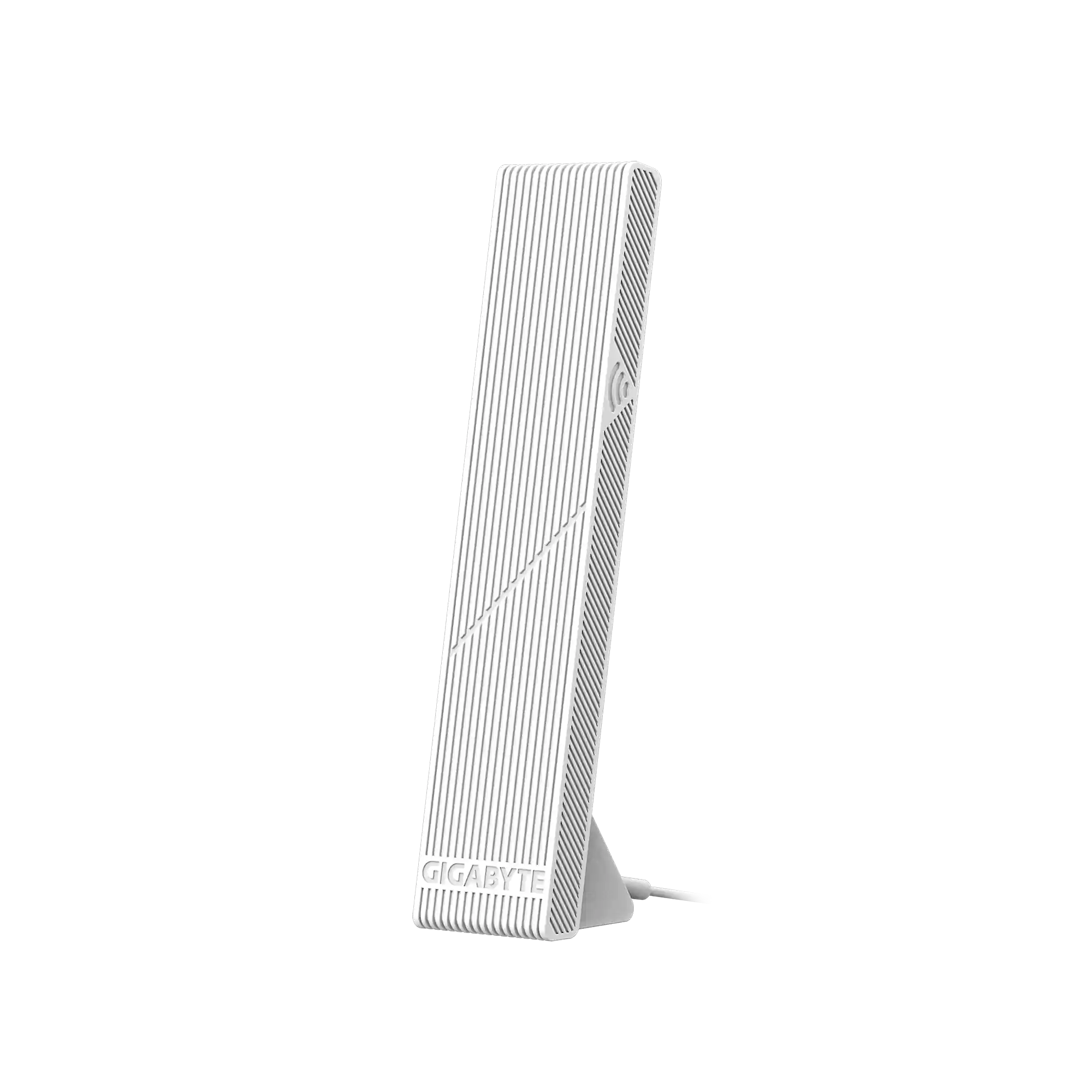

  • 2 x Antenna connectors

  • 2 x USB4® Type-C® (DisplayPort support)

  • 2 x USB 3.2 Gen 2 Type-A (red)

  • 4 x USB 3.2 Gen 1

  • 4 x USB 2.0

  • 1 x HDMI port

  • 1 x RJ-45 LAN

  • 1 x Optical S/PDIF

  • 2 x Audio jacks

BIOS & Software

  • BIOS: 256 Mbit AMI UEFI BIOS

  • Utilities:

    • GIGABYTE Control Center (GCC)

    • Q-Flash & Q-Flash Plus

    • Smart Backup

  • Bundled Software:

    • Norton® Internet Security (OEM)

    • LAN bandwidth management

Operating System & Form Factor

  • OS Support: Windows 11 64-bit only

  • Form Factor: ATX (30.5cm x 24.4cm)

available In Iraq

Product form

CPU & Chipset Socket: AMD AM5 Chipset: AMD X870 CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series(See GIGABYTE’s... Read more

Free pickup in our shop(s)

SKU: X870-A-ELITE-WF7-ICE

520,000 IQD 480,000 IQD Incl. VAT

    • 1 Year Warranty
