Description

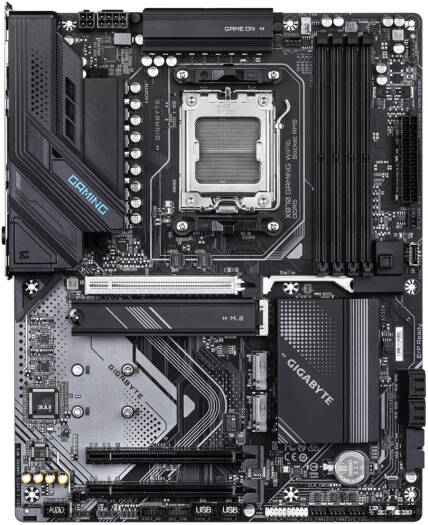

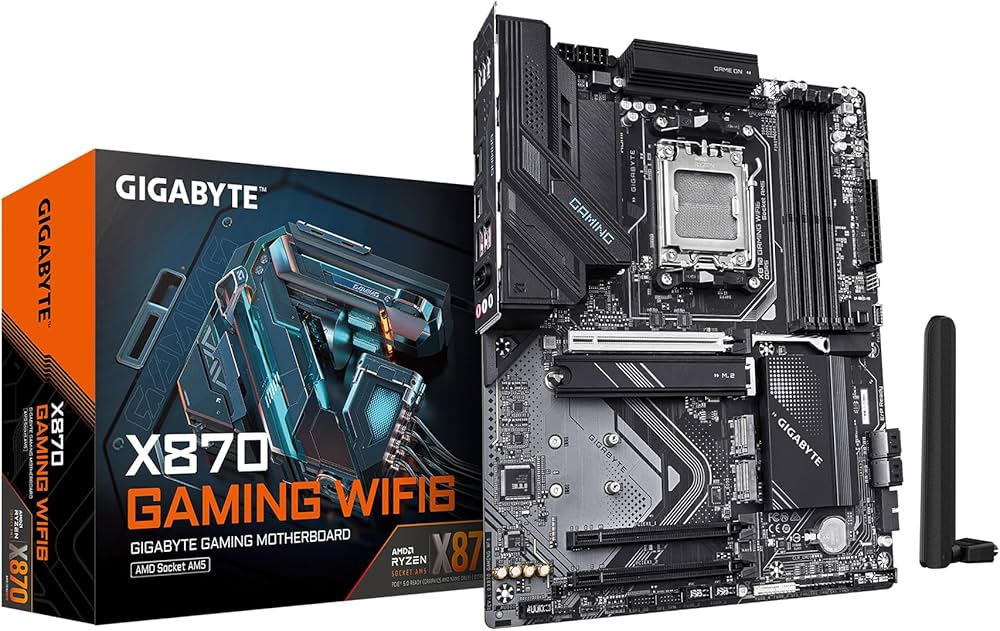

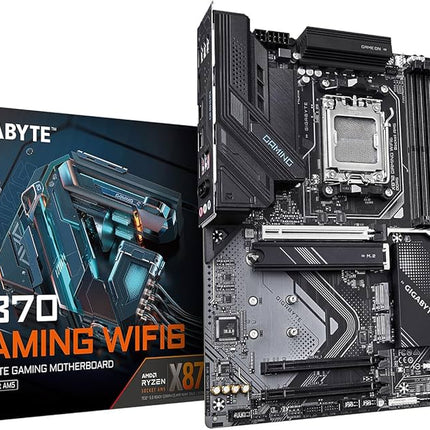

GIGABYTE X870 ATX Motherboard – AM5, DDR5, PCIe 5.0, USB4, Wi-Fi 6, RGB
Future-ready performance with PCIe 5.0 and USB4 – built for the next generation of Ryzen™.
Powered by the AMD X870 chipset, this high-performance motherboard supports the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors. With robust power delivery, full DDR5 support, next-gen storage, and extensive connectivity including dual USB4® ports and Wi-Fi 6, it’s engineered for enthusiasts and power users seeking maximum value and future-proofing.
Key Specifications
| Feature |
Details |
| CPU Support |
AMD Socket AM5
Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset |
AMD X870 |
| Memory Support |
4 x DDR5 DIMM (up to 256 GB)
DDR5 8200(O.C) to 4400 MT/s
Dual-channel architecture
Supports AMD EXPO™ & Intel® XMP |
| Graphics Outputs |
2 x USB4® Type-C with DP 1.4 (3840x2160@240Hz)
1 x HDMI 2.1 (4096x2160@60Hz) |
| Audio |
Realtek® High Definition Audio
Supports 2/4/5.1/7.1-channel |
| LAN |
Realtek® 2.5Gb Ethernet |
| Wireless |
Realtek® Wi-Fi 6 + Bluetooth 5.3 |
| Expansion Slots |
1 x PCIe 5.0 x16 (CPU)
2 x PCIe 3.0 x1 (Chipset) |
| Storage |
1 x M.2 PCIe 5.0 x4 (CPU)
2 x M.2 PCIe 4.0 x4/x2 (Chipset)
4 x SATA 6Gb/s
RAID 0/1/5/10 (RAID 5 on Ryzen™ 9000 only) |
| USB Ports |

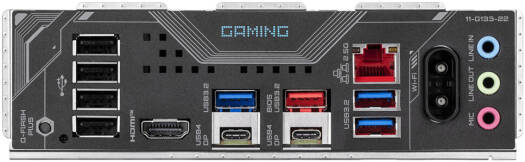

Rear: 2 x USB4® Type-C, 1 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 4 x USB 2.0
Internal: USB 3.2 Gen 2x2 Type-C header, USB 3.2 Gen 1, 4 x USB 2.0 headers |
| Cooling & RGB |
1 x CPU Fan, 1 x CPU/WP Fan, 4 x SYS Fans
3 x Addressable RGB Gen2 Headers
1 x RGB Strip Header |
| Form Factor |
ATX (30.5 cm x 24.4 cm) |
Advanced Features
-
Dual USB4® Type-C ports with DisplayPort 1.4 and 240Hz 4K output
-
PCIe 5.0 x16 slot for next-gen GPUs and NVMe SSDs
-
Wi-Fi 6 & 2.5GbE LAN for high-speed connectivity
-
Q-Flash Plus & Smart Backup BIOS features
-
RGB Fusion with addressable Gen2 support
-
GIGABYTE Control Center (GCC) software suite
Box Contents
Operating System Support
Windows 11 64-bit / Windows 10 64-bit
Available at Alfarah Store in Iraq
