GIGABYTE Z790 D D5

Description

CPU Support

  • LGA1700 Socket

  • Compatible with:

    • 14th / 13th / 12th Gen Intel® Core™

    • Intel® Pentium® Gold / Celeron® processors

  • L3 Cache varies by CPU

  • For the latest CPU support list, visit GIGABYTE's official website

Chipset

  • Intel® Z790 Express Chipset

Memory

  • 4 x DDR5 DIMM slots, up to 256GB (64GB per DIMM)

  • Dual Channel Memory Architecture

  • Supported Speeds:

    • Up to DDR5 7600(O.C) for i9/i7 14th & 13th Gen

    • DDR5 4800/4400 for i5/i3 13th Gen & all 12th Gen CPUs

  • Supports:

    • ECC Un-buffered DIMM (non-ECC mode)

    • Non-ECC Un-buffered DIMM

    • Intel® XMP Memory Profiles

Graphics (Integrated)

  • Intel® HD Graphics (CPU-dependent)

  • Display Outputs:

    • 1 x HDMI 2.1 (4096x2160 @ 60Hz, HDCP 2.3, HDR)

    • 1 x DisplayPort 1.2 (4096x2304 @ 60Hz, HDCP 2.3)

  • Multi-monitor support depends on CPU

Audio

  • Realtek® Audio CODEC

  • High Definition Audio, 2/4/5.1/7.1-channel

  • Supports S/PDIF Out

  • Audio jack functionality configurable via software

LAN

  • Realtek® 2.5GbE LAN (2.5G / 1G / 100 Mbps)

Expansion Slots

From CPU:

  • 1 x PCIe 5.0 x16 (PCIEX16)

    • Only supports GPU or NVMe SSD

From Chipset:

  • 1 x PCIe 4.0 x16 (running at x4)

  • 1 x PCIe 3.0 x16 (running at x1)

  • 2 x PCIe 3.0 x1 slots

Storage

From CPU:

  • 1 x M.2 (M2A_CPU): PCIe 4.0 x4/x2 (22110/2280)

From Chipset:

  • 1 x M.2 (M2P_SB): PCIe 4.0 x4/x2 (2280)

  • 1 x M.2 (M2M_SB): PCIe 4.0 x4/x2 & SATA (2280)

  • 4 x SATA 6Gb/s ports

RAID Support:

  • NVMe & SATA: RAID 0, 1, 5, 10

USB Ports

Back Panel:

  • 1 x USB Type-C® (USB 3.2 Gen 2)

  • 1 x USB 3.2 Gen 2 Type-A (Red)

  • 4 x USB 3.2 Gen 1

  • 2 x USB 2.0/1.1

Internal:

  • 1 x USB Type-C® (USB 3.2 Gen 1)

  • 1 x USB 3.2 Gen 1 header (2 ports)

  • 2 x USB 2.0 headers (4 ports)

Internal I/O Headers

  • 1 x 24-pin ATX main power

  • 2 x 8-pin ATX 12V power

  • 1 x CPU fan header

  • 1 x CPU water pump header

  • 3 x System fan headers

  • 1 x System pump header

  • 2 x ARGB LED strip headers

  • 3 x M.2 sockets

  • 4 x SATA ports

  • 1 x Front panel header

  • 1 x Front panel audio header

  • 1 x S/PDIF Out header

  • 1 x USB Type-C header (USB 3.2 Gen 1)

  • 1 x USB 3.2 Gen 1 header

  • 2 x USB 2.0 headers

  • 2 x Thunderbolt™ add-in card headers

  • 1 x TPM header

  • 1 x Reset button

  • 1 x Q-Flash Plus button

  • 1 x Reset jumper

  • 1 x Clear CMOS jumper

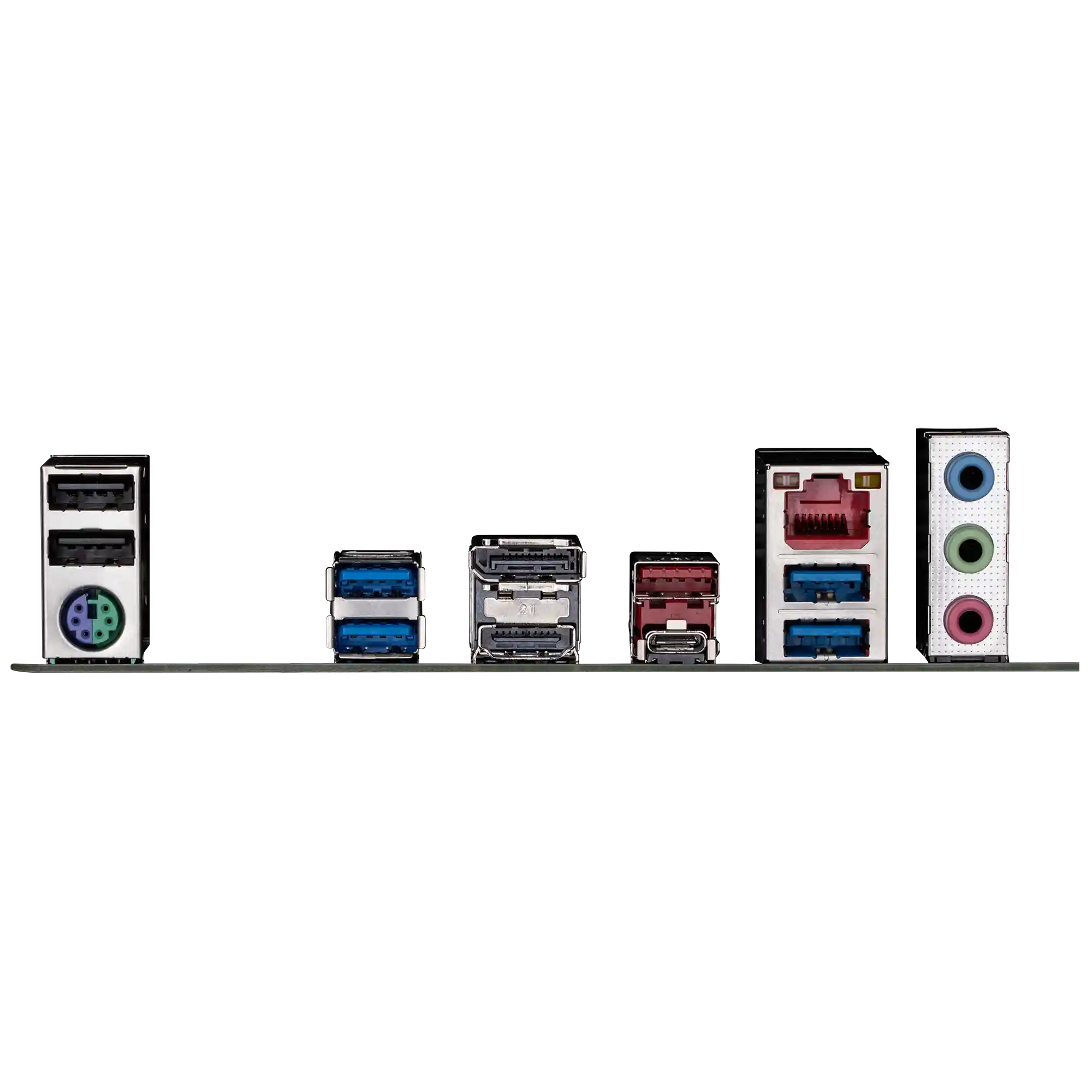

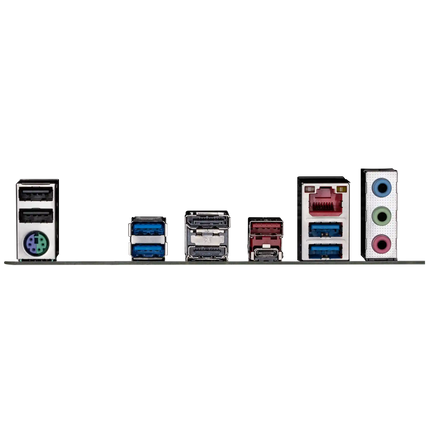

Back Panel I/O

  • 1 x PS/2 keyboard/mouse port

  • 1 x HDMI port

  • 1 x DisplayPort

  • 1 x USB Type-C® (USB 3.2 Gen 2)

  • 1 x USB 3.2 Gen 2 Type-A (Red)

  • 4 x USB 3.2 Gen 1 ports

  • 2 x USB 2.0/1.1 ports

  • 1 x RJ-45 LAN port

  • 3 x Audio jacks

I/O Controller

  • iTE® Controller Chip

Monitoring Features

  • Voltage / Temperature / Fan speed monitoring

  • Water cooling flow detection

  • Fan fail warning

  • Smart fan/pump speed control

BIOS

  • AMI UEFI BIOS, 256 Mbit

  • Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  • GIGABYTE Control Center (GCC)

  • Q-Flash / Q-Flash Plus

  • Smart Backup

Software

  • Norton® Internet Security (OEM)

  • LAN Bandwidth Management Software

Operating System Support

  • Windows 11 64-bit

  • Windows 10 64-bit

Form Factor

  • ATX (30.5 cm x 24.4 cm)

available In iraq

Product form

CPU Support LGA1700 Socket Compatible with: 14th / 13th / 12th Gen Intel® Core™ Intel® Pentium® Gold / Celeron® processors... Read more

Free pickup in our shop(s)

SKU: Z790-D

320,000 IQD 265,000 IQD
