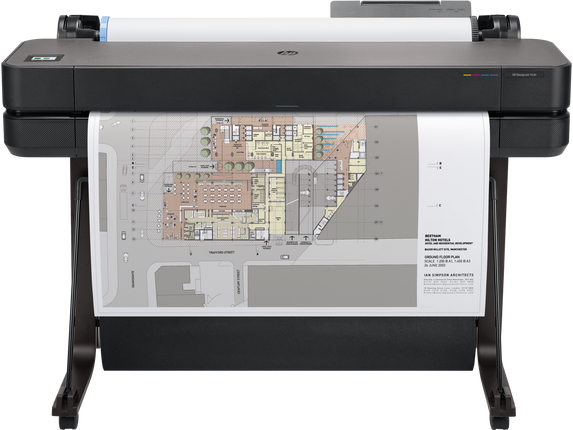

HP DesignJet T630 Large Format Wireless Plotter Printer - 36 Inch (5HB11A)

Description

Functions

Print

Print speed, maximum

30 sec/page on D, 76 D prints per hour[1]

Resolution (color)

Up to 2400 x 1200 optimized dpi

Print Technology

HP Thermal Inkjet

Number of print cartridges

4 (C, M, Y, K)

Product disclaimer

This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:http://www.hp.com/learn/ds

Compatible ink types

Dye-based (C, M, Y); pigment-based (K)

Print languages

HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Memory, standard

1 GB

Hard disk

None

Non-printable area (cut-sheet)

0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray)

Line accuracy

±0.1%[3]

Maximum optical density (black)

8 L* min/2.10 D[4]

Finished output handling

Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

Media sizes supported

Auto sheet feeder: A, B; manual feed: A, B, C, D, E

Media sizes supported

Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0

Media sizes, custom

Auto sheet feeder: 8.3 x 11 to 13 x 19 in; manual feed: 8.3 x 11 to 36 x 74.7 in

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media sizes, standard

11 to 36 in

Roll external diameter

3.9 in

Media thickness

Up to 11.8 mil

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max. Not dual voltage, power supply varies by part number with # Option code identifier.

Power consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

Operating temperature range

41 to 104ºF

Warranty

One-year limited hardware warranty

Software included

HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

Dimensions (W X D X H)

51.9 x 23.8 x 36.7 in

Weight

76.5 lb

Package weight

121.9 lb

What's in the box

HP DesignJet T630 36-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

Sustainability Impact

More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered

Recommended Media

Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m (24 in x 100 ft)

Dynamic security

Dynamic security enabled printerCertain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Product form

Functions Print Print speed, maximum 30 sec/page on D, 76 D prints per hour[1] Resolution (color) Up to 2400 x... Read more

SKU: 5hb11a

3,000,000 IQD

      Description

      Functions

      Print

      Print speed, maximum

      30 sec/page on D, 76 D prints per hour[1]

      Resolution (color)

      Up to 2400 x 1200 optimized dpi

      Print Technology

      HP Thermal Inkjet

      Number of print cartridges

      4 (C, M, Y, K)

      Product disclaimer

      This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:http://www.hp.com/learn/ds

      Compatible ink types

      Dye-based (C, M, Y); pigment-based (K)

      Print languages

      HP-GL/2, HP-RTL, CALS G4, JPEG, URF

      Connectivity, standard

      Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

      Memory, standard

      1 GB

      Hard disk

      None

      Non-printable area (cut-sheet)

      0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray)

      Line accuracy

      ±0.1%[3]

      Maximum optical density (black)

      8 L* min/2.10 D[4]

      Finished output handling

      Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

      Media sizes supported

      Auto sheet feeder: A, B; manual feed: A, B, C, D, E

      Media sizes supported

      Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0

      Media sizes, custom

      Auto sheet feeder: 8.3 x 11 to 13 x 19 in; manual feed: 8.3 x 11 to 36 x 74.7 in

      Media types

      Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

      Media sizes, standard

      11 to 36 in

      Roll external diameter

      3.9 in

      Media thickness

      Up to 11.8 mil

      Power

      Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max. Not dual voltage, power supply varies by part number with # Option code identifier.

      Power consumption

      <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

      Operating temperature range

      41 to 104ºF

      Warranty

      One-year limited hardware warranty

      Software included

      HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

      Dimensions (W X D X H)

      51.9 x 23.8 x 36.7 in

      Weight

      76.5 lb

      Package weight

      121.9 lb

      What's in the box

      HP DesignJet T630 36-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

      Sustainability Impact

      More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered

      Recommended Media

      Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m (24 in x 100 ft)

      Dynamic security

      Dynamic security enabled printerCertain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
