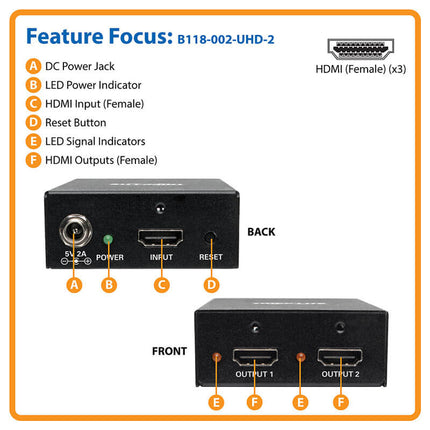

Tripp-Lite 2-Port 4K 3D HDMI Splitter, HDMI 2.0, HDCP 2.2, Ultra HD 4K x 2K Audio/Video, 3840 x 2160 @ 60 Hz,
| chnology | HDMI (All types) |
INPUT
| External Power Supply Input Specs (V / Hz / A) | 100-240V, 50/60HZ, 0.35A |
| External Power Supply Output Specs (V / A) | 5V, 2A |
| External Power Supply Cord Length (ft.) | 4.0 |
| External Power Supply Cord Length (m.) | 1.2 |
| External Power Supply Plug(s) | NEMA 5-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia |
| External Power Supply Certifications | CE; FCC; UL; cUL; TUV; CCC; PSE; C-Tick; GS; RoHS |
| Bus Powered | No |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | (x1) Green (Power), (x2) Orange (Signal) |
PHYSICAL
| Shipping Dimensions (hwd / cm) | 5.51 x 18.39 x 16.41 |
| Shipping Weight (kg) | 0.45 |
| Material of Construction | Metal |
| Color | Black |
| Rackmountable | Yes |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Storage Temperature Range | 5 to 122 F (-15 to 50 C) |
| Relative Humidity | 0% to 85% RH, Non-Condensing |
CONNECTIONS
| Ports | 2 |
| Side A - Connector 1 | HDMI (FEMALE) |
| Side B - Connector 1 | (2) HDMI (FEMALE) |
| Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
| Max Supported Video Resolution | 3840 x 2160 @ 60Hz |
| HDMI Specification | 2.0 |
| HDCP Specification | 2.2 |
| Audio Specification | DTS-HD, Dolby TrueHD, Dolby Digial Plus, and LPCM 7.1 Channel Surround Sound |
| Driver Required | No |
| Max Supported Color Depth | 36-bit Deep Color |
| EDID Compatible | Yes |
| 3D Video Supported | Yes |
CERTIFICATIONS
| Certifications | Tested to FCC, CE, ROHS |
Part Number (B118-002-UHD-2)
WARRANTY
| Product Warranty Period (Worldwide) |
3-year limited warranty |
Pickup is available at our Baghdad Branch.
Location: Baghdad-62st-near Saj Alreef
Call/Whatsapp: 07834927717
Order is usually ready within 24 hours.
