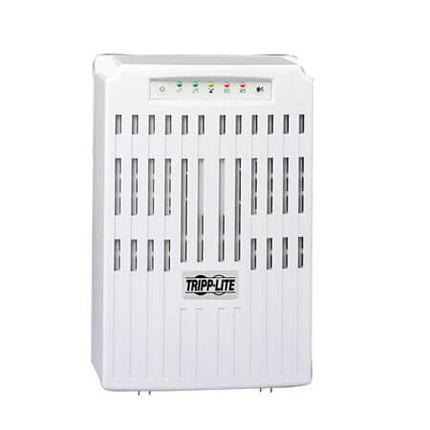

Tripp-Lite SmartPro 230V 3kVA 2.25kW Line-Interactive UPS, Tower SMARTINT3000VS
- Tripp-Lite
SKU: SMARTINT3000vs
950,000 IQD
OUTPUT
| Output Volt Amp Capacity (VA) | 3000 |
| Output kVA Capacity (kVA) | 3 |
| Output Watt Capacity (Watts) | 2250 |
| Output kW Capacity (kW) | 2.25 |
| Output Capacity Details | 2250W maximum with up to 1 external battery pack; 1500W maximum with 2 or more external battery packs |
| Power Factor | 0.75 |
| Nominal Output Voltage(s) Supported | 220V; 230V; 240V |
| Nominal Voltage Details | 230v nominal inverter output voltage |
| Frequency Compatibility | 50 / 60 Hz |
| Frequency Compatibility Details | Automatic frequency selection |
| Output Voltage Regulation (Line Mode) | -19% +8% |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Output Receptacles | (8) C13; (1) C19 |
| Included Output Power Cables | Includes 3 C13 to C14 output power cables |
| Load Management Receptacles | Three switchable two-outlet C13 load banks |
| Output Circuit Breakers | 10A (x2) - each breaker protects 4 C13 outlets each, C19 is unbreakered |
| Output AC Waveform (AC Mode) | Sine wave |
| Output AC Waveform (Battery Mode) | PWM sine wave |
INPUT
| Rated input current (Maximum Load) | 15.4A |
| Nominal Input Voltage(s) Supported | 230V AC |
| UPS Input Connection Type | C20 inlet |
| UPS Input Connection Description | User supplies input cabling with C19 output connection |
| Input Phase | Single-Phase |
BATTERY
| Full Load Runtime (min.) | 4 min. (2250w) |
| Half Load Runtime (min.) | 14 min. (1125w) |
| Expandable Battery Runtime | Extended runtime supported via optional external battery packs |
| External Battery Pack Compatibility | BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible) |
| DC System Voltage (VDC) | 48 |
| Battery Recharge Rate (Included Batteries) | Less than 4 hours from 10% to 90% (typical, full load discharge) |
| Internal UPS Replacement Battery Cartridge | RBC54 |
| Battery Access | Battery access door |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Expandable Runtime | Yes |
VOLTAGE REGULATION
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151V to 282V |
| Overvoltage Correction | Input voltages between 245 and 282 are reduced by 12% |
| Undervoltage Correction | Input voltages between 177 and 199 are boosted by 14% |
| Severe Undervoltage Correction | Input voltages between 151 and 176 are boosted by 30% |
USER INTERFACE, ALERTS & CONTROLS
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Audible Alarm | Audible alarm indicates power-failure, overload and low-battery conditions |
| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
SURGE / NOISE SUPPRESSION
| UPS AC Suppression Joule Rating | 480 |
| UPS AC Suppression Response Time | Instantaneous |
| EMI / RFI AC Noise Suppression | Yes |
PHYSICAL
| Primary Form Factor | Tower |
| UPS Power Module Dimensions (hwd, cm) | 36.07 x 23.37 x 30.48 |
| UPS Power Module Weight (kg) | 27.67 |
| Shipping Dimensions (hwd / cm) | 50.55 x 38.35 x 40.89 |
| Shipping Weight (kg) | 30.75 |
| Cooling Method | Fan |
| UPS Housing Material | Polycarbonate |
| Primary UPS Height (mm) | 361 |
| Primary UPS Width (mm) | 234 |
| Primary UPS Depth (mm) | 305 |
ENVIRONMENTAL
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Relative Humidity | 0 to 95%, non-condensing |
| AC Mode Efficiency Rating (100% Load) | 94% |
| Audible Noise | Audible Noise < 47dBA At Front Side 1 Meter |
COMMUNICATIONS
| Communications Interface | USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
| Network Management Cards | SNMPWEBCARD; TLNETCARD; WEBCARDLX |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| PowerAlert Software | For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Communications Cable | 2 USB and 2 DB9 cables included |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
LINE / BATTERY TRANSFER
| Transfer Time | 2-4 milliseconds |
| Low Voltage Transfer to Battery Power (Setpoint) | 151 |
| High Voltage Transfer to Battery Power (Setpoint) | 282 |
SPECIAL FEATURES
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| High Availability UPS Features | Hot swappable batteries |
CERTIFICATIONS
| UPS Certifications | CE |
| UPS Certification Details | CE 62040 |
WARRANTY
| Product Warranty Period (International) | 2-year limited warranty |
