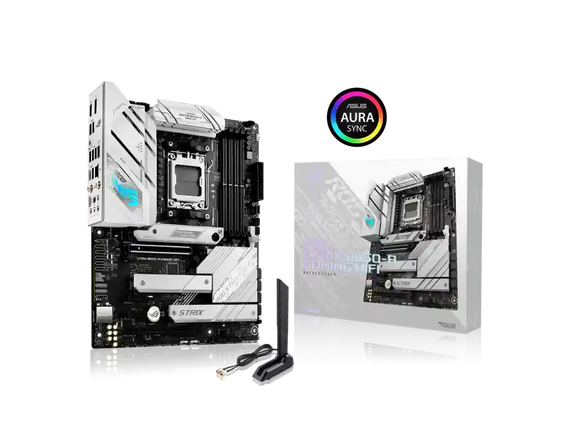

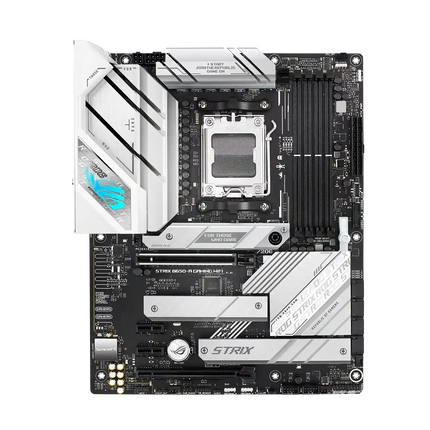

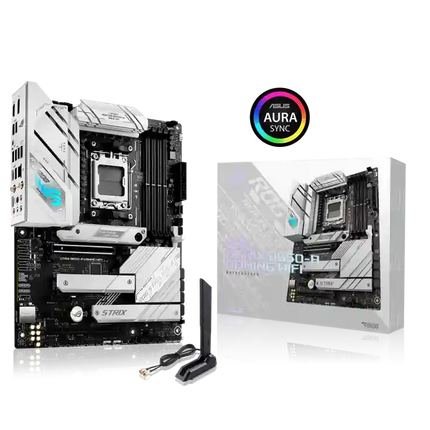

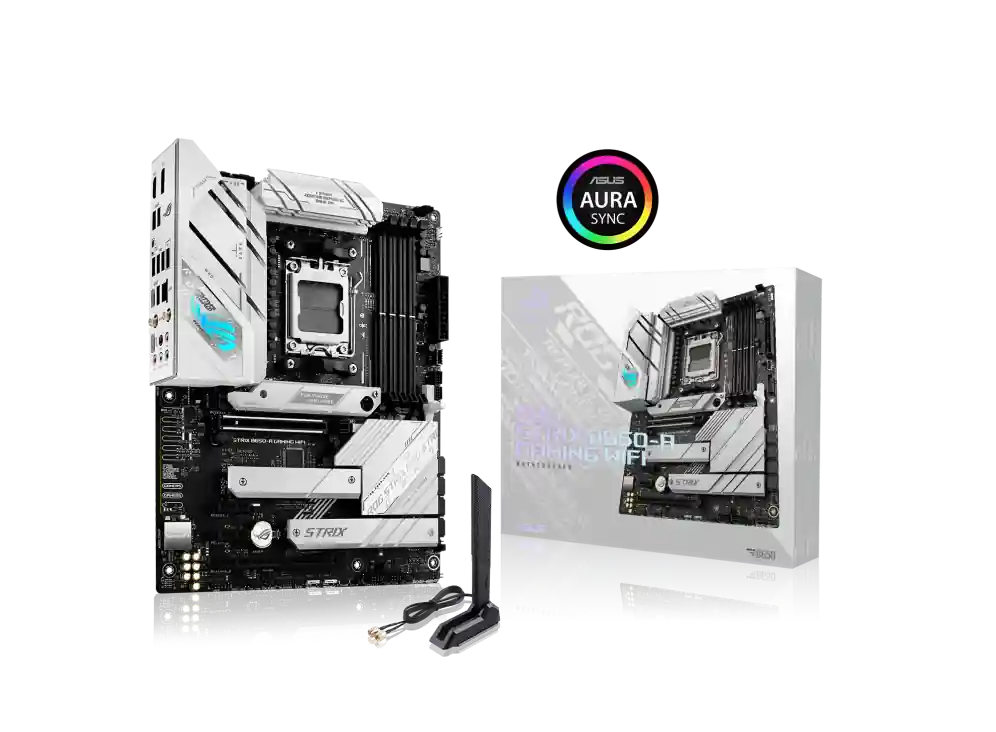

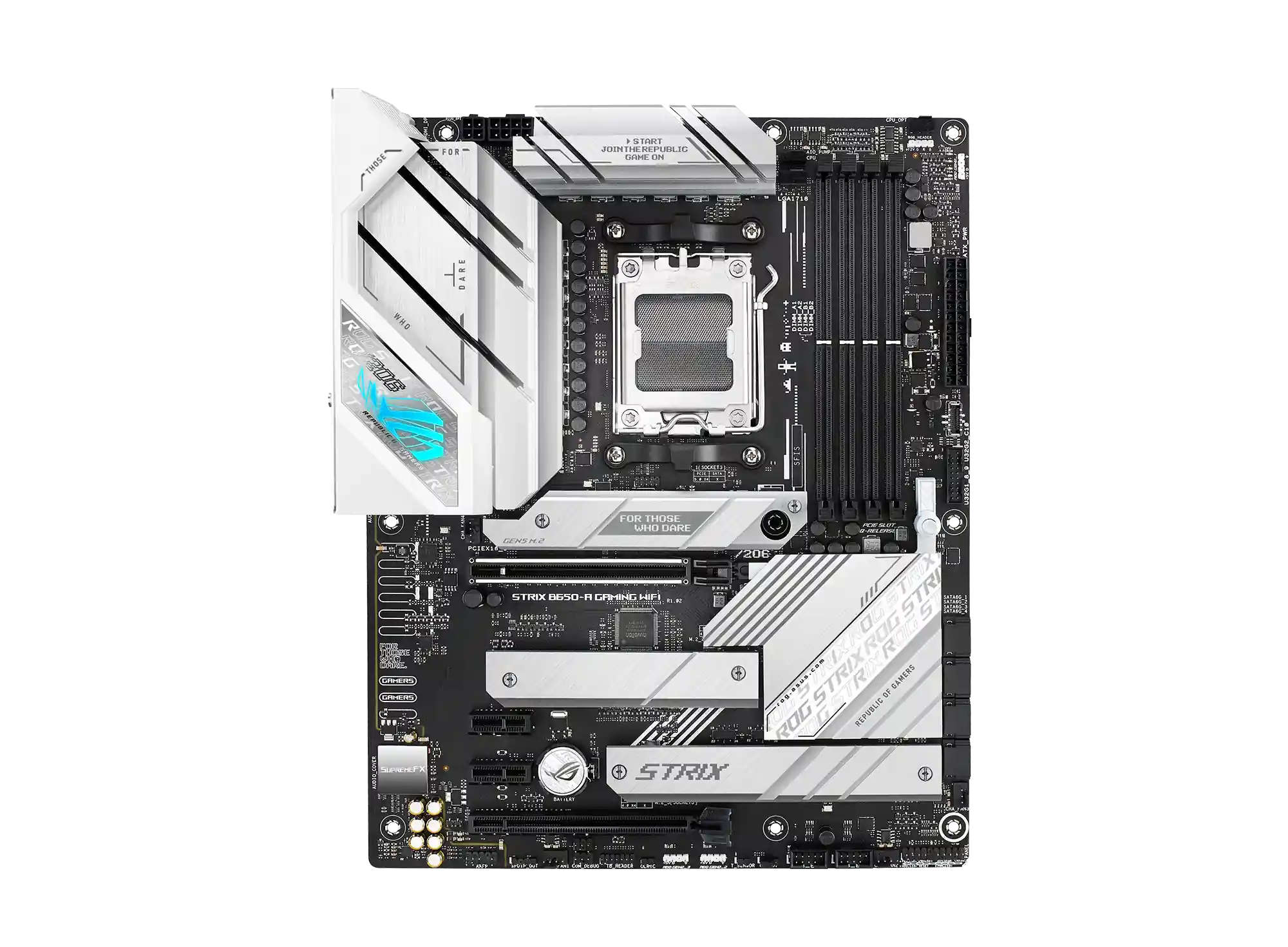

ASUS ROG Strix B650-A Gaming WiFi

Description

CPU Support

  • Socket: AM5

  • Compatible with: AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors

Chipset

  • AMD B650

Memory

  • 4 x DIMM slots, max capacity 192GB DDR5

  • Supported Speeds: DDR5 7600+(OC) down to 4800 (Non-OC)

  • Supports ECC & Non-ECC, un-buffered memory

  • Dual Channel Architecture

  • AMD EXPO™ profile support

  • ASUS OptiMem II technology

Graphics Output

  • 1 x DisplayPort 1.4 (up to 8K@60Hz)

  • 1 x HDMI® 2.1 (up to 4K@60Hz)

Expansion Slots

With Ryzen 9000 & 7000 Series:

  • 1 x PCIe 4.0 x16 slot

With Ryzen 8000 Series:

  • 1 x PCIe 4.0 x16 (supports x8/x4 mode)

Via B650 Chipset:

  • 1 x PCIe 4.0 x16 slot (x4 mode, shared with M.2_3)

  • 2 x PCIe 4.0 x1 slots

Storage

  • 3 x M.2 Slots:

    • M.2_1: PCIe 5.0 x4 (9000/7000 Series)

    • M.2_2: PCIe 4.0 x4

    • M.2_3: PCIe 4.0 x4 (shared with PCIe slot)

  • 4 x SATA 6Gb/s Ports

  • RAID Support: NVMe & SATA RAID 0/1/10

Networking

  • Intel® 2.5Gb Ethernet with ASUS LANGuard

  • Wi-Fi 6E (2x2) – Supports 2.4GHz/5GHz/6GHz

  • Bluetooth v5.2

Wi-Fi 6E support depends on OS (Windows 11+) and country regulations.

USB Ports

Rear I/O (Total 9 Ports):

  • 1 x USB 3.2 Gen 2x2 Type-C®

  • 4 x USB 3.2 Gen 2 (3 x Type-A, 1 x Type-C®)

  • 4 x USB 2.0 Type-A

Front Panel (Total 7 Ports):

  • 1 x USB 3.2 Gen 2 Type-C® connector

  • 1 x USB 3.2 Gen 1 header (2 ports)

  • 2 x USB 2.0 headers (4 ports)

Audio

  • ROG SupremeFX 7.1 HD Audio (ALC4080)

    • 120 dB SNR playback / 113 dB SNR recording

    • 32-bit / 384 kHz support

    • Savitech SV3H712 AMP, premium capacitors, and shielding

Rear Line-out does not support spatial audio. Use front panel for spatial features.

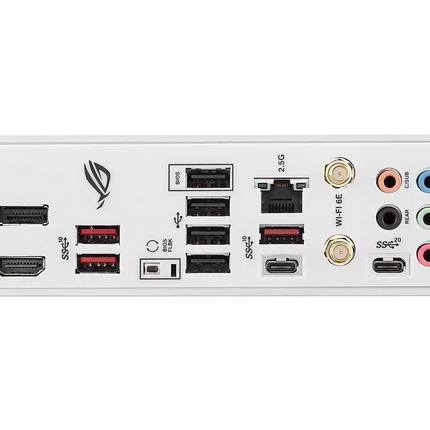

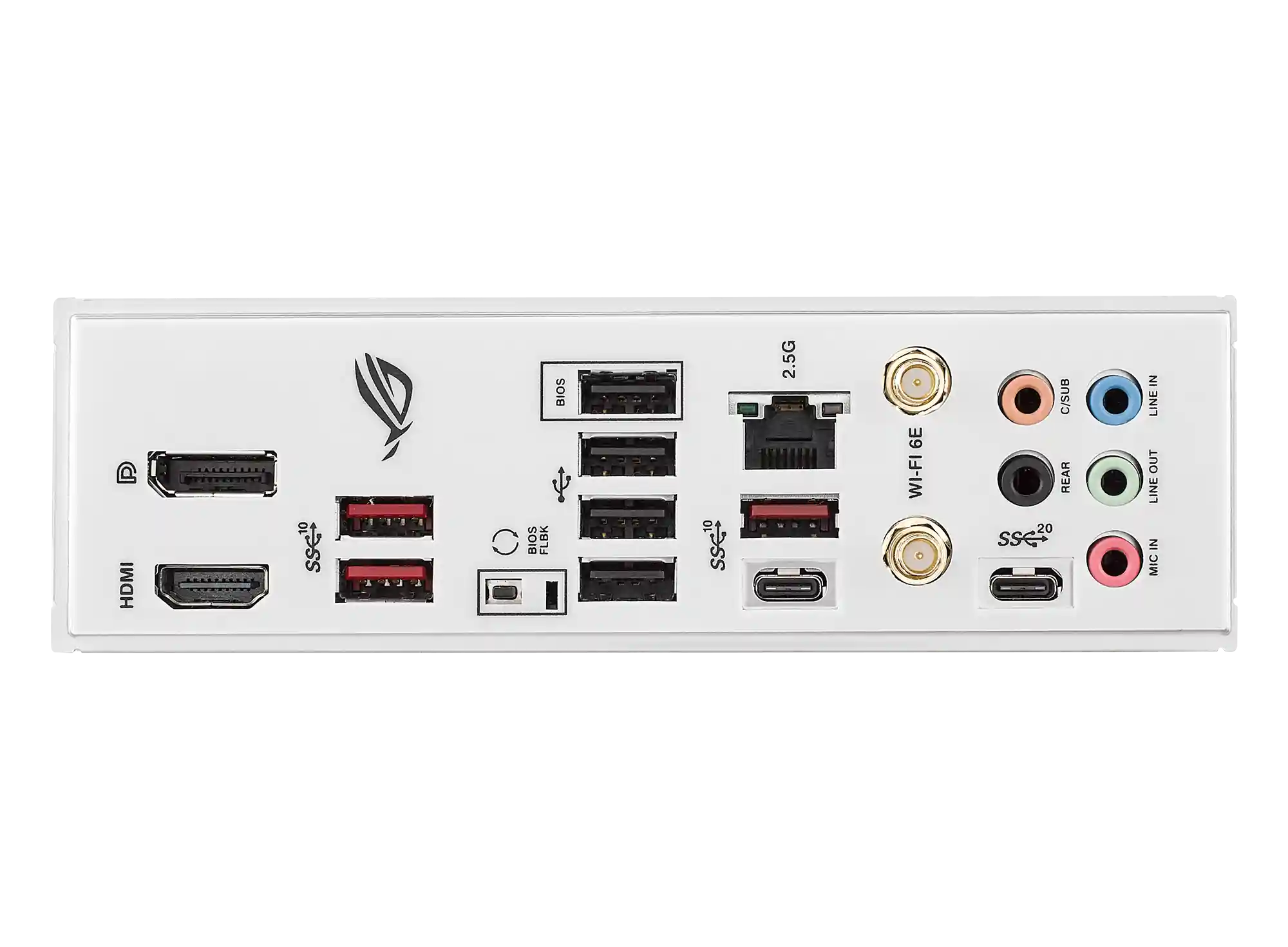

Back Panel I/O

  • 1 x USB 3.2 Gen 2x2 Type-C®

  • 4 x USB 3.2 Gen 2 (3 x Type-A + 1 x Type-C®)

  • 4 x USB 2.0

  • 1 x DisplayPort

  • 1 x HDMI®

  • 1 x Intel® 2.5Gb LAN

  • 1 x Wi-Fi Module

  • 5 x Audio jacks

  • 1 x BIOS FlashBack™ Button

Internal I/O Connectors

  • Cooling:

    • 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fans (all 4-pin)

  • Power:

    • 1 x 24-pin ATX

    • 1 x 8-pin +12V

    • 1 x 4-pin +12V

  • Misc:

    • 3 x Addressable Gen 2 RGB headers

    • 1 x AURA RGB header

    • Clear CMOS, Thermal Sensor, COM_DEBUG, CPU Over Voltage jumper

    • Front panel audio, S/PDIF Out, Thunderbolt™ header

    • System panel header with chassis intrusion

Special Features

  • ASUS Q-Design: M.2 Q-Latch, Q-LED, Q-Slot, Q-DIMM

  • ASUS Thermal Solution: VRM & M.2 heatsinks

  • ASUS EZ DIY: Pre-mounted I/O shield, BIOS FlashBack™, ProCool, SafeSlot, SafeDIMM

  • AURA Sync RGB: Full lighting customization

Software Bundle

  • ROG Software: GameFirst VI, Sonic Studio III, DTS® Sound Unbound, ROG CPU-Z

  • ASUS Software: Armoury Crate, AI Suite 3, Fan Xpert 4, MyASUS, PC Cleaner

  • Extras: WinRAR, AIDA64 Extreme (60-day trial)

BIOS

  • 256 Mb UEFI AMI BIOS

  • EZ Flash 3, CrashFree BIOS 3, UEFI EZ Mode

Accessories

  • 2 x SATA cables

  • 1 x Thermal pad (M.2)

  • 2 x M.2 rubber kits

  • 1 x ROG keychain

  • 1 x ROG thank you card & stickers

  • 1 x Wi-Fi antenna

  • 1 x Q-Latch kit

  • 1 x User guide

  • Cable ties

Operating System Support

  • Windows® 10 64-bit / Windows® 11 64-bit

Form Factor

  • ATX (30.5 cm x 24.4 cm)

avalible In Iraq

Product form

CPU Support Socket: AM5 Compatible with: AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors Chipset AMD B650 Memory 4... Read more

Free pickup in our shop(s)

SKU: 90MB1BP0-M0EAY0

370,000 IQD 355,000 IQD

    • 1 Year Warranty
