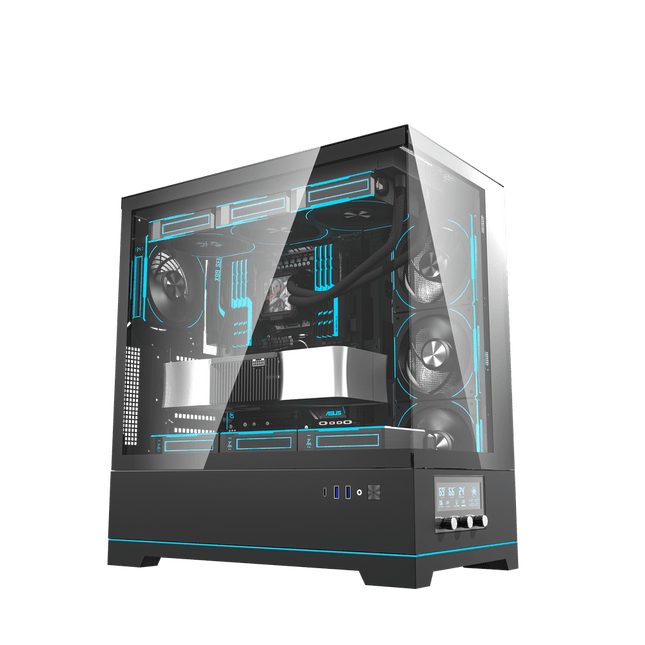

Case TypeMid-Tower ATXModelHOF ALLSYNQ CaseMaterial0.7mm SPCC (Chassis); Tempered Glass (Left Panel)M/BATX / M-ATX / ITXARGB ControllerAllSynq controller, up to 10 ARGB devices, supports case button and softwarePSU Max Length≤ 240 mmI/OUSB 3.2 x1, USB 2.0 x1, USB 3.2 Type C x1,
Microphone, Headphone, Reset Button, LED Button, Power Button
Drive Bays2 x 3.5'' HDD, 3 x 2.5'' SSDExpansion Slots9Fan Cooling CapabilityTop 3 x 120mm, 2 x 140mm,
Rear 1 x 120mm (ARGB Fans included),
Side 3 x 120mm (ARGB Fans Reverse included), 2 x 140mm, Bottom 3 x 120mm
Water Cooling CompatibilityTop 240 / 280 / 360,
Side 240 / 280 / 360,
Bottom 240 / 280 / 360
VGA Card Max. Length415mmCPU Cooler Max. Height160mmCase Dimensions420 x 285 x 430mmFull Case (inc Fascia) Dimensions424 x 285 x 448mmCarton Size502 x 358 x 515mmNet / Gross Weight7.59 / 9.50 kg
Case TypeMid-Tower ATXModelHOF ALLSYNQ CaseMaterial0.7mm SPCC (Chassis); Tempered Glass (Left Panel)M/BATX / M-ATX / ITXARGB ControllerAllSynq controller, up to 10 ARGB devices, supports case button and softwarePSU Max Length≤ 240 mmI/OUSB 3.2 x1, USB 2.0 x1, USB 3.2 Type C x1,
Microphone, Headphone, Reset Button, LED Button, Power Button
Drive Bays2 x 3.5'' HDD, 3 x 2.5'' SSDExpansion Slots9Fan Cooling CapabilityTop 3 x 120mm, 2 x 140mm,
Rear 1 x 120mm (ARGB Fans included),
Side 3 x 120mm (ARGB Fans Reverse included), 2 x 140mm, Bottom 3 x 120mm
Water Cooling CompatibilityTop 240 / 280 / 360,
Side 240 / 280 / 360,
Bottom 240 / 280 / 360
VGA Card Max. Length415mmCPU Cooler Max. Height160mmCase Dimensions420 x 285 x 430mmFull Case (inc Fascia) Dimensions424 x 285 x 448mmCarton Size502 x 358 x 515mmNet / Gross Weight7.59 / 9.50 kg
General Specifications
Form Factor Support: ATX, M-ATX, ITX
Material: SPCC with Tempered Glass
Dimensions:
Chassis: 350mm (L) × 205mm (W) × 470mm (H)
Full Case: 400.6mm (L) × 205mm (W) × 481.5mm (H)
Weight:
Net Weight: 4.3kg
Gross Weight: 4.95kg
Drive Bays
3.5" HDD: 2 bays
2.5" SSD: 3 bays
I/O Ports
Buttons: 2
USB 2.0 Ports: 2
USB 3.0 Port: 1
HD Audio Support: 1
Cooling Support
Fans:
Front: Up to 3×120mm (optional)
Top: 2×120mm or 2×140mm (optional)
Rear: 1×120mm (optional)
Water Cooling Support:
Front: Supports 240mm/280mm/360mm radiators
Top: Supports 240mm/280mm radiators
Rear: Supports 120mm radiator
Included RGB Fans: 4
Clearance
VGA Card Length: Up to 330mm
CPU Cooler Height: Up to 160mm
Cable Management Depth: 18mm
Design Elements
Front Panel: ABS with mesh cover
Top Panel: Metal cover
Side Panels: Tempered glass on the left, metal on the right
Model Number
MasterBox MB320L ARGB: MCB-B320L-KGNN-S01, MasterBox MB320L ARGB with Hub: MCB-B320L-KGNN-S02
Color(s)
Black
Materials
Steel, Plastic, Tempered Glass
Dimensions (L x W x H)
435.5 x 217.5 x 410mm
Weight
5.47kg
Motherboard Support
Micro ATX, Mini ITX
Expansion Slots
4
5.25" Drive Bays
N/A
3.5" Drive Bays
2
2.5" Drive Bays
2
I/O Panel
2x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
ARGB Controller
MasterBox MB320L ARGB: 1x ARGB 1-to-3 Splitter, MasterBox MB320L ARGB with Hub: 1x ARGB Hub
Pre-installed Fans - Front
2x 120mm CF120 ARGB Fan
Fan Support - Top
2x 120/140mm
Fan Support - Front
3 x 120mm* / 2 x 140mm, *can only mount behind the front plate
Fan Support - Rear
1x 120mm
Radiator Support - Top
120mm, 240mm
Radiator Support - Front
120mm, 140mm, 240mm, 280mm
Radiator Support - Rear
120mm
Clearance - CPU Cooler
166mm/6.54"
Clearance - FOR POWER
325mm (w/o front radiator & HDD cage), 140mm (HDD cage in backmost position)
Clearance - GFX
344mm
Cable Routing
18-22mm
Dust Filters
Front, Top, Bottom
Power Supply Support
Bottom Mount, ATX
Warranty
2 years
Series
MasterBox Series
Size
Mini Tower
