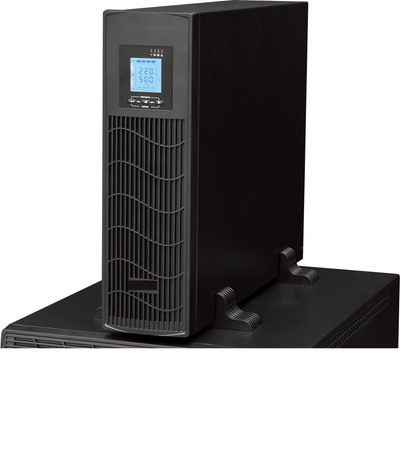

The Zeus 2600VA UPS provides superior electricity protection for your home or office. With 230V voltage rating,it is designed to keep your electronics safe and secure from sudden power outages. Highly reliable and efficient, it is an ideal choice for today's ever-changing electricity needs.
2 12-9 Batteries
1560 Watt output
universal plug design
The Zeus 3000VA Online UPS boasts 2700W of total power, with 8 batteries for reliable backup power. It provides efficient and reliable power protection for servers, telecom equipment and other critical applications.
Brand Name
Vision
EAN
0682017973852
Item Weight
11.85 pounds
Number of Items
1
Part Number
VCP12170
UNSPSC Code
32000000
UPC
682017973852
Voltage
12.0 volts
Output
Output power capacity
900Watts / 1.5 kVA
Max Configurable Power (Watts)
900Watts / 1.5 kVA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Input
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
180 - 287V
Input voltage adjustable range for mains operation
170 - 300V
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
RBC6
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
--
Surge Protection and Filtering
Surge energy rating
459Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
219mm , 21.9CM
Maximum Width
171mm , 17.1CM
Maximum Depth
439mm , 43.9CM
Net Weight
24.09KG
Shipping weight
27.23KG
Shipping Height
376mm , 37.6CM
Shipping Width
328mm , 32.8CM
Shipping Depth
595mm , 59.5CM
Color
Black
Master Carton Units
1.0
Units per Pallet
18.0
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
135.0BTU/hr
The Zeus 2600VA UPS provides superior electricity protection for your home or office. With 230V voltage rating,it is designed to keep your electronics safe and secure from sudden power outages. Highly reliable and efficient, it is an ideal choice for today's ever-changing electricity needs.
2 12-9 Batteries
750 Watt output
universal plug design
Nominal Voltage Number of cell Design Life Nominal Capacity 77℉(25℃) Internal Resistance Self-Discharge Operating Temperature Range Max. Discharge Current 77℉(25℃) Short Circuit Current Charge Methods: Constant Voltage Charge 77℉(25℃) 12V 6 10 years 5 hour rate (11.3A, 10.5V) 56.5Ah 1 hour rate (44.2A, 9.6V) 44.2Ah Fully Charged battery 77 (25℃) mOhms 3% of capacity declined per month at 20℃(average) Discharge -20~60℃ Charge -10~60℃ Storage -20~60℃ 650A(5s) 1700A Cycle use Maximum charging current 19.5A Temperature compensation -30mV/℃ Standby use Temperature compensation -20mV/℃ 10 hour rate (6.5A, 10.8V) 65.0Ah ≤6.8 2.40-2.45VPC 2.20-2.30VPC
