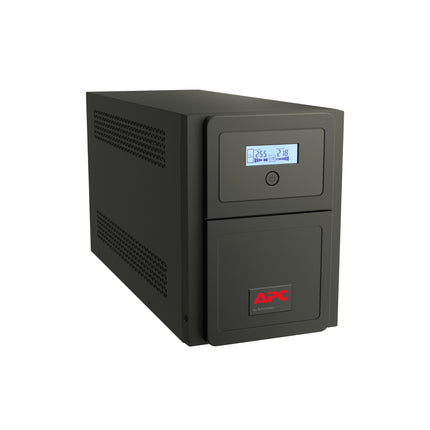

APC Easy UPS SMV 1500VA, Universal Outlet, 230V

Description


Output power capacity
700Watts / 1.0kVA
Max Configurable Power (Watts)
700Watts / 1.0kVA
Nominal Output Voltage
230V
Output Frequency (not synced)
50/60 Hz +/-1 Hz
Load Crest Factor
3 : 1
Topology
Line Interactive
Waveform type
Sine wave
Transfer Time
2ms typical

Input

Nominal Input Voltage
230V
Input frequency
45 - 65 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
160 - 295V
Number of Power Cords
1
Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
4hour(s)
Expected Battery Life (years)
3 - 5
Battery Volt-Amp-Hour Capacity
150
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph

Communications & Management

Interface Port(s)
USB
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Physical

Maximum Height
220MM, 22.0CM
Maximum Width
160MM, 16.0CM
Maximum Depth
410MM, 41.0CM
Net Weight
13.6KG
Shipping weight
16.6KG
Shipping Height
339MM, 33.9CM
Shipping Width
272MM, 27.2CM
Shipping Depth
508MM, 50.8CM

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 90 %
Operating Elevation
0-999.9meters
Storage Temperature
-10 - 40 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-3000meters
Audible noise at 1 meter from surface of unit
45.0dBA

Conformance

Approvals
CE
Standard warranty
2 years repair or replace
Product form

  Output power capacity 700Watts / 1.0kVA Max Configurable Power (Watts) 700Watts / 1.0kVA Nominal Output Voltage 230V Output Frequency (not synced)... Read more

Free pickup in our shop(s)

SKU: SMV1500AI-MSX

545,000 IQD

      Description


      Output power capacity
      700Watts / 1.0kVA
      Max Configurable Power (Watts)
      700Watts / 1.0kVA
      Nominal Output Voltage
      230V
      Output Frequency (not synced)
      50/60 Hz +/-1 Hz
      Load Crest Factor
      3 : 1
      Topology
      Line Interactive
      Waveform type
      Sine wave
      Transfer Time
      2ms typical

      Input

      Nominal Input Voltage
      230V
      Input frequency
      45 - 65 Hz (auto sensing)
      Input Connections
      IEC-320 C14
      Input voltage range for main operations
      160 - 295V
      Number of Power Cords
      1
      Other Input Voltages
      220, 240

      Batteries & Runtime

      Battery type
      Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
      Typical recharge time
      4hour(s)
      Expected Battery Life (years)
      3 - 5
      Battery Volt-Amp-Hour Capacity
      150
      Runtime
      View Runtime Graph
      View Runtime Chart
      Efficiency
      View Efficiency Graph

      Communications & Management

      Interface Port(s)
      USB
      Audible Alarm
      Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

      Physical

      Maximum Height
      220MM, 22.0CM
      Maximum Width
      160MM, 16.0CM
      Maximum Depth
      410MM, 41.0CM
      Net Weight
      13.6KG
      Shipping weight
      16.6KG
      Shipping Height
      339MM, 33.9CM
      Shipping Width
      272MM, 27.2CM
      Shipping Depth
      508MM, 50.8CM

      Environmental

      Operating Temperature
      0 - 40 °C
      Operating Relative Humidity
      0 - 90 %
      Operating Elevation
      0-999.9meters
      Storage Temperature
      -10 - 40 °C
      Storage Relative Humidity
      0 - 95 %
      Storage Elevation
      0-3000meters
      Audible noise at 1 meter from surface of unit
      45.0dBA

      Conformance

      Approvals
      CE
      Standard warranty
      2 years repair or replace
