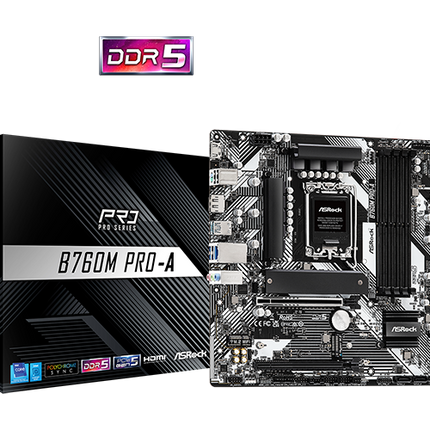

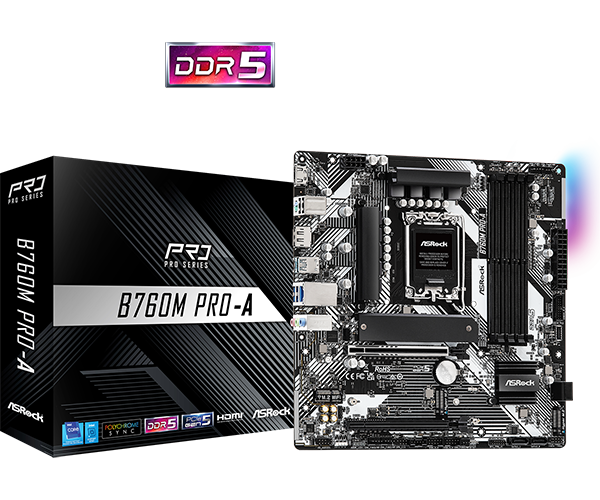

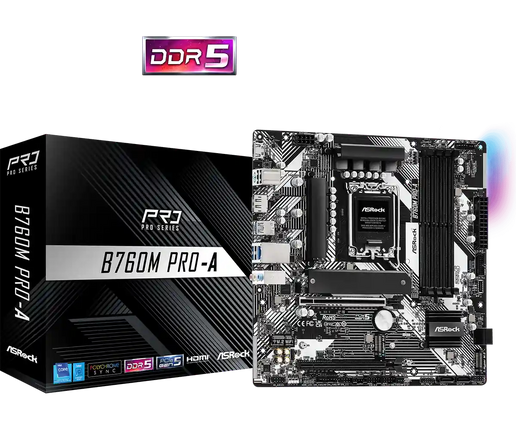

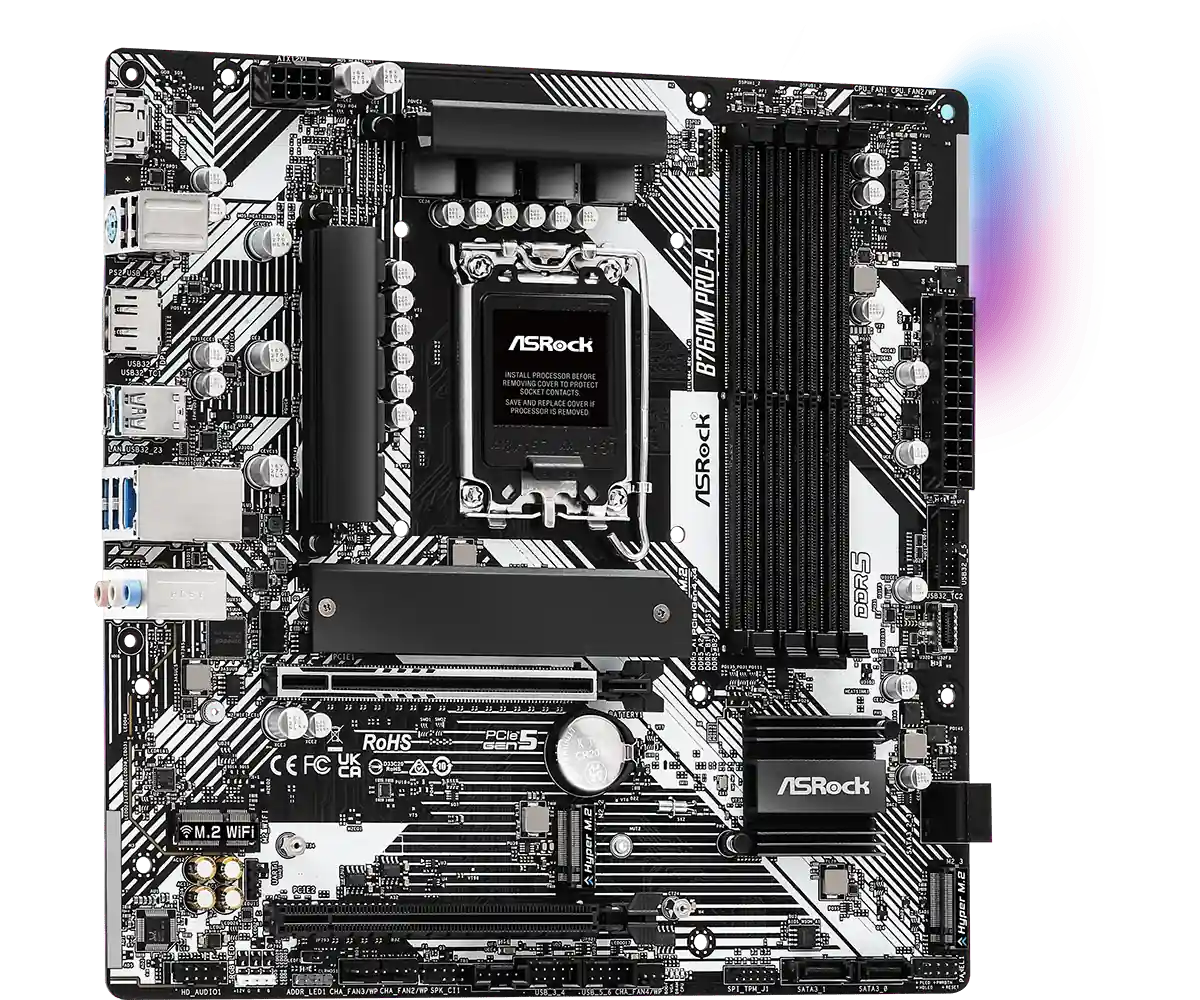

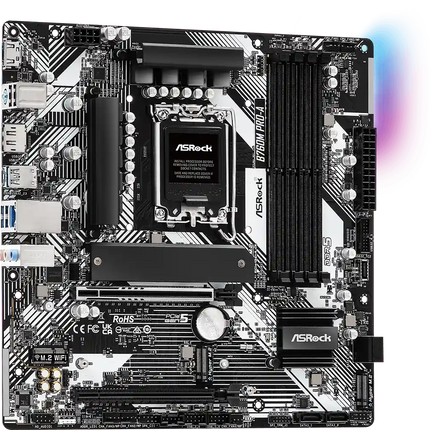

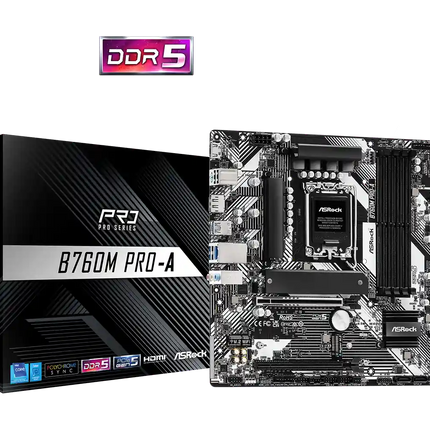

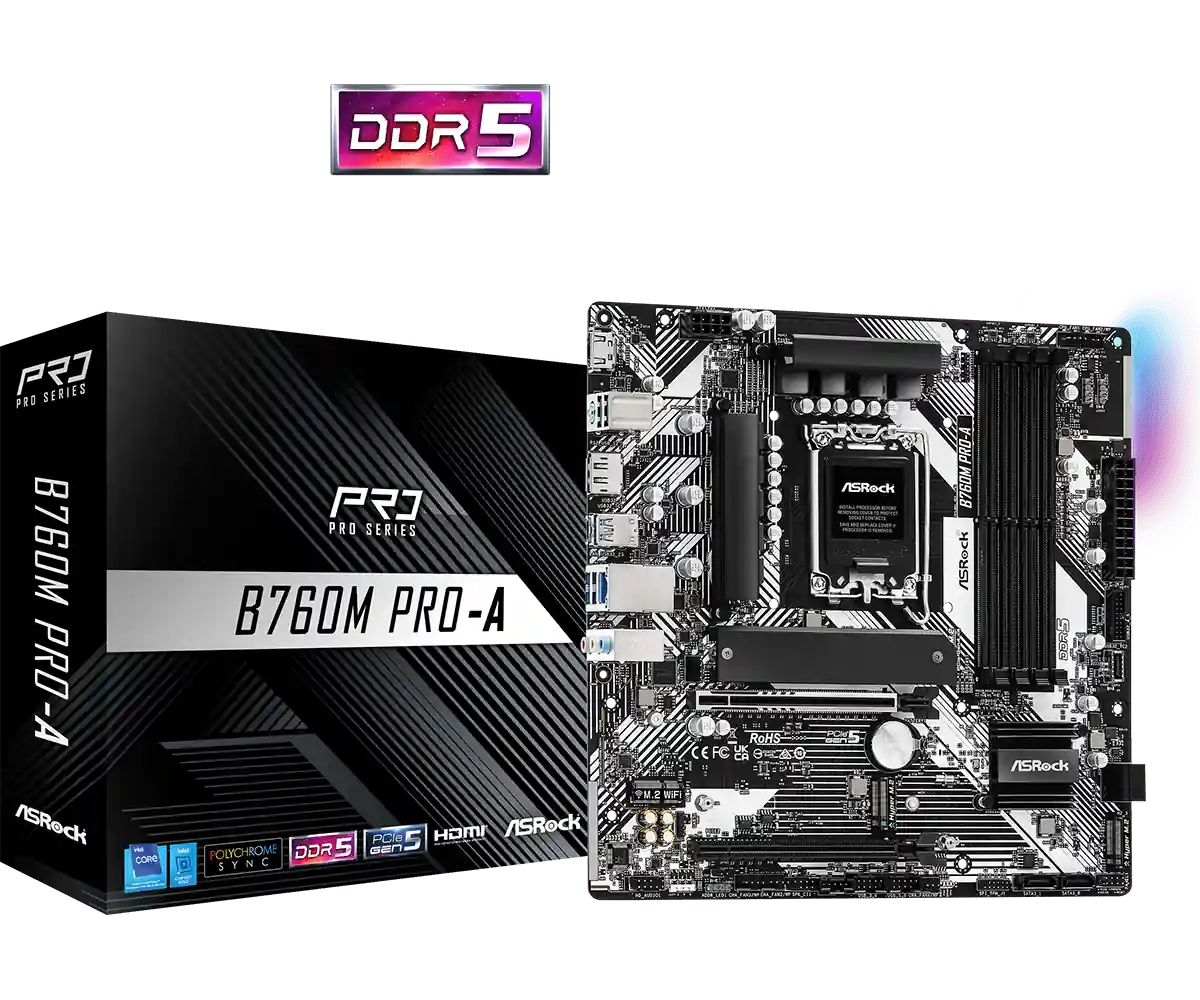

ASRrock B760M Pro-A D5

Description

  • Key Features

    Superb Productivity

    • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

    • PCIe Gen5 for graphics

    • Dual Channel DDR5 memory support

    Rock-Solid Durability

    • 7+1+1 Power Phase Design

    • Dr.MOS for VCore + GT

    Ultrafast Connectivity

    • 2.5G LAN with Dragon RTL8125BG

    • USB 3.2 Gen1 Type-C (Front & Rear)

    • Triple Hyper M.2 (PCIe Gen4 x4)

    EZ Tools

    • ASRock Auto Driver Installer

    • ASRock Post Status Checker

    • ASRock EZ Mode BIOS

    CPU Support

    • LGA1700 socket

    • 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® CPUs

    • Supports Intel® Hybrid Technology, Turbo Boost Max 3.0, TVB, and ABT

    Memory

    • 4 x DDR5 DIMM slots, up to 256GB

    • Speeds: Up to DDR5-7200+ (OC)*

    • Dual Channel, Non-ECC, Un-buffered

    • Supports Intel® XMP 3.0

    • Native speed varies by configuration:

      • 1DPC 1R: 7200+ MHz

      • 1DPC 2R: 6000+ MHz

      • 2DPC 1R: 5600+ MHz

      • 2DPC 2R: 4800+ MHz

    Graphics Support

    • Integrated Intel® Xe Graphics (Gen 12)

    • 1 x HDMI 2.1 (4K@60Hz, HDCP 2.3)

    • 1 x DisplayPort 1.4 (up to 8K@60Hz / 5K@120Hz)

    Audio

    • Realtek ALC897 7.1 CH HD Audio CODEC

    Networking

    • 2.5 Gigabit LAN (Dragon RTL8125BG)

    • Smart bandwidth control with gaming/browser/streaming modes

    Expansion Slots

    • 1 x PCIe 5.0 x16 (Graphics, from CPU)

    • 1 x PCIe 3.0 x16 (x4 mode, from chipset)

    • 1 x M.2 (Key E) for Wi-Fi/BT module (Intel CNVi supported)

    • Supports AMD CrossFire™

    Storage

    • 3 x Hyper M.2 (PCIe Gen4x4, up to 64 Gb/s)

    • 4 x SATA 6Gb/s ports

    • Intel® VMD supported

    • NVMe & SATA RAID 0/1/5/10 supported

    USB Ports

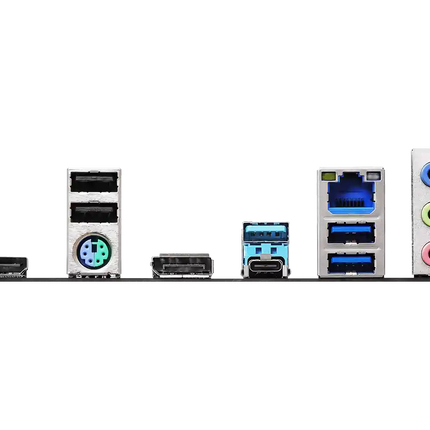

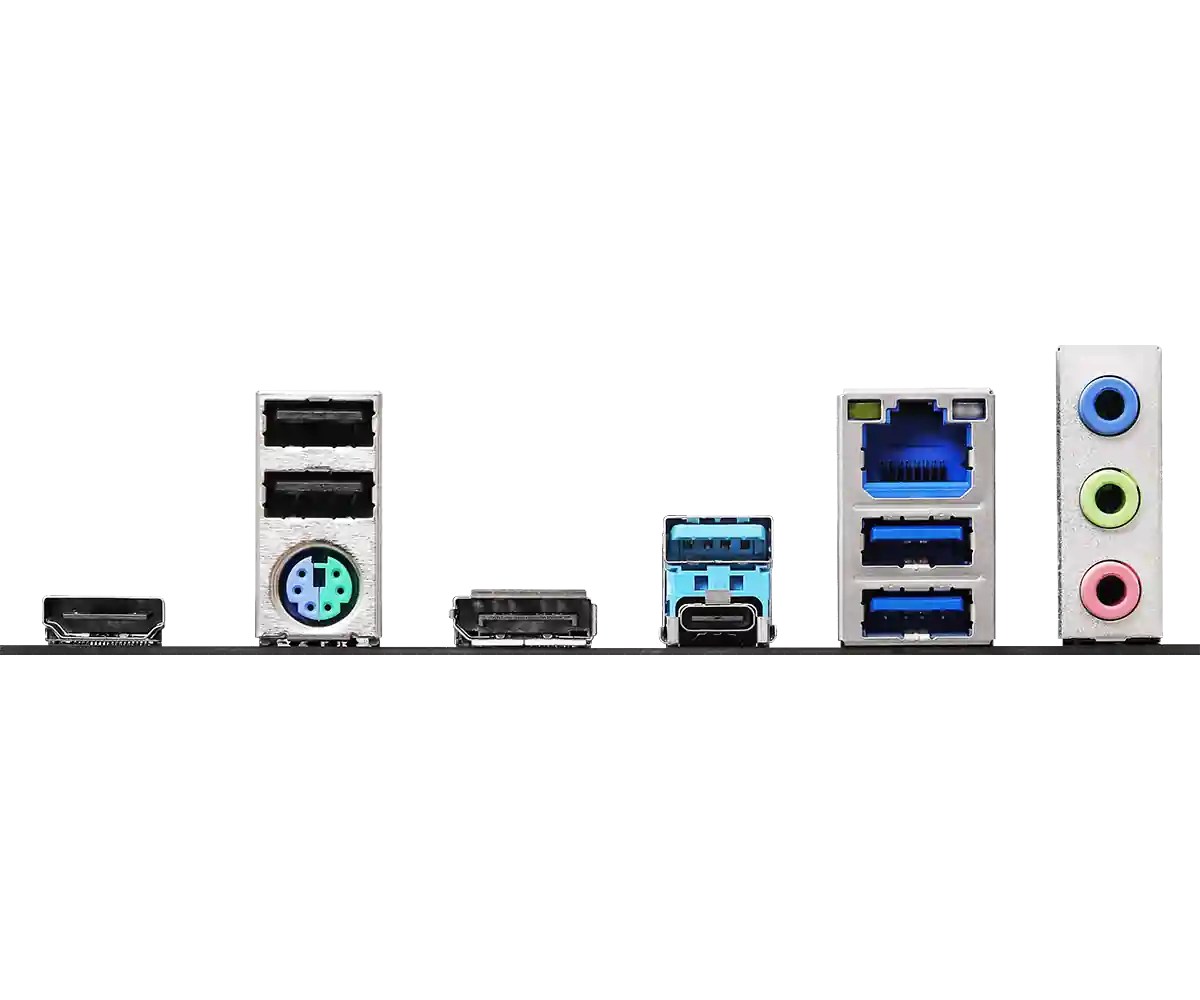

    Rear I/O:

    • 1 x USB 3.2 Gen1 Type-C

    • 3 x USB 3.2 Gen1 Type-A

    • 2 x USB 2.0

    • 1 x PS/2 keyboard/mouse combo

    • HDMI, DisplayPort

    • RJ-45 LAN

    • HD Audio jacks

    Internal:

    • 1 x USB 3.2 Gen1 Type-C header

    • 1 x USB 3.2 Gen1 header (2 ports)

    • 2 x USB 2.0 headers (4 ports)

    Headers & Connectors

    • 1 x 24-pin ATX power

    • 1 x 8-pin 12V Hi-Density power

    • 1 x CPU fan (4-pin)

    • 1 x CPU water pump fan (4-pin, 2A)

    • 4 x Chassis/water pump fan headers (4-pin, 2A)

    • 1 x RGB LED header (12V)

    • 3 x Addressable RGB headers (5V)

    • 1 x Front panel audio

    • 1 x TPM header

    • 1 x Thunderbolt™ AIC connector

    • 1 x Front panel Type-C USB 3.2 Gen1 header

    • 1 x SPI TPM header

    • Chassis intrusion, speaker header

    BIOS & Utilities

    • 128Mb AMI UEFI BIOS

    • ASRock EZ Mode & Full HD UEFI

    • Auto Driver Installer, Instant Flash, Easy RAID Installer

    • ASRock A-Tuning & Polychrome RGB Software

    • ASRock Live Update & App Shop

    Accessories Included

    • User Manual

    • I/O Shield

    • 2 x SATA Cables

    • 4 x M.2 Screws

    • 1 x M.2 Standoff

    Operating System Support

    • Windows 10 64-bit

    • Windows 11 64-bit

    Form Factor: Micro ATX (24.4 cm x 24.4 cm)
    Certifications: FCC, CE, ErP/EuP Ready

    available In Iraq

Product form

Key Features Superb Productivity Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) PCIe Gen5 for graphics Dual Channel... Read more

Free pickup in our shop(s)

SKU: 90-MXBNF0-A0UAYZ

195,000 IQD 185,000 IQD
