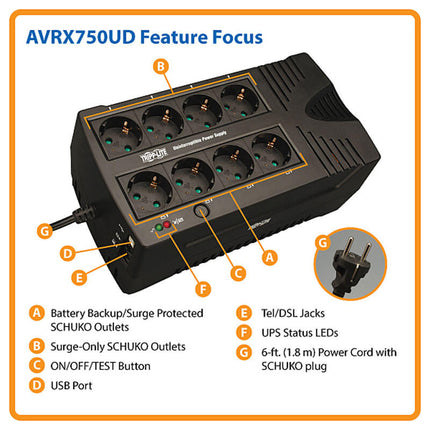

Tripp-Lite AVR Series 230V 750VA

Description

OUTPUT
Output Volt Amp Capacity (VA) 750
Output Watt Capacity (Watts) 450
Nominal Output Voltage(s) Supported 220V; 230V; 240V
Nominal Voltage Details 230V nominal output in battery mode
Frequency Compatibility 50 / 60 Hz
Frequency Compatibility Details Automatic frequency selection
Output Voltage Regulation (Line Mode) +8%, -21%
Output Voltage Regulation (Battery Mode) +/- 5%
Output Receptacles (8) CEE7/7
UPS Output Receptacles (Surge Suppression Only) 4 UPS outlets, 4 surge-only outlets
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) PWM sine wave
INPUT
Rated input current (Maximum Load) 10A
Nominal Input Voltage(s) Supported 230V AC
UPS Input Connection Type CEE 7/7 Schuko
UPS Input Cord Length (ft.) 6
UPS Input Cord Length (m) 1.8
Input Phase Single-Phase
BATTERY
Full Load Runtime (min.) 2.6 min. (450w)
Half Load Runtime (min.) 8.6 min. (225w)
DC System Voltage (VDC) 12
Battery Recharge Rate (Included Batteries) Less than 16 hours from 10% to 90%
Internal UPS Replacement Battery Cartridge  RBC51  (QTY 1)
Battery Access Battery access door
Battery Replacement Description Hot-swappable, user replaceable batteries
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 159 to 282VAC
Overvoltage Correction Input voltages between 245 and 282 are reduced by 12%
Undervoltage Correction Input voltages between 159 and 205 are boosted by 14%
USER INTERFACE, ALERTS & CONTROLS
Switches Combination switch controls on/off power status and self-test operation
Audible Alarm Audible alarm indicates power-failure, overload and low-battert status
LED Indicators 2 LEDs indicate off/on power status and overload/low-battery status
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 575
UPS AC Suppression Response Time Instantaneous
UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out)
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Installation Form Factors Supported with Included Accessories Ultra-compact desktop; Wallmount
Primary Form Factor Desktop
UPS Power Module Dimensions (hwd, cm) 12.01 x 27.94 x 15.24
UPS Power Module Weight (kg) 5.99
Shipping Dimensions (hwd / cm) 23.37 x 36.50 x 23.37
Shipping Weight (kg) 6.53
UPS Housing Material ABS
Primary UPS Height (mm) 120
Primary UPS Width (mm) 279
Primary UPS Depth (mm) 152
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 16
Battery Mode BTU / Hr. (Full Load) 408
AC Mode Efficiency Rating (100% Load) 99%
COMMUNICATIONS
Communications Interface USB
PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Communications Cable USB interface cable included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network UPS Tools Compatibility NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
LINE / BATTERY TRANSFER
Transfer Time 4 milliseconds (line to battery mode) / 1 millisecond (battery to line mode)
Low Voltage Transfer to Battery Power (Setpoint) 159
High Voltage Transfer to Battery Power (Setpoint) 282
SPECIAL FEATURES
Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
High Availability UPS Features Hot swappable batteries
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
CERTIFICATIONS
UPS Certifications CE; Meets FCC Part 15 Category B (EMI); ROHS (Restriction of Hazardous Substances)
UPS Certification Details IEC 62040, IEC 60950, EN 62040
WARRANTY
Product Warranty Period (International) 2-year limited warranty
Product form

OUTPUT Output Volt Amp Capacity (VA) 750 Output Watt Capacity (Watts) 450 Nominal Output Voltage(s) Supported 220V; 230V; 240V Nominal... Read more

Free pickup in our shop(s)

SKU: AVRX750UD

130,000 IQD

    • 1 Year Warranty

    Description

    OUTPUT
    Output Volt Amp Capacity (VA) 750
    Output Watt Capacity (Watts) 450
    Nominal Output Voltage(s) Supported 220V; 230V; 240V
    Nominal Voltage Details 230V nominal output in battery mode
    Frequency Compatibility 50 / 60 Hz
    Frequency Compatibility Details Automatic frequency selection
    Output Voltage Regulation (Line Mode) +8%, -21%
    Output Voltage Regulation (Battery Mode) +/- 5%
    Output Receptacles (8) CEE7/7
    UPS Output Receptacles (Surge Suppression Only) 4 UPS outlets, 4 surge-only outlets
    Output AC Waveform (AC Mode) Sine wave
    Output AC Waveform (Battery Mode) PWM sine wave
    INPUT
    Rated input current (Maximum Load) 10A
    Nominal Input Voltage(s) Supported 230V AC
    UPS Input Connection Type CEE 7/7 Schuko
    UPS Input Cord Length (ft.) 6
    UPS Input Cord Length (m) 1.8
    Input Phase Single-Phase
    BATTERY
    Full Load Runtime (min.) 2.6 min. (450w)
    Half Load Runtime (min.) 8.6 min. (225w)
    DC System Voltage (VDC) 12
    Battery Recharge Rate (Included Batteries) Less than 16 hours from 10% to 90%
    Internal UPS Replacement Battery Cartridge  RBC51  (QTY 1)
    Battery Access Battery access door
    Battery Replacement Description Hot-swappable, user replaceable batteries
    Expandable Runtime No
    VOLTAGE REGULATION
    Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 159 to 282VAC
    Overvoltage Correction Input voltages between 245 and 282 are reduced by 12%
    Undervoltage Correction Input voltages between 159 and 205 are boosted by 14%
    USER INTERFACE, ALERTS & CONTROLS
    Switches Combination switch controls on/off power status and self-test operation
    Audible Alarm Audible alarm indicates power-failure, overload and low-battert status
    LED Indicators 2 LEDs indicate off/on power status and overload/low-battery status
    SURGE / NOISE SUPPRESSION
    UPS AC Suppression Joule Rating 575
    UPS AC Suppression Response Time Instantaneous
    UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out)
    EMI / RFI AC Noise Suppression Yes
    PHYSICAL
    Installation Form Factors Supported with Included Accessories Ultra-compact desktop; Wallmount
    Primary Form Factor Desktop
    UPS Power Module Dimensions (hwd, cm) 12.01 x 27.94 x 15.24
    UPS Power Module Weight (kg) 5.99
    Shipping Dimensions (hwd / cm) 23.37 x 36.50 x 23.37
    Shipping Weight (kg) 6.53
    UPS Housing Material ABS
    Primary UPS Height (mm) 120
    Primary UPS Width (mm) 279
    Primary UPS Depth (mm) 152
    ENVIRONMENTAL
    Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
    Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
    Relative Humidity 0 to 95%, non-condensing
    AC Mode BTU / Hr. (Full Load) 16
    Battery Mode BTU / Hr. (Full Load) 408
    AC Mode Efficiency Rating (100% Load) 99%
    COMMUNICATIONS
    Communications Interface USB
    PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
    Communications Cable USB interface cable included
    WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
    Network UPS Tools Compatibility NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
    LINE / BATTERY TRANSFER
    Transfer Time 4 milliseconds (line to battery mode) / 1 millisecond (battery to line mode)
    Low Voltage Transfer to Battery Power (Setpoint) 159
    High Voltage Transfer to Battery Power (Setpoint) 282
    SPECIAL FEATURES
    Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
    High Availability UPS Features Hot swappable batteries
    Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
    CERTIFICATIONS
    UPS Certifications CE; Meets FCC Part 15 Category B (EMI); ROHS (Restriction of Hazardous Substances)
    UPS Certification Details IEC 62040, IEC 60950, EN 62040
    WARRANTY
    Product Warranty Period (International) 2-year limited warranty
