GIGABYTE B760 GAMING X DDR5 WIFI6E GEN5

Description

CPU Support

  • Socket: LGA1700

  • Supports:

    • 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors

  • L3 cache varies by CPU

  • Refer to GIGABYTE’s website for full CPU compatibility

Chipset

  • Intel® B760 Express Chipset

Memory

  • 4 × DDR5 DIMM slots (Dual Channel)

  • Up to 256 GB system memory (64 GB per DIMM)

  • Supported Speeds:

    • 14th/13th Gen Core™ i9/i7: DDR5 5600/5200/4800/4400 MT/s

    • 13th Gen Core™ i5/i3 & 12th Gen Core™/Pentium®/Celeron®: DDR5 4800/4400 MT/s

  • Supports:

    • ECC Un-buffered DIMMs (non-ECC mode)

    • Non-ECC Un-buffered DIMMs

    • Intel XMP Memory Modules

  • Memory type/speed may vary by CPU and configuration

Graphics (Integrated, CPU-dependent)

  • DisplayPort 1.2: Max resolution 4096×2304 @ 60Hz (HDCP 2.3)

  • HDMI 2.1: Max resolution 4096×2160 @ 60Hz (HDCP 2.3, native TMDS)

  • Graphics availability and performance depend on the processor

Audio

  • Realtek® Audio CODEC

  • High Definition Audio, 2/4/5.1/7.1-channel

  • S/PDIF Out support

  • Audio jack function customizable via software

LAN & Wireless

  • LAN: Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)

  • Wi-Fi: Intel® Wi-Fi 6E AX210

    • Bands: 2.4/5/6 GHz

    • Bluetooth® 5.3

    • 11ax 160MHz wireless support

    • Actual data rate may vary

Expansion Slots

  • CPU Linked:

    • 1 × PCIe x16 (PCIe 5.0 x16)

  • Chipset Linked:

    • 2 × PCIe x16 (PCIe 3.0 x1)

Storage Interfaces

  • CPU:

    • 1 × M.2 (M2A_CPU) – PCIe 4.0 x4/x2 (22110/2280)

  • Chipset:

    • 2 × M.2 (M2P_SB, M2M_SB) – PCIe 4.0 x4/x2 (22110/2280)

    • 4 × SATA 6Gb/s

  • Supports RAID 0, 1, 5, 10 (SATA only)

USB Ports

  • Back Panel:

    • 1 × USB 3.2 Gen 2 Type-A (Red)

    • 1 × USB 3.2 Gen 1 Type-C

    • 1 × USB 3.2 Gen 1 Type-A

    • 5 × USB 2.0/1.1

  • Internal Headers:

    • 1 × USB 3.2 Gen 2 Type-C

    • 1 × USB 3.2 Gen 1

    • 2 × USB 2.0 (4 ports)

Internal I/O Connectors

  • 1 × 24-pin ATX main power

  • 1 × 8-pin ATX 12V

  • 1 × CPU fan header

  • 1 × CPU/water pump fan header

  • 3 × System fan headers

  • 1 × System/water pump fan header

  • 3 × Addressable RGB Gen2 headers

  • 1 × RGB LED header

  • 3 × M.2 Socket 3 connectors

  • 4 × SATA 6Gb/s connectors

  • 1 × Front panel header

  • 1 × Front panel audio header

  • 1 × S/PDIF Out header

  • 1 × TPM header

  • 1 × USB 3.2 Gen 2 Type-C header

  • 1 × USB 3.2 Gen 1 header

  • 2 × USB 2.0 headers

  • 1 × Serial port header

  • 1 × Q-Flash Plus button

  • 1 × Reset jumper

  • 1 × Clear CMOS jumper

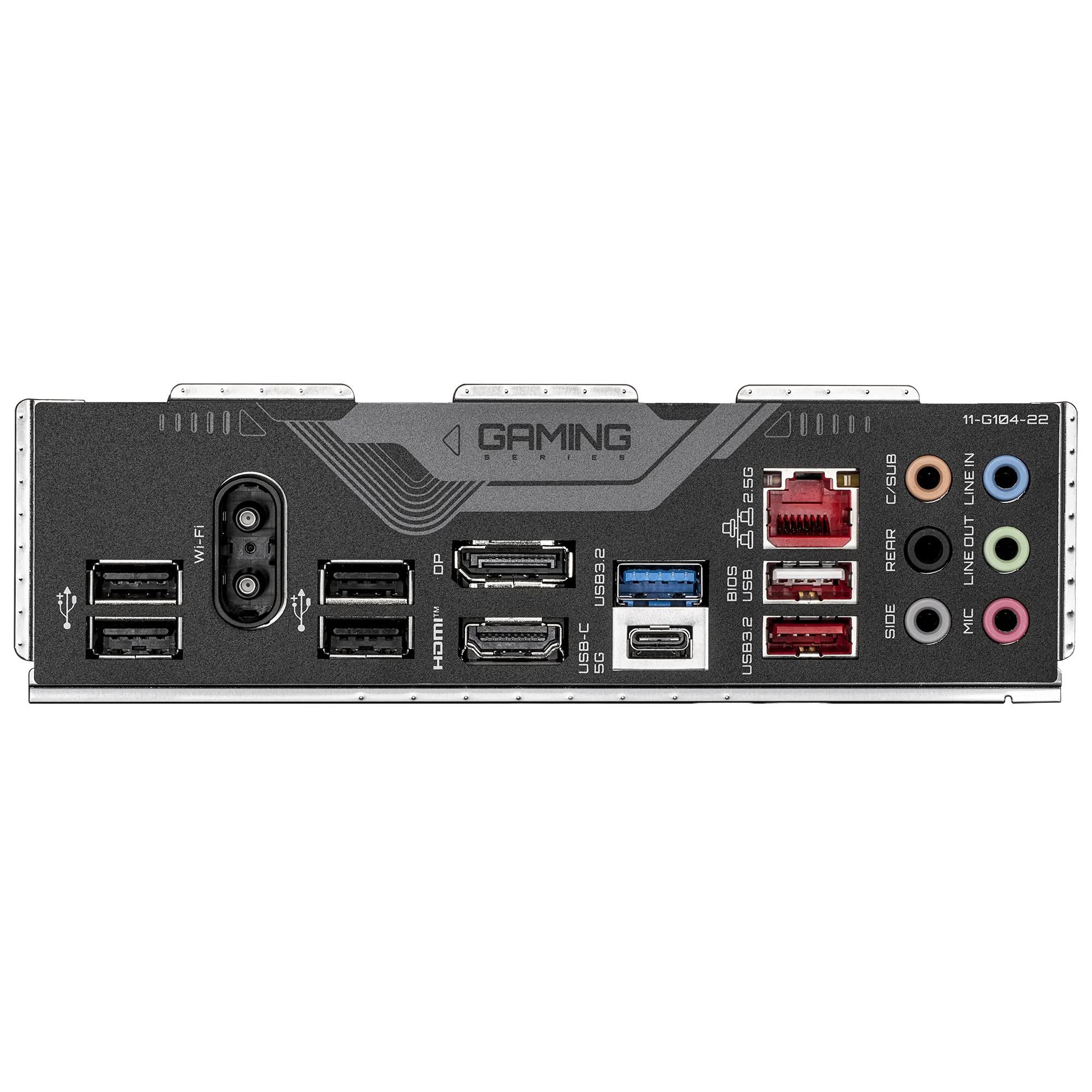

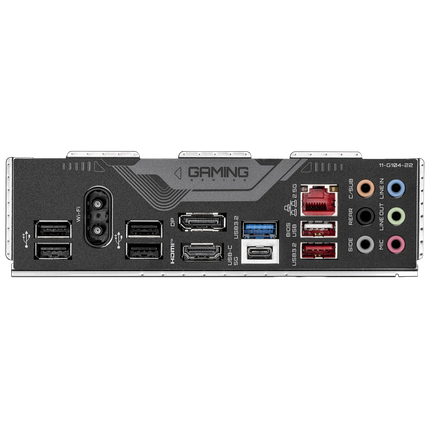

Back Panel I/O

  • 1 × USB 3.2 Gen 2 Type-A (Red)

  • 1 × USB 3.2 Gen 1 Type-C

  • 1 × USB 3.2 Gen 1 Type-A

  • 5 × USB 2.0/1.1

  • 2 × Wi-Fi Antenna Connectors

  • 1 × DisplayPort

  • 1 × HDMI

  • 1 × RJ-45 LAN Port

  • 6 × Audio Jacks

I/O Controller

  • iTE® Controller Chip

Monitoring & Control

  • Voltage/Temperature/Fan/Flow rate monitoring

  • Fan fail warning

  • Smart fan/pump speed control

  • Control support may vary by device

BIOS

  • 1 × 256 Mbit Flash

  • AMI UEFI BIOS

  • Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Unique Features

  • GIGABYTE Control Center (GCC)

  • Q-Flash & Q-Flash Plus

  • Smart Backup

Bundled Software

  • Norton® Internet Security (OEM)

Operating System Support

  • Windows 11 64-bit

  • Windows 10 64-bit

Form Factor

  • ATX (30.5 cm × 24.4 cm)

available In Iraq

Product form

CPU Support Socket: LGA1700 Supports: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors L3 cache varies... Read more

Free pickup in our shop(s)

SKU: B760-G-X-WF6E-GEN5

300,000 IQD 275,000 IQD Incl. VAT

    • 1 Year Warranty

    Description

    CPU Support

    • Socket: LGA1700

    • Supports:

      • 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors

    • L3 cache varies by CPU

    • Refer to GIGABYTE’s website for full CPU compatibility

    Chipset

    • Intel® B760 Express Chipset

    Memory

    • 4 × DDR5 DIMM slots (Dual Channel)

    • Up to 256 GB system memory (64 GB per DIMM)

    • Supported Speeds:

      • 14th/13th Gen Core™ i9/i7: DDR5 5600/5200/4800/4400 MT/s

      • 13th Gen Core™ i5/i3 & 12th Gen Core™/Pentium®/Celeron®: DDR5 4800/4400 MT/s

    • Supports:

      • ECC Un-buffered DIMMs (non-ECC mode)

      • Non-ECC Un-buffered DIMMs

      • Intel XMP Memory Modules

    • Memory type/speed may vary by CPU and configuration

    Graphics (Integrated, CPU-dependent)

    • DisplayPort 1.2: Max resolution 4096×2304 @ 60Hz (HDCP 2.3)

    • HDMI 2.1: Max resolution 4096×2160 @ 60Hz (HDCP 2.3, native TMDS)

    • Graphics availability and performance depend on the processor

    Audio

    • Realtek® Audio CODEC

    • High Definition Audio, 2/4/5.1/7.1-channel

    • S/PDIF Out support

    • Audio jack function customizable via software

    LAN & Wireless

    • LAN: Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)

    • Wi-Fi: Intel® Wi-Fi 6E AX210

      • Bands: 2.4/5/6 GHz

      • Bluetooth® 5.3

      • 11ax 160MHz wireless support

      • Actual data rate may vary

    Expansion Slots

    • CPU Linked:

      • 1 × PCIe x16 (PCIe 5.0 x16)

    • Chipset Linked:

      • 2 × PCIe x16 (PCIe 3.0 x1)

    Storage Interfaces

    • CPU:

      • 1 × M.2 (M2A_CPU) – PCIe 4.0 x4/x2 (22110/2280)

    • Chipset:

      • 2 × M.2 (M2P_SB, M2M_SB) – PCIe 4.0 x4/x2 (22110/2280)

      • 4 × SATA 6Gb/s

    • Supports RAID 0, 1, 5, 10 (SATA only)

    USB Ports

    • Back Panel:

      • 1 × USB 3.2 Gen 2 Type-A (Red)

      • 1 × USB 3.2 Gen 1 Type-C

      • 1 × USB 3.2 Gen 1 Type-A

      • 5 × USB 2.0/1.1

    • Internal Headers:

      • 1 × USB 3.2 Gen 2 Type-C

      • 1 × USB 3.2 Gen 1

      • 2 × USB 2.0 (4 ports)

    Internal I/O Connectors

    • 1 × 24-pin ATX main power

    • 1 × 8-pin ATX 12V

    • 1 × CPU fan header

    • 1 × CPU/water pump fan header

    • 3 × System fan headers

    • 1 × System/water pump fan header

    • 3 × Addressable RGB Gen2 headers

    • 1 × RGB LED header

    • 3 × M.2 Socket 3 connectors

    • 4 × SATA 6Gb/s connectors

    • 1 × Front panel header

    • 1 × Front panel audio header

    • 1 × S/PDIF Out header

    • 1 × TPM header

    • 1 × USB 3.2 Gen 2 Type-C header

    • 1 × USB 3.2 Gen 1 header

    • 2 × USB 2.0 headers

    • 1 × Serial port header

    • 1 × Q-Flash Plus button

    • 1 × Reset jumper

    • 1 × Clear CMOS jumper

    Back Panel I/O

    • 1 × USB 3.2 Gen 2 Type-A (Red)

    • 1 × USB 3.2 Gen 1 Type-C

    • 1 × USB 3.2 Gen 1 Type-A

    • 5 × USB 2.0/1.1

    • 2 × Wi-Fi Antenna Connectors

    • 1 × DisplayPort

    • 1 × HDMI

    • 1 × RJ-45 LAN Port

    • 6 × Audio Jacks

    I/O Controller

    • iTE® Controller Chip

    Monitoring & Control

    • Voltage/Temperature/Fan/Flow rate monitoring

    • Fan fail warning

    • Smart fan/pump speed control

    • Control support may vary by device

    BIOS

    • 1 × 256 Mbit Flash

    • AMI UEFI BIOS

    • Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

    Unique Features

    • GIGABYTE Control Center (GCC)

    • Q-Flash & Q-Flash Plus

    • Smart Backup

    Bundled Software

    • Norton® Internet Security (OEM)

    Operating System Support

    • Windows 11 64-bit

    • Windows 10 64-bit

    Form Factor

    • ATX (30.5 cm × 24.4 cm)

    available In Iraq
