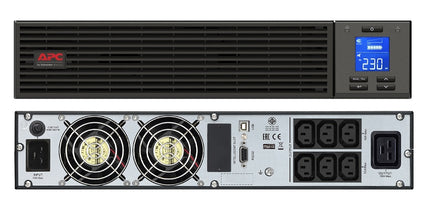

APC Easy UPS On-Line SRV 3000VA RM 230V

Description

Output

Output power capacity
2.4kWatts / 3.0kVA
Max Configurable Power (Watts)
2.4kWatts / 3.0kVA
Nominal Output Voltage
230V
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(6) IEC 320 C13 (Battery Backup)
(1) IEC 320 C19 (Battery Backup)

Input

Nominal Input Voltage
230V
Input frequency
40 - 70 Hz
Input Connections
IEC-320 C14
Input voltage range for main operations
160 - 280V
Number of Power Cords
1
Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
4hour(s)
Battery Volt-Amp-Hour Capacity
473
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph

Communications & Management

Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating
600Joules

Physical

Maximum Height
336MM, 33.6CM
Maximum Width
190MM, 19.0CM
Maximum Depth
425MM, 42.5CM
Net Weight
26.8KG
Shipping weight
29.0KG
Shipping Height
465MM, 46.5CM
Shipping Width
325MM, 32.5CM
Shipping Depth
565MM, 56.5CM

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (non-condensing) %
Operating Elevation
0-3000meters
Storage Temperature
-20 - 50 °C
Storage Relative Humidity
0 - 95 (non-condensing) %
Storage Elevation
0-14763.6meters

Conformance

Approvals
CE, IEC 62040-1-1, IEC 62040-1-2
Standard warranty
2 years repair or replace

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
Product form
