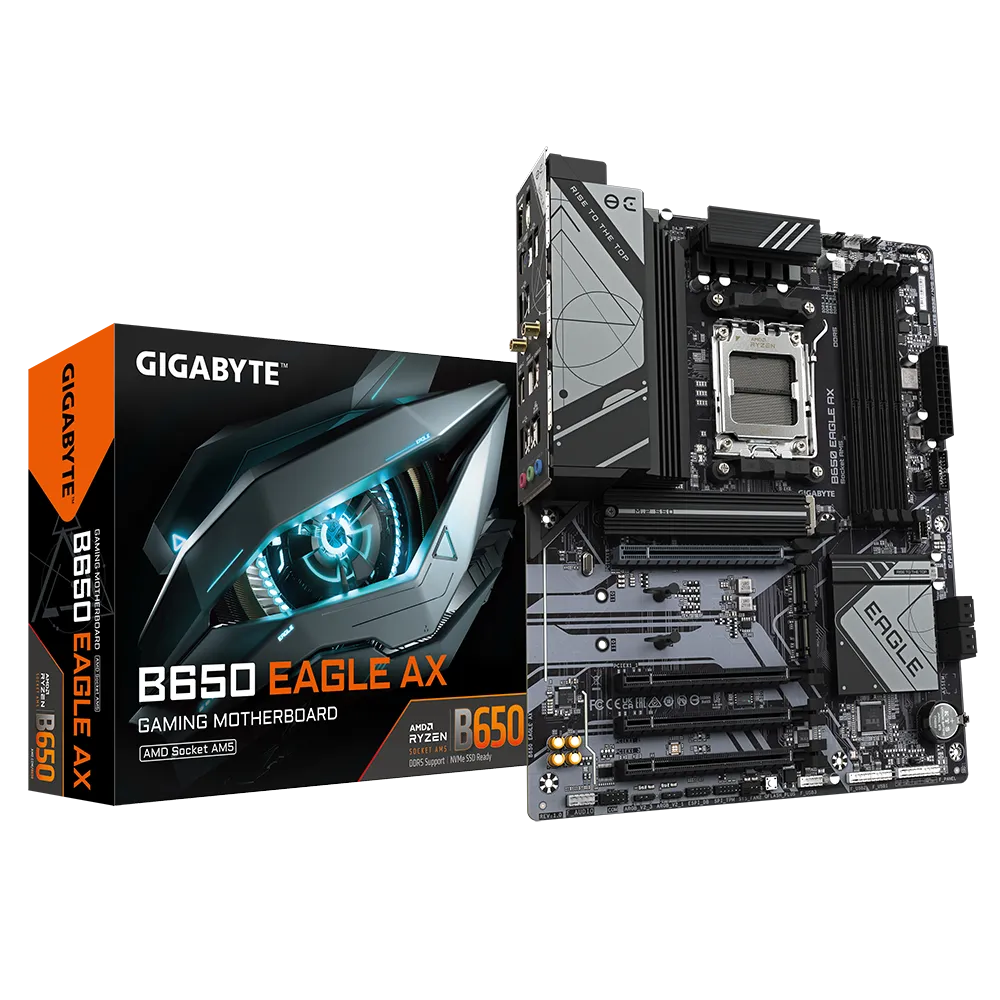

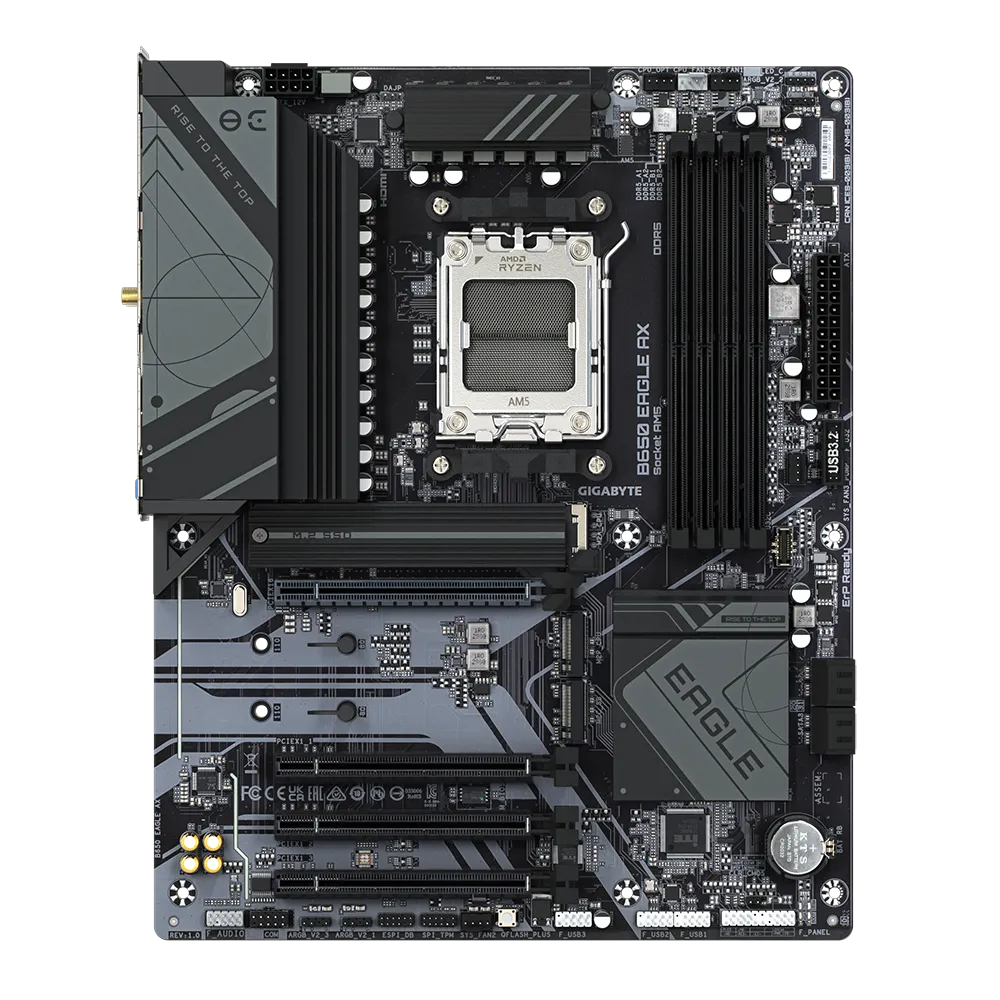

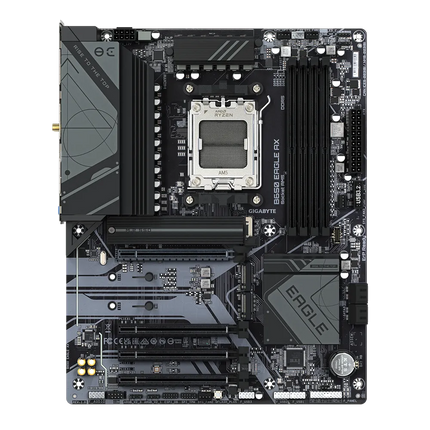

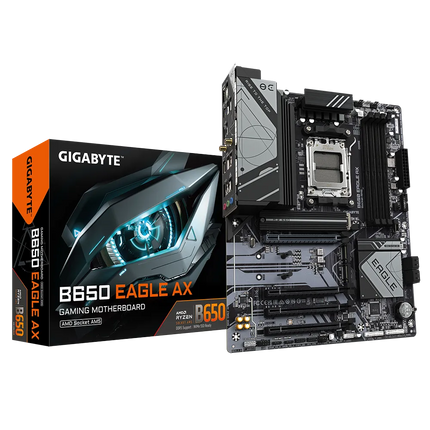

GIGABYTE B650 EAGLE AX AM5

Description

CPU Support

  • Socket: AMD AM5

  • Compatible with:

    • AMD Ryzen™ 7000 Series

    • AMD Ryzen™ 8000 Series

    • AMD Ryzen™ 9000 Series

  • Refer to GIGABYTE’s official website for the latest CPU compatibility list.

Chipset

  • AMD B650

Memory

  • 4 × DDR5 DIMM sockets (Dual Channel)

  • Up to 256 GB system memory (64 GB per DIMM)

  • Supported Speeds:
    DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s

  • ECC/Non-ECC un-buffered DIMMs (1Rx8/2Rx8/1Rx16)

  • AMD EXPO™ & Intel XMP supported

  • Actual support depends on CPU and configuration. Refer to GIGABYTE's Memory Support List.

Onboard Graphics

Available only with AMD CPUs featuring integrated Radeon™ Graphics

  • DisplayPort 1.4: Max resolution 3840×2160 @ 144Hz

  • HDMI 2.1: Max resolution 4096×2160 @ 60Hz

    • Supports HDCP 2.3 and native TMDS

Audio

  • Realtek® Audio CODEC

  • High Definition Audio, 2/4/5.1/7.1-channel

  • Configurable via software

LAN & Wireless

  • LAN: Realtek® GbE LAN (10/100/1000 Mbps)

  • Wi-Fi (varies by PCB revision):

    • Rev. 1.0: Realtek® Wi-Fi 6E RTL8852CE

    • Rev. 1.1: Intel® Wi-Fi 6E AX210

    • Dual Band: 2.4/5/6 GHz, BT 5.3, 160MHz support

Expansion Slots

  • 1 × PCIe x16 (CPU linked):

    • Ryzen 7000 / 9000: PCIe 4.0 x16

    • Ryzen 8000 (Phoenix 1): PCIe 4.0 x8

    • Ryzen 8000 (Phoenix 2): PCIe 4.0 x4

  • 2 × PCIe x1 (CPU linked): PCIe 3.0 x1

    • Disabled with Ryzen 8000 (Phoenix 2)

  • 1 × PCIe x1 (Chipset linked): PCIe 3.0 x1

Storage Interfaces

  • M.2 Slots:

    • M2A_CPU: PCIe 5.0 x4/x2 (up to 25110), from CPU

    • M2P_CPU: PCIe 4.0 x2 (up to 22110), from CPU

    • M2C_SB: PCIe 4.0 x4/x2 (up to 22110), from chipset

  • 4 × SATA 6Gb/s Ports

  • RAID 0/1/10 supported for NVMe and SATA

USB Ports

  • Back Panel (CPU):

    • 2 × USB 3.2 Gen 2 Type-A (Red)

    • 1 × USB 3.2 Gen 1 Type-C

    • 4 × USB 2.0

  • Internal (Chipset):

    • 2 × USB 3.2 Gen 1 via header

    • 1 × USB 3.2 Gen 1 Type-C via header

    • 2 × USB 2.0 (back)

    • 4 × USB 2.0 via headers

Internal Connectors

  • 1 × 24-pin ATX Main Power

  • 1 × 8-pin ATX 12V

  • 1 × CPU Fan Header

  • 1 × CPU/Water Pump Fan Header

  • 2 × System Fan Headers

  • 1 × System/Water Pump Fan Header

  • 3 × Addressable RGB Gen2 Headers

  • 1 × RGB LED Strip Header

  • 3 × M.2 Socket 3 Connectors

  • 4 × SATA 6Gb/s Ports

  • 1 × Front Panel Header

  • 1 × Front Audio Header

  • 1 × USB 3.2 Gen 1 Header

  • 1 × USB Type-C Header (Gen 1)

  • 3 × USB 2.0 Headers

  • 1 × TPM Header

  • 1 × Serial Port Header

  • 1 × Q-Flash Plus Button

  • 1 × Clear CMOS Jumper

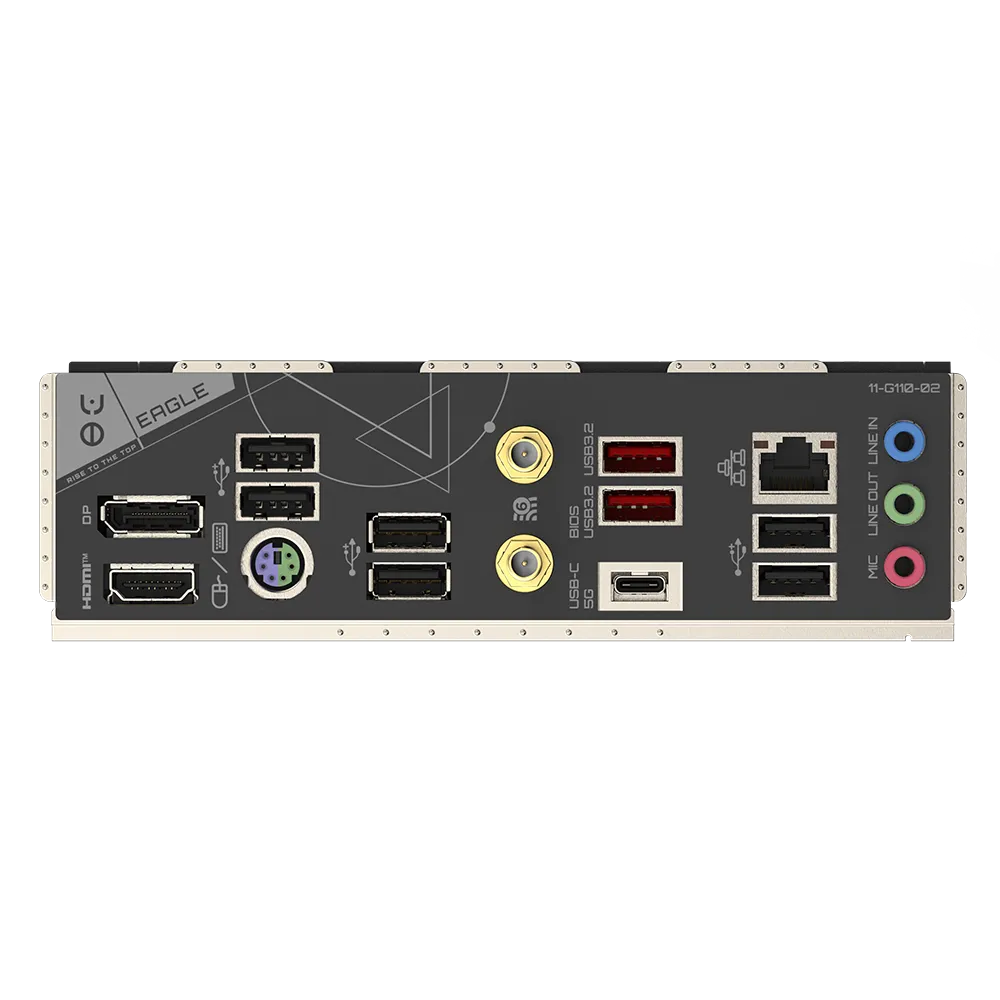

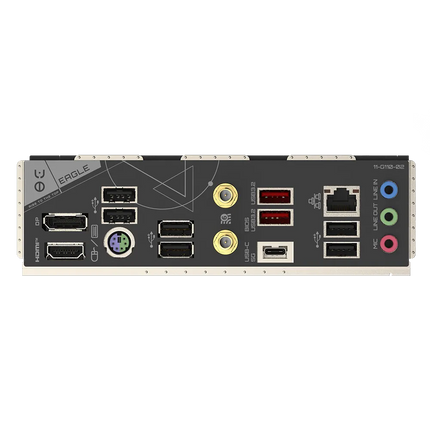

Back Panel I/O

  • 1 × DisplayPort

  • 1 × HDMI

  • 1 × PS/2 Mouse/Keyboard Combo

  • 2 × SMA Antenna Connectors

  • 1 × USB 3.2 Gen 1 Type-C

  • 2 × USB 3.2 Gen 2 Type-A (Red)

  • 6 × USB 2.0

  • 1 × RJ-45 LAN Port

  • 3 × Audio Jacks

I/O Controller

  • iTE® I/O Controller Chip

Monitoring

  • Voltage, Temperature, Fan Speed & Flow Rate Detection

  • Fan Fail Warning

  • Smart Fan Speed Control

  • Pump/fan control depends on device compatibility

BIOS

  • 1 × 256 Mbit Flash

  • Licensed AMI UEFI BIOS

  • PnP 1.0a, DMI 2.7, SM BIOS 2.7, ACPI 5.0

Unique Features

  • GIGABYTE Control Center (GCC)

  • Q-Flash & Q-Flash Plus

Bundled Software

  • Norton® Internet Security (OEM)

  • LAN Bandwidth Management Tool

Operating System

  • Windows 11 64-bit

  • Windows 10 64-bit

Form Factor

  • ATX (30.5cm × 24.4cm)

available In Iraq

Product form

CPU Support Socket: AMD AM5 Compatible with: AMD Ryzen™ 7000 Series AMD Ryzen™ 8000 Series AMD Ryzen™ 9000 Series Refer... Read more

Free pickup in our shop(s)

270,000 IQD 250,000 IQD
