| Socket |
AMD AM5 |
| Chipset |
AMD B650 |
| CPU Support |
Ryzen 7000 / 8000 / 9000 Series (Phoenix, Raphael, etc.) |
| Memory Support |
4 x DDR5 DIMMs up to 256 GB
Speeds up to 8000 MHz (OC) |
| Graphics Outputs |
1 x HDMI 2.1 (4K@60Hz)
1 x DisplayPort 1.4 (144Hz) |
| PCIe Expansion |
1 x PCIe 4.0 x16 (GPU)
1 x PCIe 4.0 x4 |
| M.2 Storage |
2 x M.2 slots:
- 1 x PCIe 5.0 x4 (25110)
- 1 x PCIe 4.0 x4 (22110) |
| SATA Ports |
4 x SATA 6Gb/s |
| RAID Support |
NVMe & SATA: RAID 0 / 1 / 10 |
| LAN |
Realtek 2.5GbE |
| Wi-Fi & Bluetooth |
Wi-Fi 6E (Realtek or Intel, PCB dependent)
Bluetooth 5.3 |
| Audio |
Realtek 7.1 HD Audio + Optical S/PDIF Out |

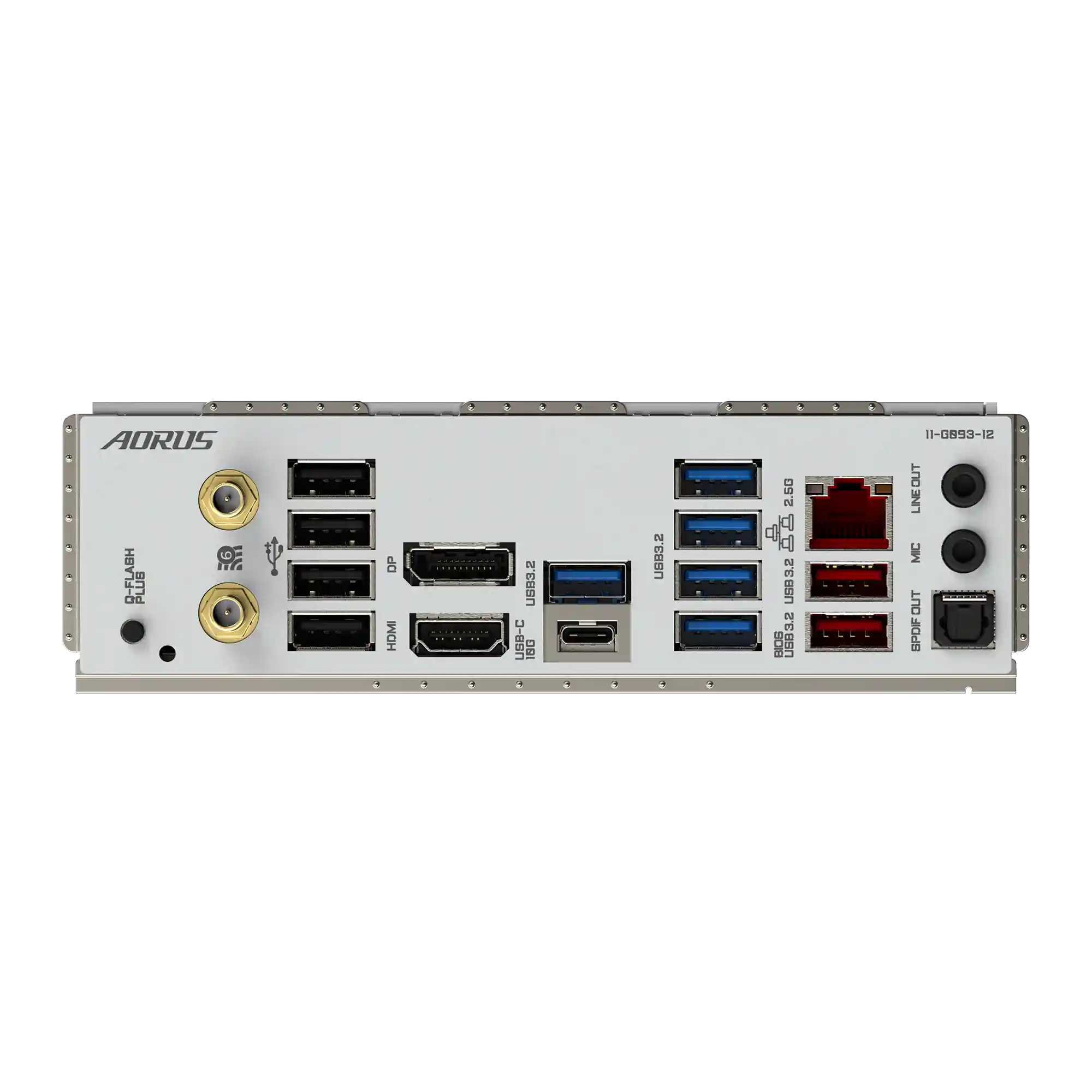

| USB Rear I/O |
1 x USB-C 3.2 Gen2
2 x USB-A 3.2 Gen2 (Red)
5 x USB 3.2 Gen1
4 x USB 2.0 |
| USB Internal |
1 x USB-C 3.2 Gen2x2 Header
1 x USB 3.2 Gen1 Header
2 x USB 2.0 Headers |
| RGB & Lighting |
2 x ARGB Gen2 headers
2 x RGB 12V headers
1 x CPU cooler LED header |
| Cooling Headers |
1 x CPU Fan
1 x CPU Pump
3 x System Fan
1 x System Pump |
| Other Features |
Q-Flash Plus, Clear CMOS, Serial Header, TPM, THB_U4 Add-in Card Support |
