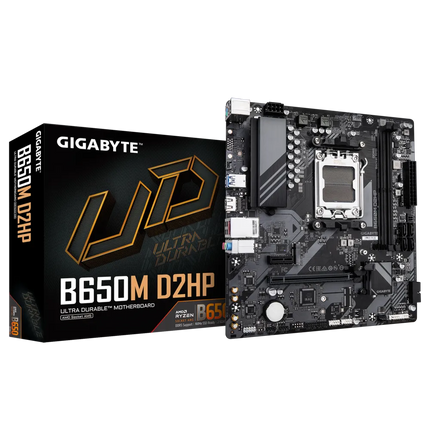

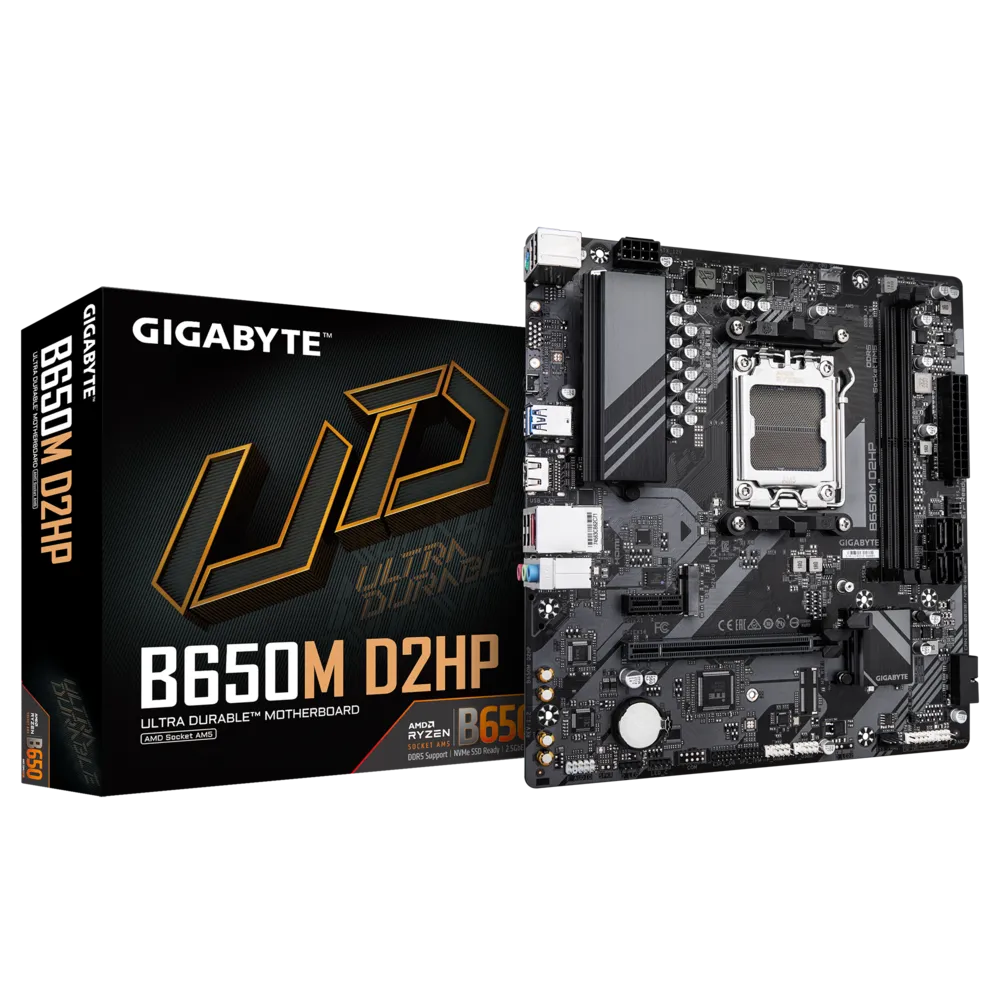

Gigabyte B650M D2HP – AM5 DDR5 Micro-ATX Motherboard for Ryzen 7000/8000/9000 Series
Unleash next-gen performance with the Gigabyte B650M D2HP, a Micro-ATX AM5 motherboard designed for the latest AMD Ryzen™ 7000, 8000, and 9000 series processors. Featuring DDR5 memory support, PCIe 4.0 compatibility, and 2.5Gb LAN, this board is perfect for gamers, builders, and professionals seeking cutting-edge performance in Iraq.
Key Specifications:
| Feature |
Details |
| CPU Socket |
AMD AM5 |
| Chipset |
AMD B650 |
| Supported CPUs |
Ryzen™ 7000 / 8000 / 9000 Series |
| Memory Support |
2 x DDR5 DIMMs (up to 128GB), up to 7200MHz (OC), Dual Channel |
| Graphics Output |
1 x HDMI 2.1 (4K @ 60Hz, HDCP 2.3) |
| Expansion Slots |
1 x PCIe 4.0 x16 (CPU)
1 x PCIe 3.0 x1 (Chipset) |
| Storage |
1 x M.2 (PCIe 4.0 x4/x2)
4 x SATA 6Gb/s |
| RAID Support |
RAID 0/1/10 for M.2 NVMe & SATA |
| LAN |
Realtek® 2.5GbE LAN |
| Audio |
Realtek® High Definition 7.1 Channel Audio |
| USB Ports |
Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0
Internal: 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Cooling Headers |
1 x CPU Fan, 2 x System Fan |
| RGB Support |
1 x Addressable Gen 2 Header
1 x RGB Header |
| Form Factor |
Micro-ATX (24.0cm x 22.5cm) |
| OS Support |
Windows 11 / 10 64-bit |
Special Features:
-
Supports both AMD EXPO™ and Intel XMP memory profiles
-
Q-Flash Plus for BIOS updates without CPU or RAM
-
HDMI 2.1 output for high-resolution displays
-
Advanced fan control and monitoring
-
GIGABYTE Control Center (GCC) compatible
-
High-performance 2.5Gb Ethernet for faster networking
-
TPM header and Clear CMOS jumper for added security and maintenance
Now available at Alfarah Store – your trusted source for original Gigabyte motherboards and PC components across Iraq.
