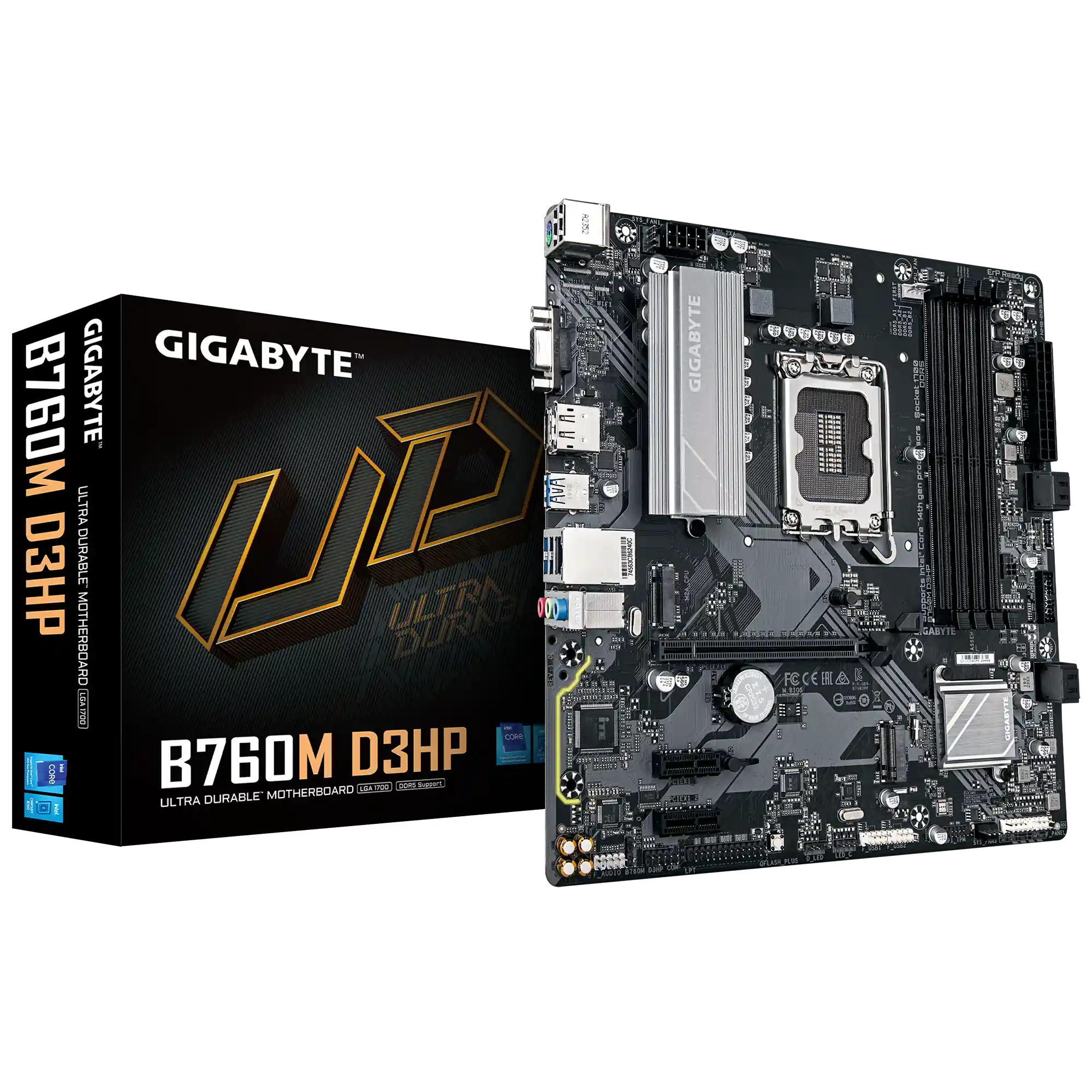

GIGABYTE B760M D3HP Motherboard – LGA1700, DDR5, PCIe 4.0, Dual M.2 | Buy in Iraq | Alfarah Store

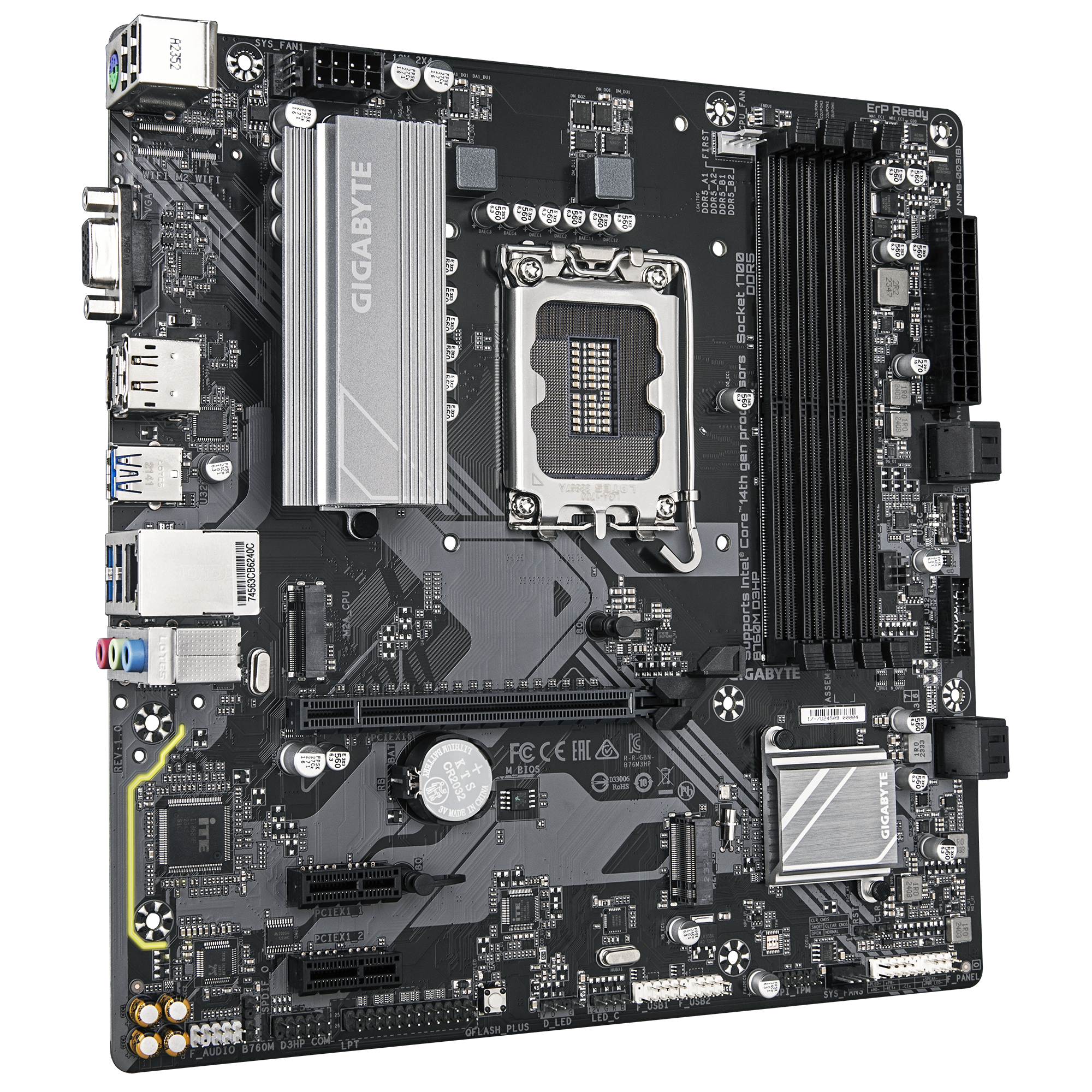

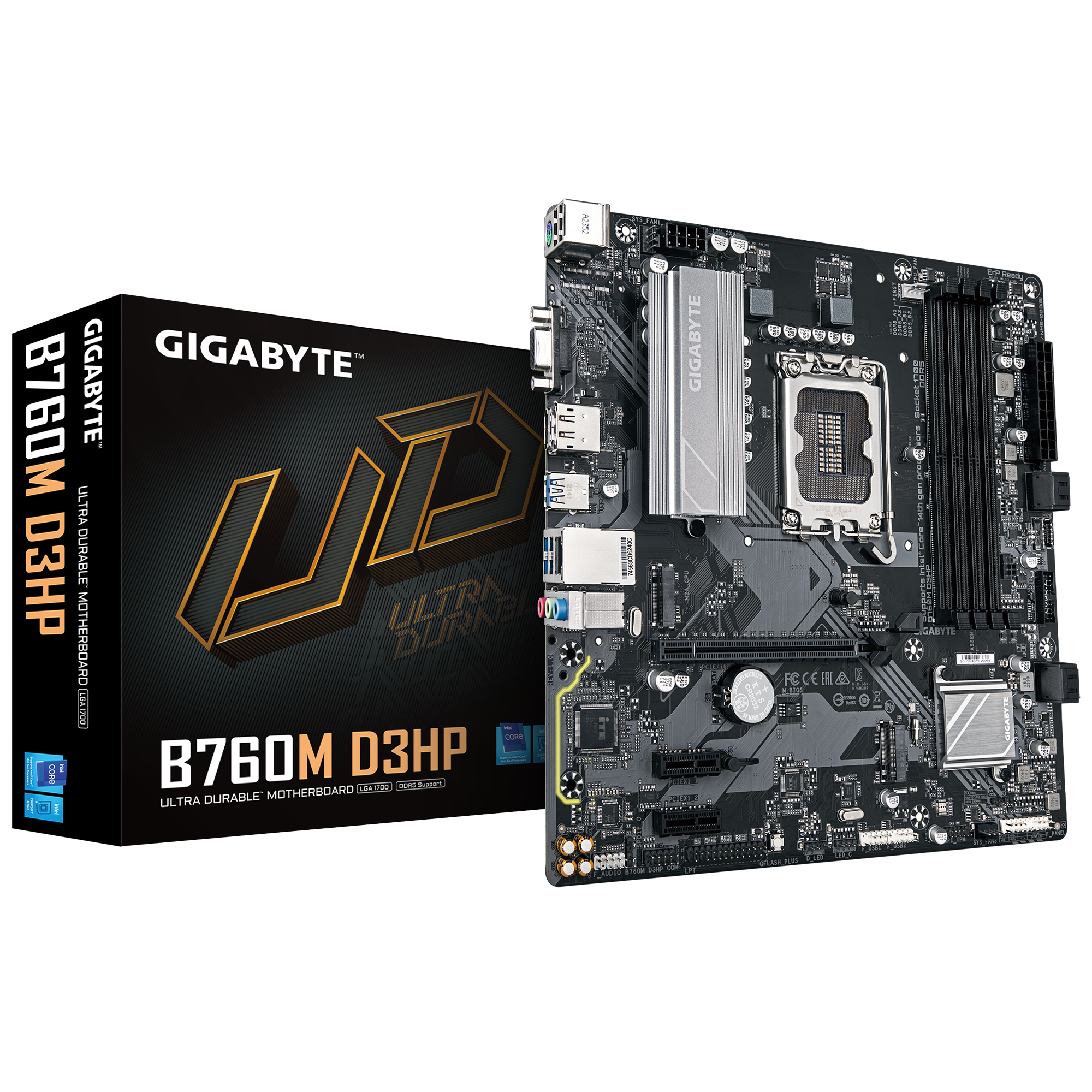

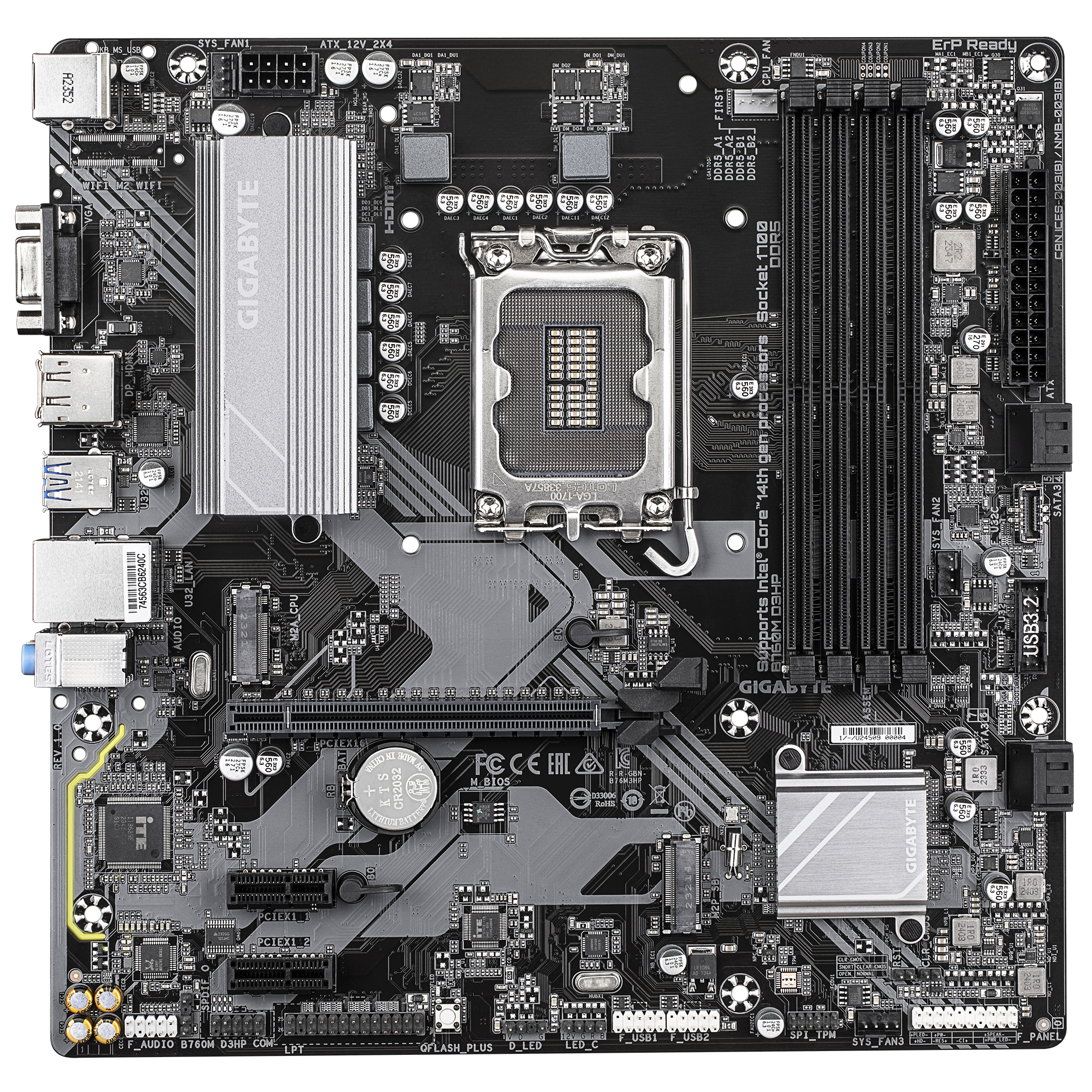

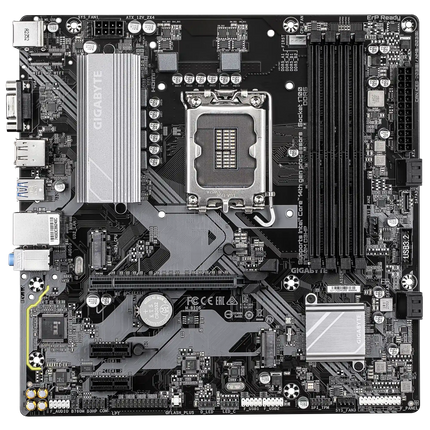

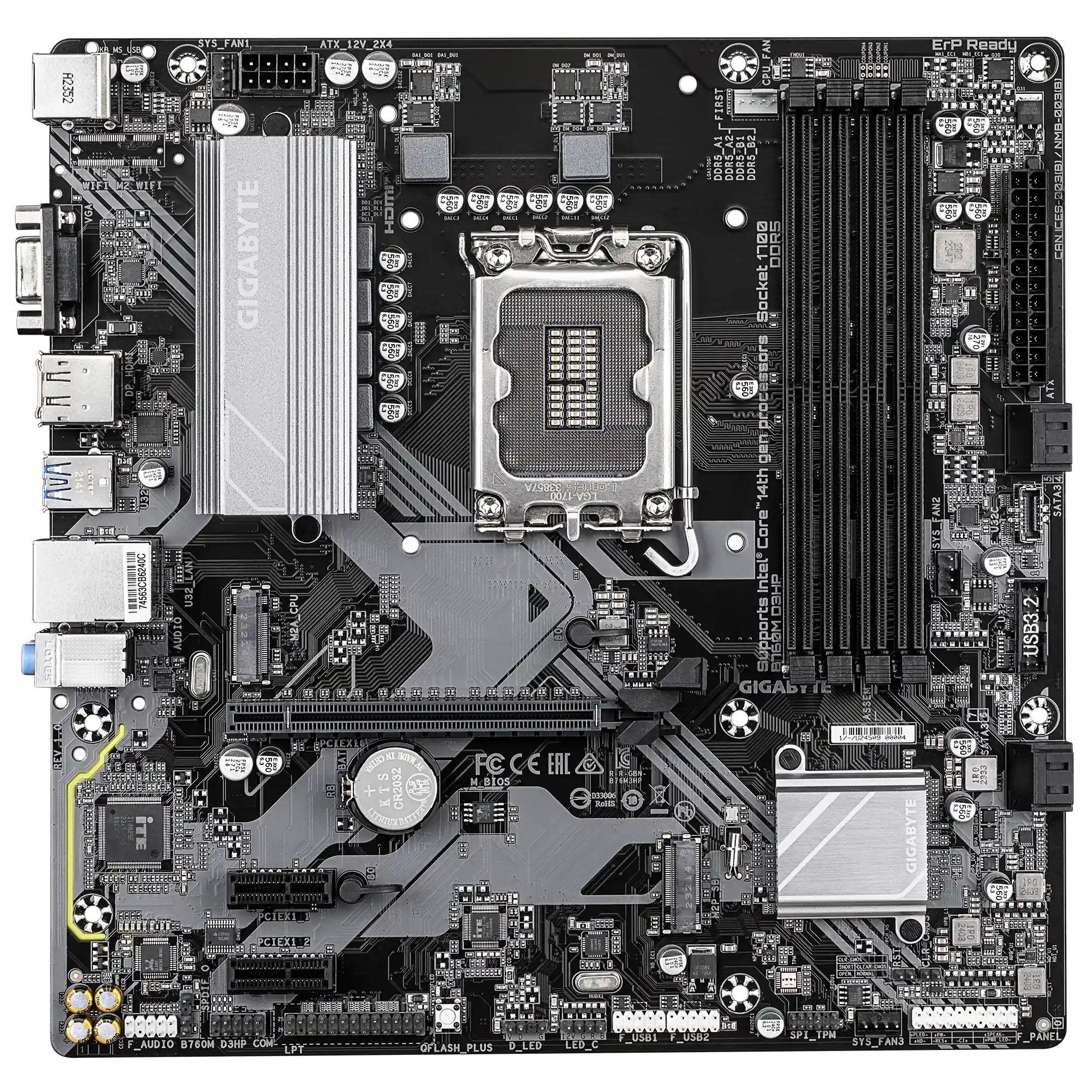

Available now in Iraq at Alfarah Store. This GIGABYTE B760M D3HP motherboard is built for gamers, PC builders, and productivity users, delivering support for Intel Core 14th/13th/12th Gen processors on the Intel B760 chipset in a compact Micro-ATX form factor. With a 4+1+1 Phases Hybrid Digital VRM Solution, Dual Channel DDR5 memory across 4 DIMMs with support up to DDR5-7600 (OC), and dual PCIe 4.0 x4 M.2 connectors with PCIe EZ-Latch, this board offers strong next-gen performance and easy upgradability. GIGABYTE's exclusive DDR5 circuit design with shielded memory routing improves overclocking stability, while 8-channel HD Audio and Q-Flash Plus (BIOS update without CPU/RAM/GPU installed) round out a reliable, well-equipped build for Baghdad, Erbil, Basra, and across Iraq.
Specifications:
| Feature |
Details |
| Brand / Model |
GIGABYTE B760M D3HP |
| Socket |
LGA 1700 |
| Chipset |
Intel B760 |
| CPU Support |
Intel Core 14th/13th/12th Gen |
| Form Factor |
Micro-ATX |
| Memory |
4x DDR5 DIMM slots, dual channel, up to 192GB, up to DDR5-7600 (OC) |
| Expansion Slots |
1x PCIe 4.0 x16 (EZ-Latch), 2x PCIe x1 |
| Storage |
2x PCIe 4.0 x4 M.2 connectors (2280), 4x SATA 6Gb/s |
| RAID Support |
Yes |
| Networking |
GbE LAN |
| Audio |
Realtek Audio CODEC, 8-channel HD Audio, Audio Noise Guard, S/PDIF Out |
| USB |
Front USB-C 5Gb/s, USB 3.2 Gen 1, USB 3.2 Gen 2, USB 2.0 |

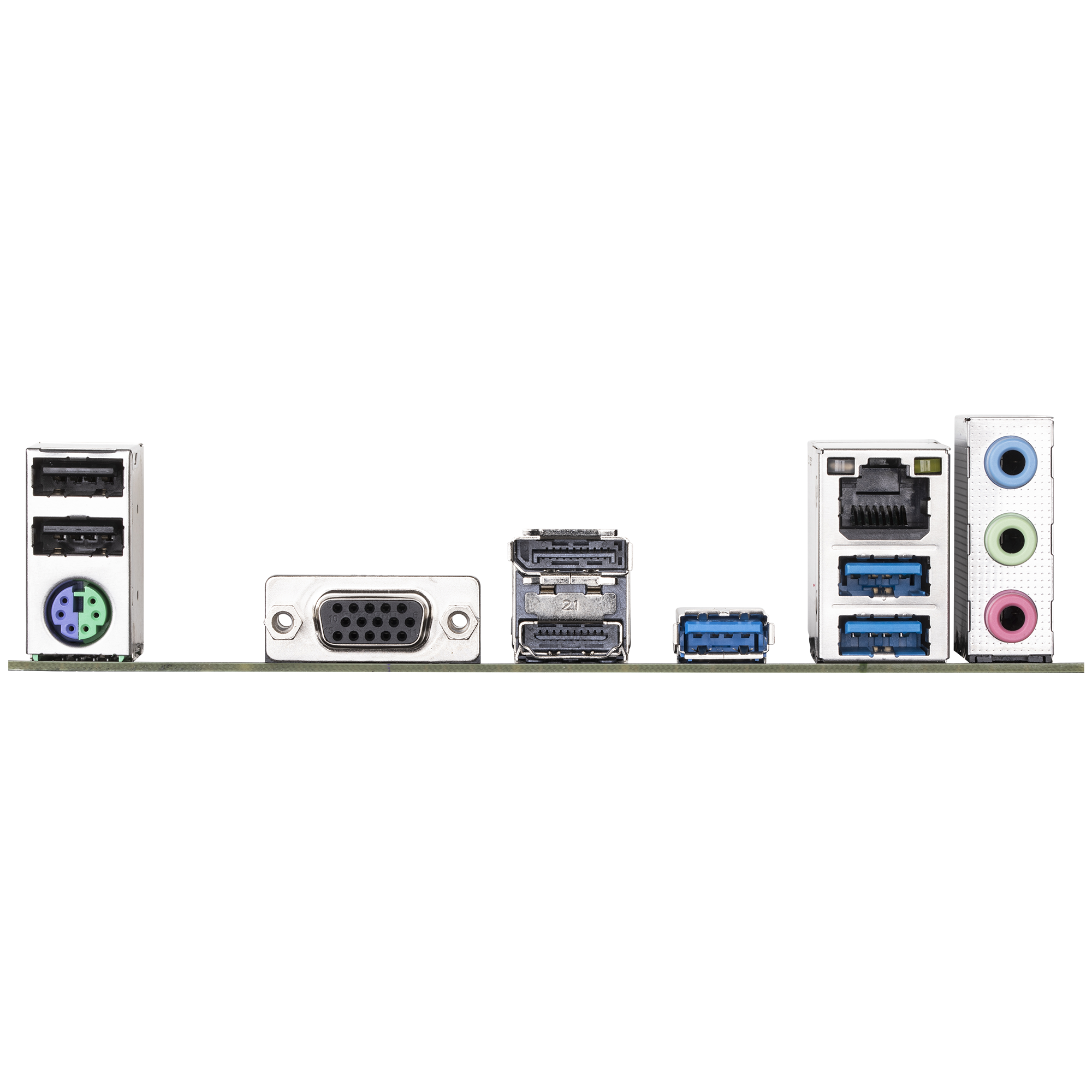

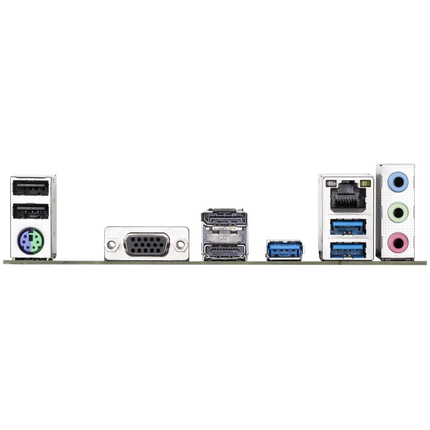

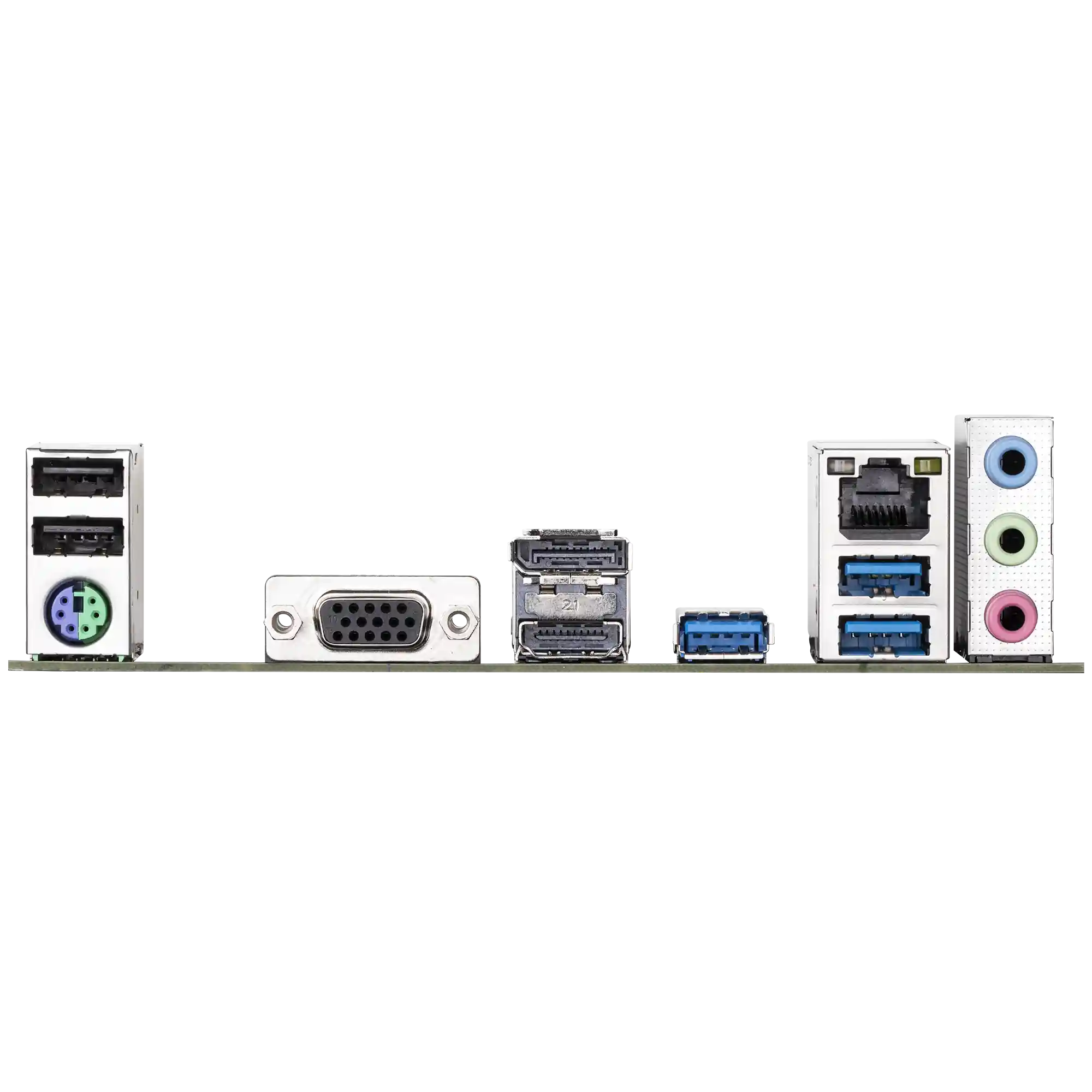

| Video Outputs |
1x HDMI (4096x2160@60Hz), 1x DisplayPort (4096x2304@60Hz), 1x D-Sub |
| Fan Headers |
Multiple, Smart Fan 6 with FAN STOP |
| VRM |
4+1+1 Phases Hybrid Digital VRM |
| Power Connector |
8-pin solid pin CPU power |
| Special Features |
Q-Flash Plus, PCIe EZ-Latch, GIGABYTE Exclusive DDR5 Circuit Design |
| OS Support |
Windows 11/10 64-bit |
Warranty: 1 Year available at Alfarah Store – Iraq
