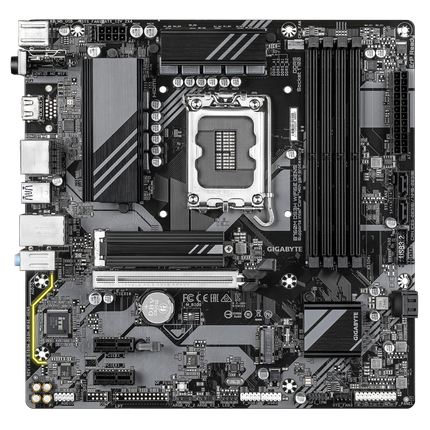

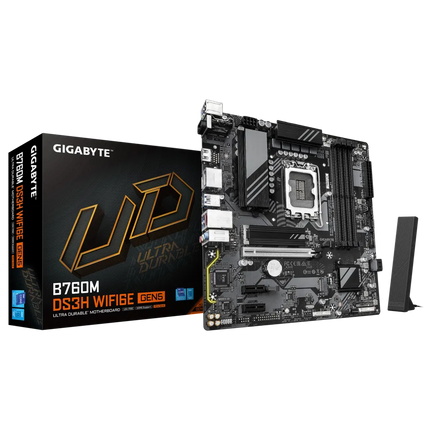

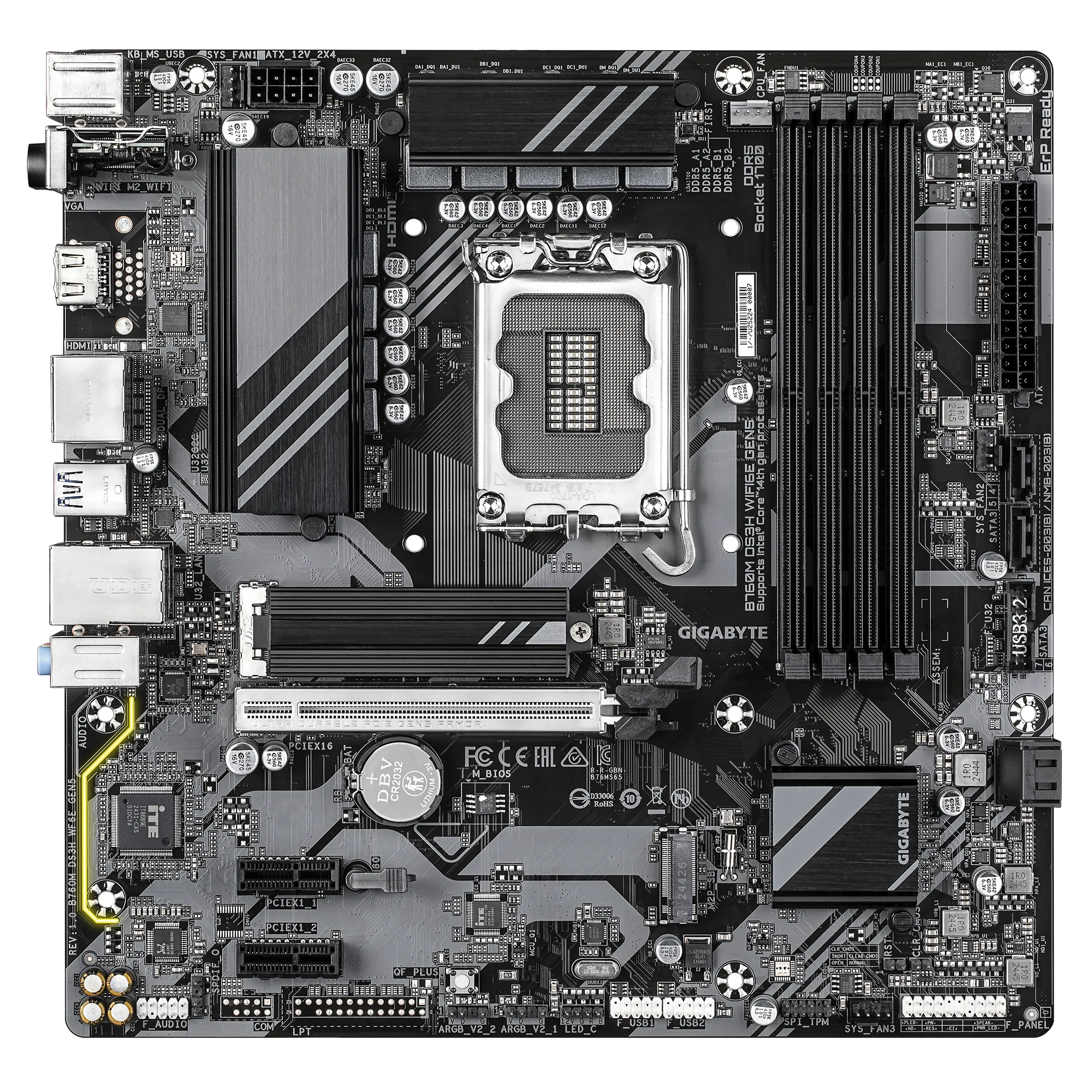

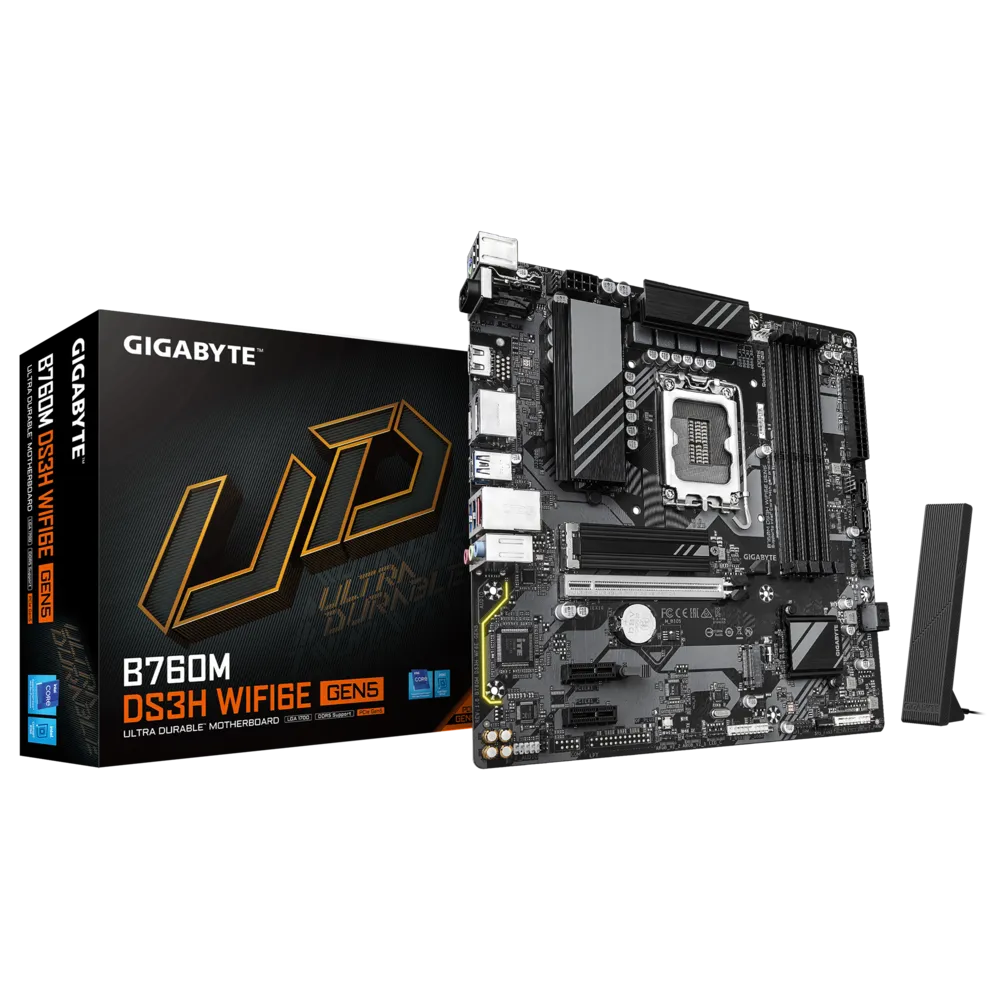

GIGABYTE B760M DS3H DDR5 WIFI6E GEN5

Description

CPU Support

  • Socket: LGA1700

  • Supports:

    • 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors

  • L3 cache varies by CPU

  • Refer to GIGABYTE’s website for the latest compatibility list

Chipset

  • Intel® B760 Express Chipset

Memory

  • 4 × DDR5 DIMM slots (Dual Channel)

  • Max Capacity: 256 GB (64 GB per DIMM)

  • Supported Speeds:

    • 14th/13th Gen Core™ i9/i7: DDR5 5600 / 5200 / 4800 / 4400 MT/s

    • 13th Gen Core™ i5/i3 & 12th Gen Core™/Pentium®/Celeron®: DDR5 4800 / 4400 MT/s

  • Supports:

    • ECC Un-buffered DIMMs (operate in non-ECC mode)

    • Non-ECC Un-buffered DIMMs

    • Intel® XMP Memory Modules

  • Actual support may vary depending on CPU and memory configuration

Graphics (Integrated)

Available only with CPUs featuring Intel® UHD Graphics

  • HDMI 2.1: Up to 4096 × 2160 @ 60Hz, HDCP 2.3

  • 2 × DisplayPort 1.2: Up to 4096 × 2304 @ 60Hz, HDCP 2.3

  • Supports up to 3 simultaneous displays

  • Graphics capabilities depend on CPU

Audio

  • Realtek® Audio CODEC

  • High Definition Audio (2/4/5.1/7.1-channel)

  • S/PDIF Out support

  • Audio jack functionality configurable via software

Networking

  • LAN: Realtek® 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)

  • Wireless: Intel® Wi-Fi 6E AX210

    • Bands: 2.4 / 5 / 6 GHz

    • Bluetooth® 5.3

    • 11ax 160MHz support

    • Actual speeds may vary by environment

Expansion Slots

  • CPU Linked:

    • 1 × PCIe 5.0 x16

  • Chipset Linked:

    • 2 × PCIe 3.0 x1

Storage

  • M.2 Slots:

    • M2A_CPU: PCIe 4.0 x4/x2 (Type 2280)

    • M2P_SB: PCIe 4.0 x4/x2 (Type 2280)

  • SATA Ports:

    • 4 × SATA 6Gb/s

  • RAID 0, 1, 5, 10 supported (SATA only)

USB Ports

  • Rear I/O:

    • 1 × USB 3.2 Gen 2 Type-C

    • 3 × USB 3.2 Gen 1

    • 2 × USB 2.0/1.1

  • Internal Headers:

    • 1 × USB 3.2 Gen 1

    • 2 × USB 2.0 (4 ports)

Internal Connectors

  • 1 × 24-pin ATX main power

  • 1 × 8-pin ATX 12V power

  • 1 × CPU fan header

  • 3 × System fan headers

  • 2 × Addressable RGB Gen2 headers

  • 1 × RGB LED header

  • 2 × M.2 Socket 3 connectors

  • 4 × SATA 6Gb/s ports

  • 1 × Front panel header

  • 1 × Front panel audio header

  • 1 × USB 3.2 Gen 1 header

  • 2 × USB 2.0 headers

  • 1 × TPM header (GC-TPM2.0 SPI compatible)

  • 1 × S/PDIF Out header

  • 1 × Q-Flash Plus button

  • 1 × Reset jumper

  • 1 × Clear CMOS jumper

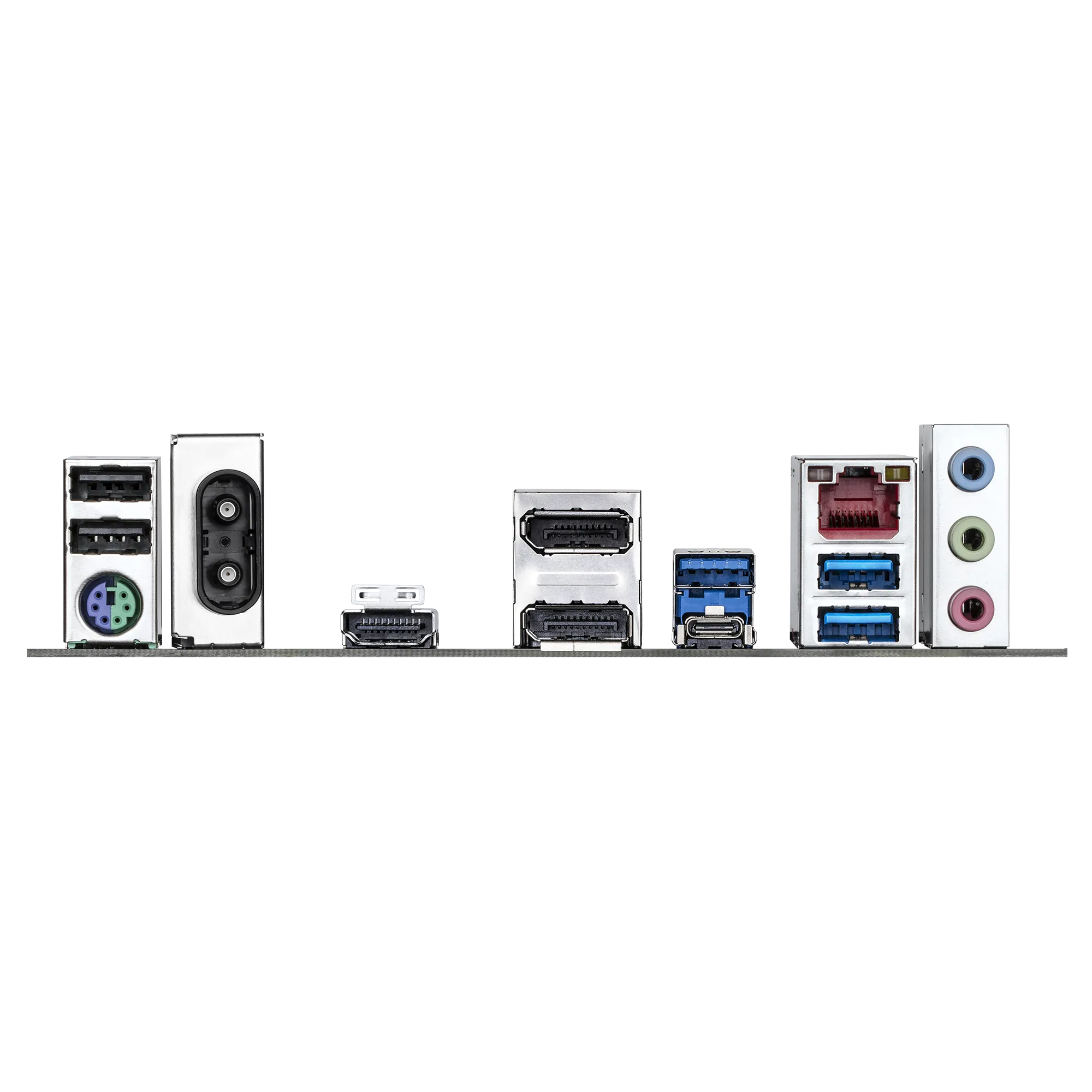

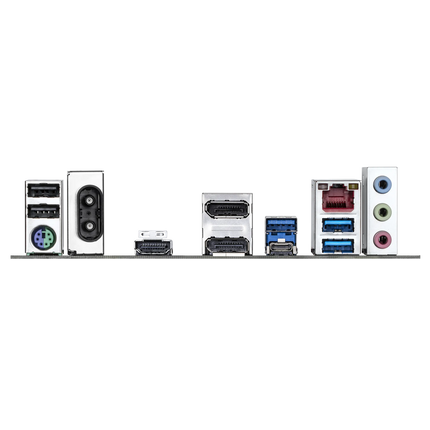

Back Panel I/O

  • 2 × USB 2.0/1.1

  • 1 × PS/2 keyboard/mouse combo port

  • 2 × Wi-Fi antenna connectors

  • 1 × HDMI port

  • 2 × DisplayPort

  • 3 × USB 3.2 Gen 1

  • 1 × USB 3.2 Gen 2 Type-C

  • 1 × RJ-45 LAN port

  • 3 × Audio jacks

I/O Controller

  • iTE® I/O Controller Chip

Hardware Monitoring

  • Voltage, temperature, and fan speed monitoring

  • Water cooling flow rate detection

  • Fan fail warning

  • Smart fan speed control

  • Fan/pump support depends on installed hardware

BIOS

  • 1 × 128 Mbit AMI UEFI BIOS

  • PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Unique Features

  • GIGABYTE Control Center (GCC)

  • Q-Flash & Q-Flash Plus

  • Smart Backup support

Bundled Software

  • Norton® Internet Security (OEM)

Operating System Support

  • Windows 11 64-bit

  • Windows 10 64-bit

Form Factor

  • Micro ATX (24.4 cm × 24.4 cm)

available In Iraq

Product form

CPU Support Socket: LGA1700 Supports: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors L3 cache varies... Read more

Free pickup in our shop(s)

SKU: B760M-DS3H-WF6E-GEN5

240,000 IQD 225,000 IQD Incl. VAT

    • 1 Year Warranty
