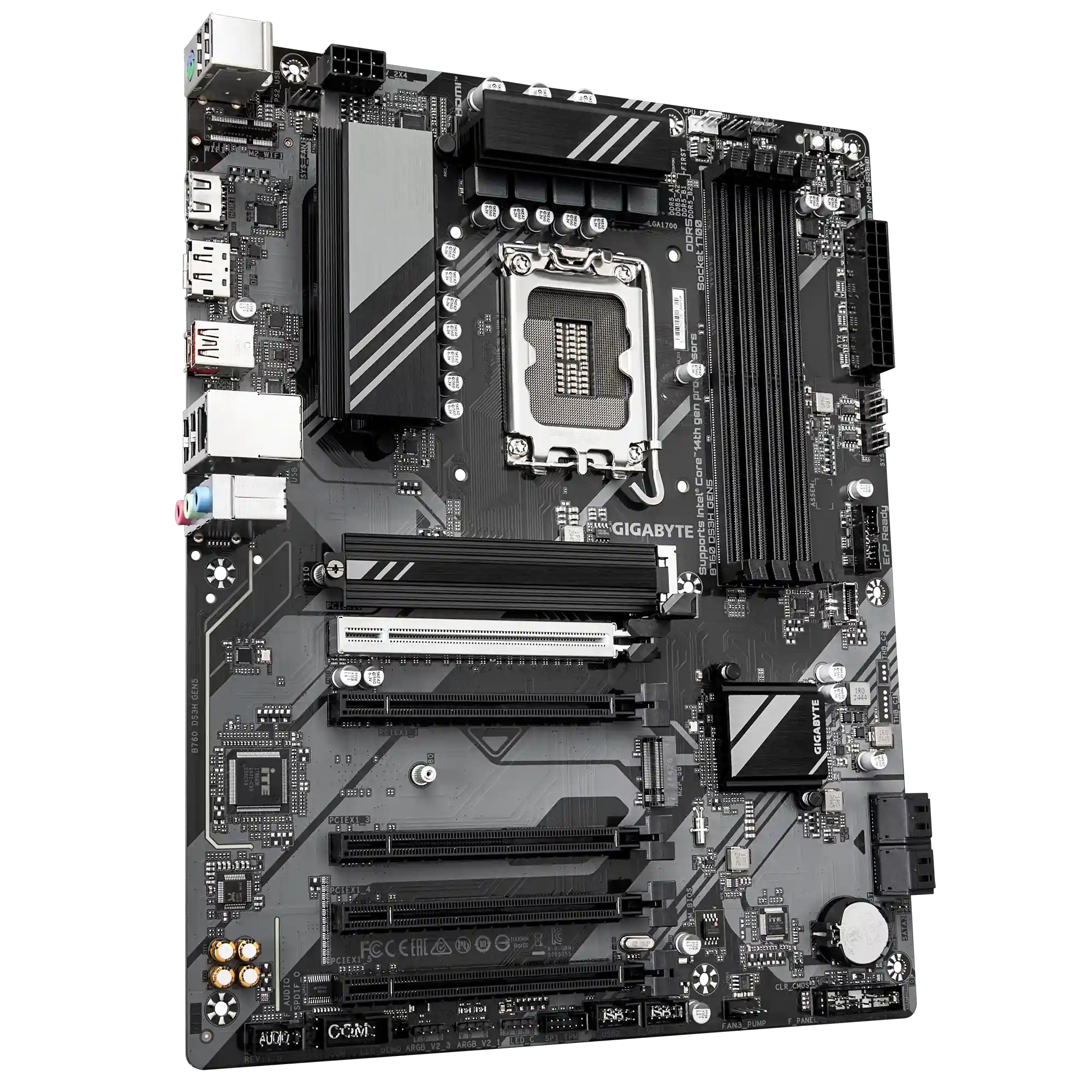

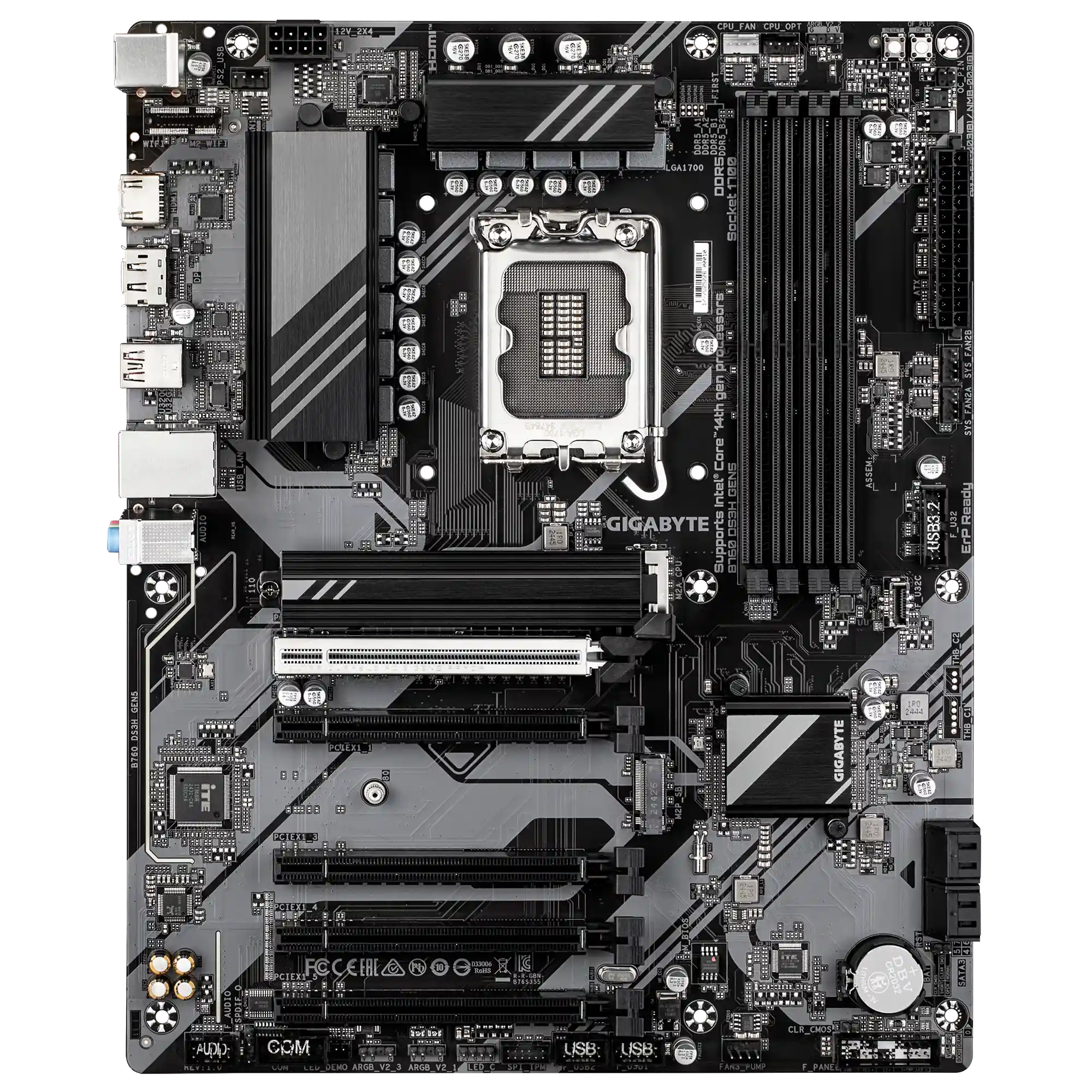

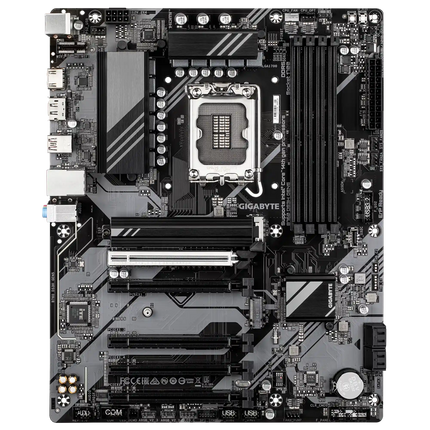

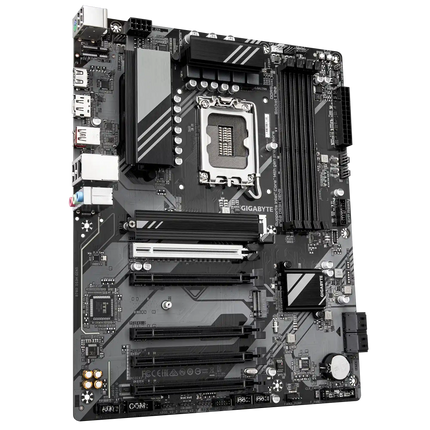

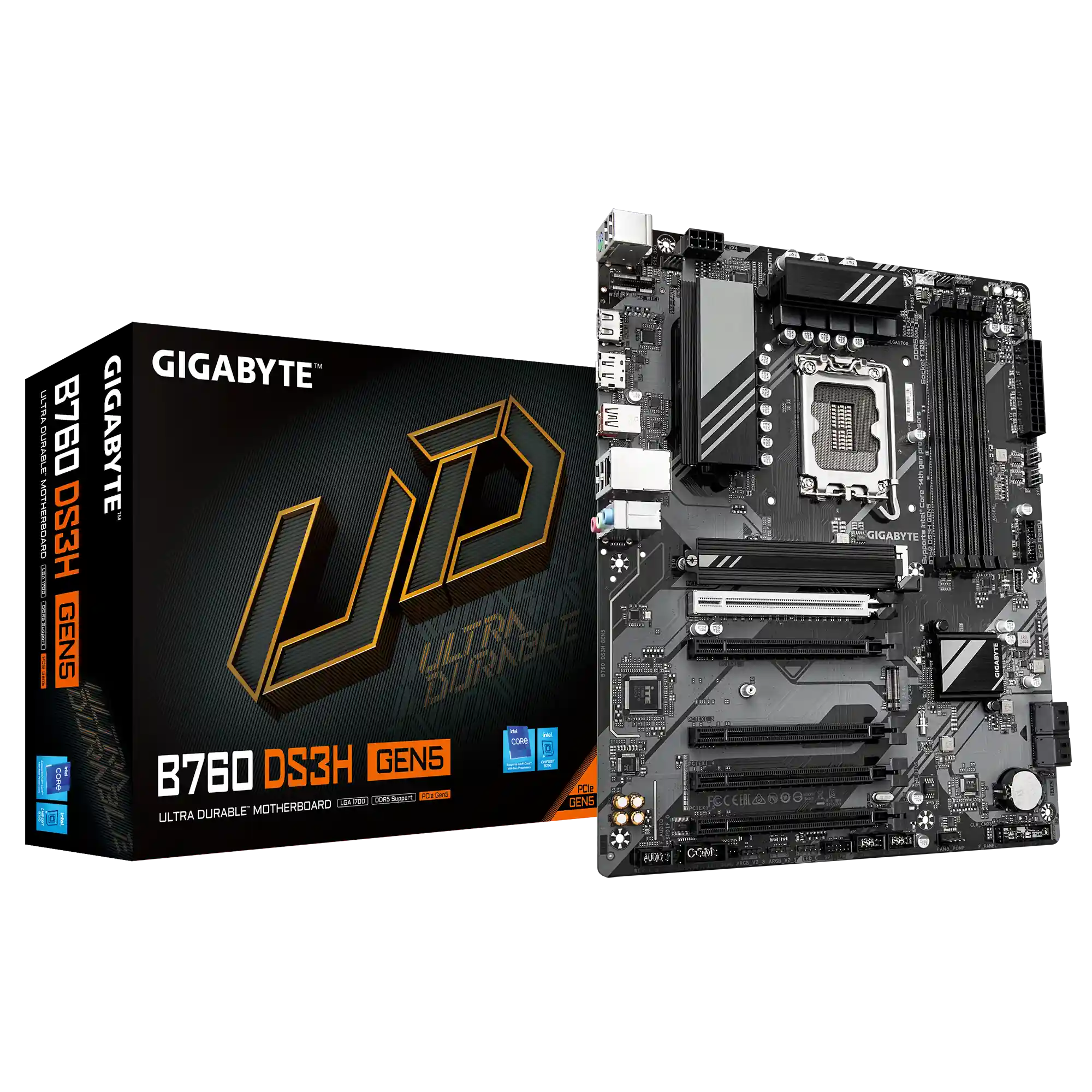

GIGABYTE B760M DS3H GEN5 Motherboard – LGA1700, DDR5, PCIe 5.0, Dual M.2 | Buy in Iraq | Alfarah Store
Available now in Iraq at Alfarah Store. This GIGABYTE B760M DS3H GEN5 motherboard is built for gamers, PC builders, and productivity users, delivering support for Intel Core 14th/13th/12th Gen processors on the Intel B760 chipset in a compact Micro-ATX form factor. With a 6+2+1 Phases Hybrid VRM Design on a 6-layer, PCIe 5.0-ready PCB, Dual Channel DDR5 memory across 4 DIMMs with OC support up to DDR5-7600, and dual PCIe 4.0 x4 M.2 slots, this board delivers strong next-gen storage performance and stable power delivery. A PCIe 5.0 x16 slot with PCIe UD Slot armor and EZ-Latch, 2.5GbE LAN, and Hi-Fi 8-channel audio round out a reliable, well-equipped build, while RGB Fusion with multiple addressable headers adds a personalized touch for Baghdad, Erbil, Basra, and across Iraq.
Specifications:
| Feature |
Details |
| Brand / Model |
GIGABYTE B760M DS3H GEN5 |
| Socket |
LGA 1700 |
| Chipset |
Intel B760 |
| CPU Support |
Intel Core 14th/13th/12th Gen |
| Form Factor |
Micro-ATX |
| Memory |
4x DDR5 DIMM slots, dual channel, up to 256GB (64GB/DIMM), up to DDR5-7600 (OC) |
| Expansion Slots |
1x PCIe 5.0 x16 (PCIe UD Slot, EZ-Latch), 2x PCIe 3.0 x1 |
| Storage |
2x PCIe 4.0 x4 M.2 connectors, 4x SATA 6Gb/s |
| RAID Support |
RAID 0, 1, 10 |
| Networking |
Realtek 2.5GbE LAN |
| Audio |
Realtek ALC897, 7.1/8-channel HD Audio, High-End Audio Capacitor, S/PDIF Out |

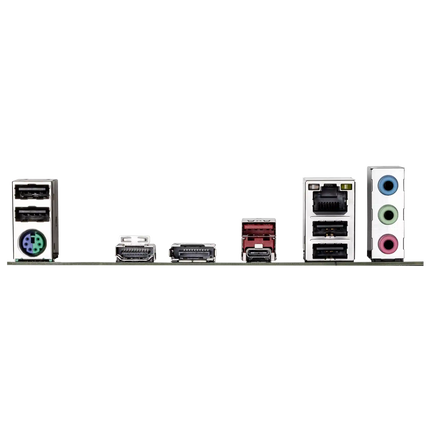

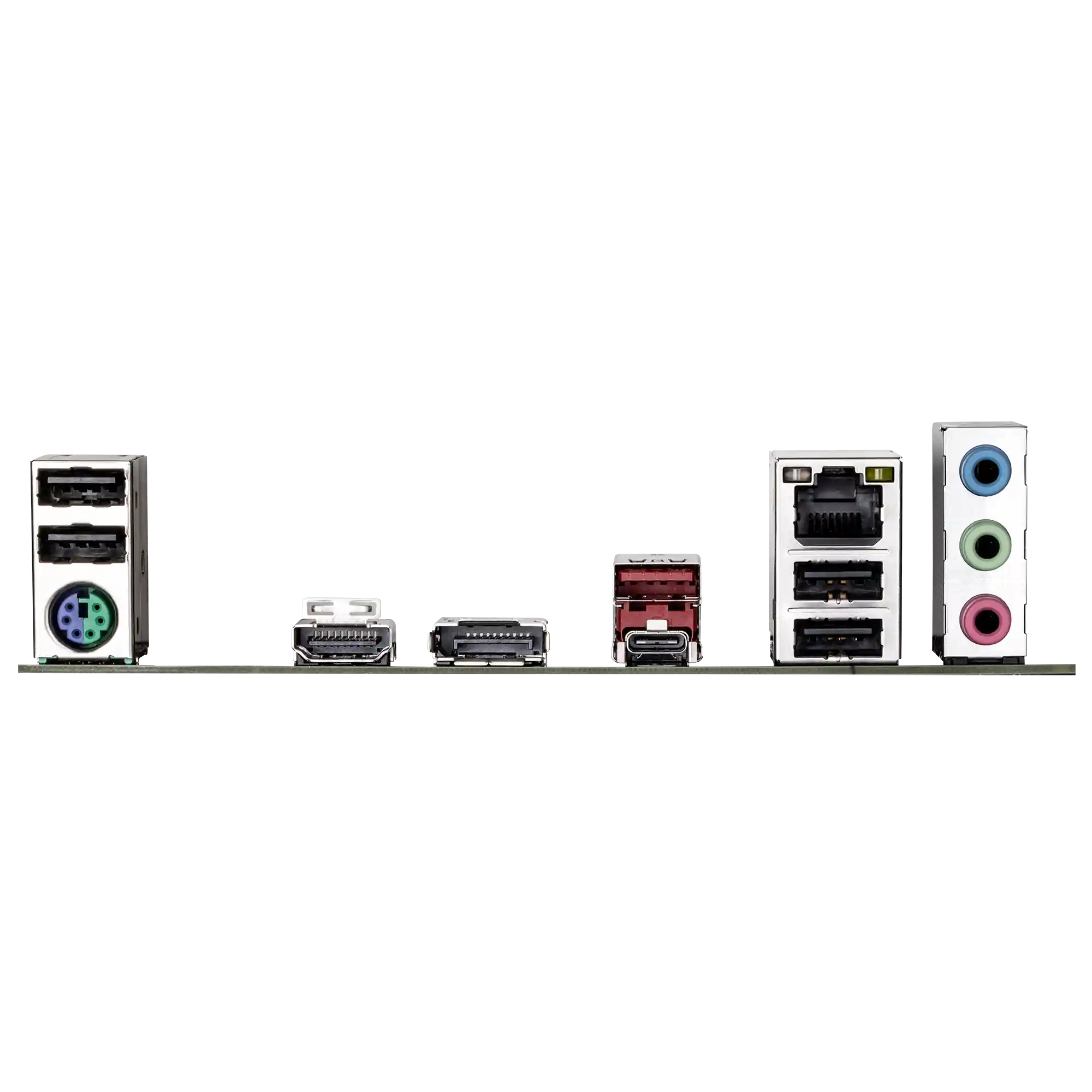

| USB |
1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0 |
| Video Outputs |
1x HDMI (4096x2160@60Hz), 2x DisplayPort, 1x D-Sub |
| Fan Headers |
CPU fan, 3x chassis fan |
| RGB Headers |
2x Addressable LED strip headers, 1x RGB LED strip header |
| VRM |
6+2+1 Phases Hybrid VRM Design |
| Power Connectors |
24-pin ATX, 8-pin CPU (UD Solid Pin) |
| Special Features |
Q-Flash Plus, PCIe EZ-Latch, Secure Mode DDR5 Voltage |
| OS Support |
Windows 11/10 64-bit |
Warranty: 1 Year available at Alfarah Store – Iraq
