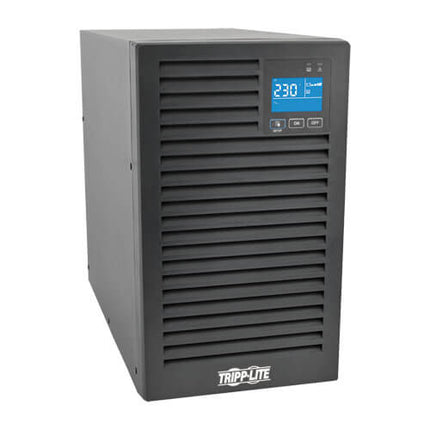

Tripp-Lite SmartOnline 230V 2kVA 1800W On-Line UPS, Tower, Network Card Options, LCD,SUINT2000XLCD

Tripp-Lite SmartOnline 230V 2kVA 1800W On-Line UPS, Tower, Network Card Options, LCD,SUINT2000XLCD
Tripp-Lite SmartOnline 230V 2kVA 1800W On-Line UPS, Tower, Network Card Options, LCD,SUINT2000XLCD

Tripp-Lite SmartOnline 230V 2kVA 1800W On-Line UPS, Tower, Network Card Options, LCD,SUINT2000XLCD

Regular price $680.00
/
Tax included. Shipping calculated at checkout.



OVERVIEW
UPC Code 037332177445
UPS Type Line-Interactive
OUTPUT
Output Volt Amp Capacity (VA) 1500
Output kVA Capacity (kVA) 1.5
Output Watt Capacity (Watts) 900
Nominal Voltage Details 230V nominal output in battery mode
Frequency Compatibility 50 / 60 Hz
Frequency Compatibility Details Automatic frequency selection
Output Voltage Regulation (Battery Mode) +/- 5%
UPS Output Receptacles (Surge Suppression Only) 6 UPS outlets, 2 surge-only outlets
Hot-Swap PDU options PDUBHV10 (2U / 8 C13 outlets)
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) PWM sine wave
Nominal Output Voltage(s) Supported 220V; 230V; 240V
Output Receptacles (8) C13
Individually Controllable Load Banks   No
INPUT
Rated input current (Maximum Load) 9A
Nominal Input Voltage(s) Supported 230V AC
UPS Input Connection Type C14 inlet
Input Circuit Breakers 10A fuse
UPS Input Cord Length (ft.) 6
UPS Input Cord Length (m) 1.8
Input Phase Single-Phase
BATTERY
Half Load Runtime (min.)   10 minutes (450 watts)
DC System Voltage (VDC) 24
Battery Recharge Rate (Included Batteries) Less than 8 hours from 10% to 90%
Internal UPS Replacement Battery Cartridge  RBC51 (requires 2)
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with a correction range from 170V to 280V
Overvoltage Correction   Input voltages between 247 and 280 are reduced by 15%
Undervoltage Correction   Input voltages between 170 and 207 are boosted by 18%
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Output load in watts, Battery voltage and Estimated runtime in minutes
Switches Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test
Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch
Audible Alarm Audible alarm indicates power-failure and low-battery conditions
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 455
UPS AC Suppression Response Time Instantaneous
UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
EMI / RFI AC Noise Suppression   Yes
PHYSICAL
Cooling Method Fan
Installation Form Factors Supported with Included Accessories Tower
Primary Form Factor Tower
Primary UPS Depth (mm) 394
Primary UPS Height (mm) 203
Primary UPS Width (mm) 146
Shipping Dimensions (hwd / cm) 28.70 x 23.11 x 49.02
Shipping Weight (kg) 12.34
UPS Power Module Dimensions (hwd, cm) 20.32 x 14.60 x 39.37
UPS Power Module Weight (kg) 11.20
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load)   79
Battery Mode BTU / Hr. (Full Load)   918
AC Mode Efficiency Rating (100% Load) 95%
COMMUNICATIONS
Communications Interface USB (HID enabled)
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Communications Cable USB cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer Time   6 milliseconds
Low Voltage Transfer to Battery Power (Setpoint) 170V (factory setting), 175V (medium setting), 180V (narrow setting)
High Voltage Transfer to Battery Power (Setpoint) 280V (factory setting), 275V (medium setting), 270V (narrow setting)
SPECIAL FEATURES
Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
High Availability UPS Features Hot swappable batteries
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
CERTIFICATIONS
UPS Certifications CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia)
UPS Certification Details EN62040-1, EN62040-2 Class A
WARRANTY
Product Warranty Period (International) 2-year limited warranty
